Manual Recline Option

If your TRU-Balance® 3 Power Positioning System is equipped with
the Manual Recline Option, you can adjust the seatback to angles
ranging from the minimum recline position (85° from the seat base) to
the maximum recline position (175° from the seat base). See figure
22. When the seat is reclined past 110°, the chair will be in full inhibit.
Returning the seat to an angle of less than 110° will restore power to
the motors.

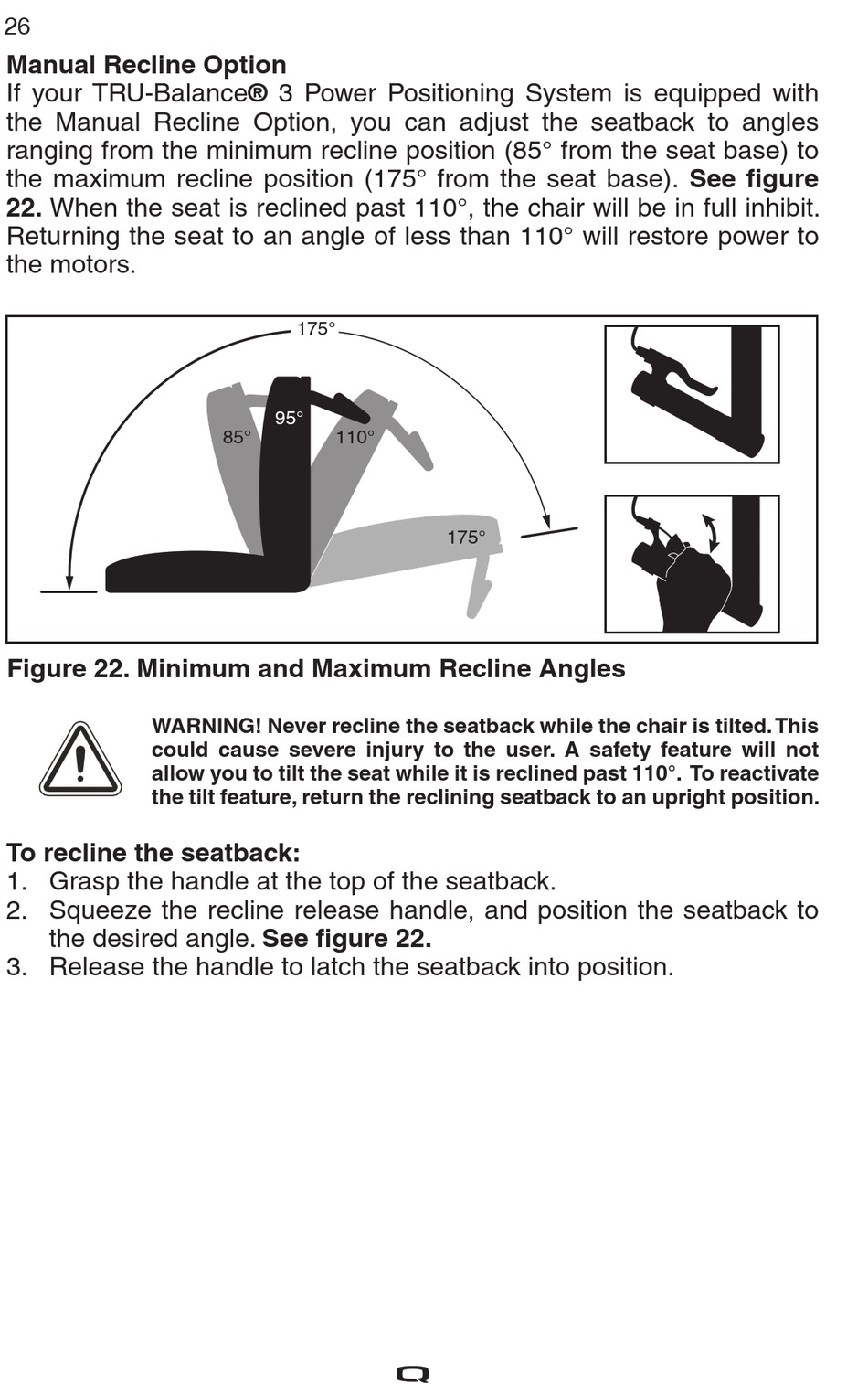

Figure 22. Minimum and Maximum Recline Angles
WARNING! Never recline the seatback while the chair is tilted. This
could cause severe injury to the user. A safety feature will not
allow you to tilt the seat while it is reclined past 110°. To reactivate
the tilt feature, return the reclining seatback to an upright position.
To recline the seatback:
1. Grasp the handle at the top of the seatback.
2. Squeeze the recline release handle, and position the seatback to
the desired angle. See figure 22.
3. Release the handle to latch the seatback into position.
175°
95°
85° 110°
175°
