E
INSTRUCTION MANUAL
E
INSTRUCTION MANUAL

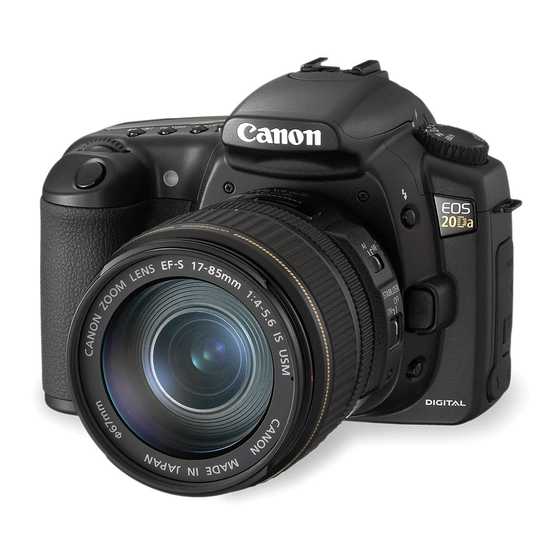

The EOS 20Da is a version of the EOS 20D designed for
astrophotography.
Please refer to the EOS 20D Instruction Manual provided for details
of the features common to the cameras.
Focusing Using the LCD Monitor
"Live View" mode enables you to adjust the focus manually while
watching the image live on the LCD monitor. Two modes are available:
FC 1, which provides 5x magnification (approximately 4% of the center
of the image will be displayed on the monitor) and FC 2, which provides
10x magnification (approximately 1% of the center of the image will be
displayed on the monitor).
Set the Mode Dial to <M>.
1
Select either "FC 1" or "FC 2".
2
Set the shutter speed to "buLb" and turn the <6> dial further to
select "FC 1" or "FC 2".
Display the live preview.
3
Press the shutter button completely.
The live preview will be displayed on the LCD monitor while the
shutter button is depressed completely.
Adjust the brightness of the live preview.
4
Let go of the shutter button and set the aperture and ISO speed.
Then check the live preview again that you have the appropriate
brightness level.
Manually adjust the focus.
5
Looking at the image on the monitor, turn the focusing ring until
the live preview appears sharpest.
Adjusting focus
The focus should be adjusted within 30 seconds. Taking longer
to adjust the focus will increase noise in the image.
Focus cannot be adjusted manually in "Live View" mode when
using the following lenses, which employ electronic manual
focusing:
EF50mm f/1.0L USM, EF85mm f/1.2L USM,
EF200mm f/1.8L USM, EF300mm f/2.8L USM,
EF400mm f/2.8L USM, EF400mm f/2.8L ll USM,
EF500mm f/4.5L USM, EF600mm f/4L USM,
EF1200mm f/5.6L USM, EF28-80mm f/2.8-4L USM
Remote operation from a computer using EOS Capture software
is not possible when the camera is set to FC 1 or FC 2 mode.
Using this camera for astrophotography
You cannot shoot photographs in FC 1 or FC 2 mode. When
you have adjusted the focus, reset the aperture and ISO
speed to take a photograph.
Wait 30 seconds after adjusting the focus before taking a
photograph. Taking a photograph immediately after adjusting the
focus will increase the noise in the image.
Long exposure times will increase noise. The following exposure
times or less are recommended:
Temperature/ISO
400
20°C/68°F
8 min.
0°C/32°F
16 min.
Sequential shooting will increase the noise in the images. When
shooting photographs in sequence, you should wait an interval of
time equivalent to the length of the previous exposure time
before taking the next shot.
Astrophotography mainly employs bulb exposures, and therefore
battery life is diminished. Please ensure that you are supplied
with spare batteries. If possible, we recommend that you use the
AC Adapter Kit (ACK-E2) supplied with the camera.
At normal temperature, a fully-charged BP-511A battery will
provide 2.5 hours of operation when shooting continuous bulb
exposures.
When taking long bulb exposures, stray light may enter the
viewfinder and affect the photograph. When you are shooting
without using the viewfinder, the eyepiece cover should be used.
The supplied video cable can be connected to the video out
terminal of the camera to enable an external monitor (TV, etc.) to
be used in adjusting the focus. For details, please see "Viewing
the Images on a TV" on p. 110 of the Instruction Manual.
When the camera is connected to a computer and EOS DIGITAL
software is used, the name of the camera will appear as "EOS
20D" in the window.
Using this camera for regular photography
This camera is approximately 2.5x more sensitive to hydrogen-
alpha light (656 nm) than the EOS 20D. Photographs of normal
subjects that reflect a lot of infra-red light taken with this camera will
therefore appear more red than they actually are. An infra-red
cutoff filter (commercially available) can be used to reduce this
redness.
It may be impossible to have this product repaired outside the
country of purchase.
CT1-7135-000
© CANON INC. 2005
G
BEDIENUNGSANLEITUNG
E
INSTRUCTION MANUAL
Die EOS 20Da ist eine Sonderausführung des Modells EOS 20D,
die speziell für die Astrofotografie konzipiert ist.
Die Einzelheiten zu den gemeinsamen Produktmerkmalen beider
Kameramodelle finden Sie in der Bedienungsanleitung der EOS 20D.
Scharfstellen mit dem LCD-Monitor
Mit dem „Live-Vorschau"-Modus können Sie das Bild manuell scharf
stellen, während Sie es „live" auf dem LCD-Monitor betrachten. Zwei
verschiedene Modi sind verfügbar: Der FC 1-Modus mit 5-facher
Vergrößerung (ca. 4% der Bildfläche aus dem Bildzentrum werden auf
dem Monitor angezeigt) und der FC 2-Modus mit 10-facher
Vergrößerung (ca. 1% der Bildfläche aus dem Bildzentrum werden auf
dem Monitor angezeigt).
Stellen Sie das Modus-Wahlrad auf <M>.
1
Wählen Sie entweder „FC 1" oder „FC 2".
2
Stellen Sie die Verschlusszeit auf „buLb", und drehen Sie das
Rad <6> weiter, um „FC 1" oder „FC 2" auszuwählen.
Zeigen Sie die Live-Vorschau an.
3
Drücken Sie den Auslöser vollständig durch.
Auf dem LCD-Monitor wird die Live-Vorschau angezeigt,
während Sie den Auslöser vollständig drücken.
Stellen Sie die Helligkeit der Live-Vorschau ein.
4
Lassen Sie den Auslöser wieder los, und stellen Sie Blende und
ISO-Empfindlichkeit ein. Überprüfen Sie erneut in der Live-
Vorschau, ob die richtige Helligkeit eingestellt ist.
Stellen Sie die Schärfe manuell ein.
5
Betrachten Sie das Bild auf dem Monitor, und drehen Sie am
Entfernungsring, bis in der Live-Vorschau die maximale Schärfe
angezeigt wird.
Einstellen der Schärfe
Die Schärfe sollte innerhalb von 30 Sekunden eingestellt
werden. Wenn Sie mehr Zeit zum Scharfstellen benötigen,
verstärkt sich das Bildrauschen.
Bei den folgenden Objektiven, mit denen Sie das Bild
elektronisch manuell scharf stellen können, kann die Schärfe
nicht im „Live-Vorschau"-Modus manuell eingestellt werden:
EF50mm 1:1,0L USM, EF85mm 1:1,2L USM,
EF200mm 1:1,8L USM, EF300mm 1:2,8L USM,
EF400mm 1:2,8L USM, EF400mm 1:2,8L ll USM,
EF500mm 1:4,5L USM, EF600mm 1:4L USM,
EF1200mm 1:5,6L USM, EF28-80mm 1:2,8-4L USM
Die Fernbedienung von einem Computer aus mit der EOS
Capture-Software ist nicht möglich, wenn die Kamera auf den
FC 1- oder FC 2-Modus eingestellt ist.
Verwendung dieser Kamera für die Astrofotografie
Im FC 1- oder FC 2-Modus können keine Fotos
aufgenommen werden. Wenn Sie die Schärfe eingestellt
haben, stellen Sie Blende und ISO-Empfindlichkeit zum
Aufnehmen eines Fotos erneut ein.
(C.Fn-02-0)
Warten Sie nach dem Einstellen der Schärfe 30 Sekunden,
800
bevor Sie ein Foto aufnehmen. Wenn Sie sofort nach dem
4 min.
Einstellen der Schärfe fotografieren, verstärkt sich das
Bildrauschen.
8 min.
Durch lange Belichtungszeiten verstärkt sich das Bildrauschen.
Es wird empfohlen, die folgenden Belichtungszeiten oder noch
kürzere Zeiten zu verwenden:
Temperatur/ISO
20°C
0°C
Bei mehreren Aufnahmen in Folge erhöht sich das Bildrauschen.
Wenn Sie mehrere Fotos hintereinander aufnehmen, sollten Sie
zwischen den einzelnen Aufnahmen eine Wartezeit einhalten,
die der Belichtungszeit der vorherigen Aufnahme entspricht.
Bei der Astrofotografie werden die Fotos vor allem mit
Langzeitbelichtung aufgenommen. Dadurch verringert sich die
Lebensdauer der Akkus. Sorgen Sie dafür, dass Sie immer
Ersatz-Akkus dabei haben. Es wird empfohlen, dass Sie das
mitgelieferte Netzteil ACK-E2 verwenden.
Für Langzeitaufnahmen unter Normaltemperatur reicht ein
vollständig aufgeladener Akku vom Typ BP-511A für ca. 2,5
Stunden Betrieb.
Bei Langzeitaufnahmen kann Streulicht in den Sucher eindringen
und die Aufnahme beeinträchtigen. Wenn Sie ohne Sucher
fotografieren, verschließen Sie den Sucher mit der
Okularabdeckung.
Um die Bildschärfe mit Hilfe eines externen Monitors (z.B.
Fernsehgerät) einzustellen, schließen Sie das mitgelieferte
Videokabel am Videoausgang der Kamera und an dem
entsprechenden Anzeigegerät an. Einzelheiten dazu finden Sie
unter „Anzeigen von Bildern auf dem Fernsehbildschirm"
(S. 110) in der Bedienungsanleitung.
Wenn die Kamera an einem Computer angeschlossen ist und
Sie die EOS DIGITAL-Software verwenden, wird die Kamera in
dem Fenster unter dem Namen „EOS 20D" angezeigt.
Verwenden der Kamera zum normalen Fotografieren
Diese Kamera ist gegenüber H-Alpha-Licht (656 nm) ca. 2,5-mal
empfindlicher als die EOS 20D. Auf den Fotos, die mit dieser
Kamera aufgenommen werden, erscheinen normale Motive, die
viel Infrarotlicht reflektieren, mit einem Rotstich. Um den Rotstich
zu reduzieren, können Sie einen handelsüblichen Infrarotfilter
verwenden.
Die Reparatur dieses Produkts außerhalb des Landes, in dem es
gekauft wurde, ist u.U. nicht möglich.
PRINTED IN JAPAN
IMPRIMÉ AU JAPON
IMPRESO EN JAPÓN
(C.Fn-02-0)
400
800
8 Min.
4 Min.
16 Min.
8 Min.
F
MODE D'EMPLOI
E
INSTRUCTION MANUAL
L'EOS 20Da est une version de l'EOS 20D conçue pour
l'astrophotographie.
Pour plus d'informations sur les fonctions communes aux appareils
photo, veuillez consulter le mode d'emploi EOS 20D fourni.
Mise au point avec l'écran LCD
Le mode « aperçu en direct » permet de faire une mise au point
manuelle en regardant l'image en direct sur l'écran LCD. Deux modes
sont disponibles : FC 1, qui permet un agrandissement 5x (environ 4%
de la partie centrale de l'image s'affichera sur l'écran) et FC 2, qui
permet un agrandissement 10x (environ 1% de la partie centrale de
l'image s'affichera sur l'écran).
Réglez la molette de sélection des modes sur <M>.
1
Sélectionnez « FC 1 » ou « FC 2 ».
2
Réglez la vitesse de prise de vue sur « buLb » et tournez encore
la molette <6> pour sélectionner « FC 1 » ou « FC 2 ».
Affichez l'aperçu en direct.
3
Appuyez à fond sur le bouton de prise de vue.
L'aperçu en direct s'affichera sur l'écran LCD tant que le bouton
de prise de vue sera maintenu complètement enfoncé.
Réglez la luminosité de l'aperçu en direct.
4
Relâchez le bouton de prise de vue et réglez l'ouverture et la
sensibilité ISO. Revérifiez ensuite l'aperçu en direct pour vous
assurer d'avoir le bon niveau de luminosité.
Faites une mise au point manuelle.
5
En regardant l'image sur l'écran, tournez la bague de mise au
point jusqu'à ce que l'aperçu en direct s'affiche avec une netteté
optimale.
Faire la mise au point
La mise au point doit être effectuée dans les 30 secondes qui
suivent. Si vous mettez plus de temps à faire la mise au point, le
bruit de l'image augmentera.
Il n'est pas possible de faire la mise au point manuelle en mode
« aperçu en direct » avec les objectifs suivants, qui fonctionnent
par mise au point manuelle à asservissement électronique :
EF50mm f/1,0L USM, EF85mm f/1,2L USM,
EF200mm f/1,8L USM, EF300mm f/2,8L USM,
EF400mm f/2,8L USM, EF400mm f/2,8L ll USM,
EF500mm f/4,5L USM, EF600mm f/4L USM,
EF1200mm f/5,6L USM, EF28-80mm f/2,8-4L USM
La commande à distance à partir d'un ordinateur avec le logiciel
EOS Capture n'est pas possible lorsque l'appareil photo est
réglé sur le mode FC 1 ou FC 2.
Utilisation de cet appareil photo pour
l'astrophotographie
Il n'est pas possible de prendre des photos en mode FC 1 ou
FC 2. Une fois la mise au point effectuée, réglez à nouveau
l'ouverture et la sensibilité ISO pour prendre une photo.
Attendez 30 secondes après la mise au point pour prendre la
photo. Il y aura plus de bruit dans l'image si vous prenez la photo
immédiatement après la mise au point.
Il y aura plus de bruit avec les temps d'exposition prolongés.
Nous recommandons les temps d'exposition suivants ou
inférieurs.
Température/ISO
400
20 °C
8 min
0 °C
16 min
Avec les prises de vues successives, il y aura plus de bruit sur
les images. Lorsque vous prenez des photos successives, vous
devez attendre un temps équivalent au temps d'exposition de la
prise de vue précédente avant de passer à la suivante.
L'astrophotographie s'effectuant principalement par expositions
longue durée, l'autonomie de la batterie s'en trouve réduite.
Assurez-vous d'avoir des batteries de rechange disponibles.
Nous recommandons l'utilisation, lorsque possible, du kit
adaptateur secteur (ACK-E2) fourni avec l'appareil photo.
À température normale, une batterie BP-511A complètement
chargée permettra 2,5 heures de fonctionnement pour les
prises de vues continues avec exposition longue durée.
Lors d'une exposition longue durée, de la lumière parasite risque
de pénétrer dans le viseur et d'affecter la photo. Lors d'une prise
de vue au moyen du viseur, le volet d'oculaire être utilisé.
Le câble vidéo fourni peut être connecté à la borne de sortie
vidéo de l'appareil photo afin de permettre l'utilisation d'un écran
externe (téléviseur, etc.) pour effectuer la mise au point. Pour
plus de détails, voir « Affichage des images sur un téléviseur », à
la page 110 du mode d'emploi.
Lorsque l'appareil photo est connecté à un ordinateur et que le
logiciel EOS DIGITAL est utilisé, le nom de l'appareil photo
apparaît en tant que « EOS 20D » dans la fenêtre.
Utilisation de cet appareil photo pour la photographie
ordinaire
Cet appareil photo est environ 2,5 fois plus sensible à la lumière
hydrogène alpha (656 nm) que l'EOS 20D. Par conséquent, avec
cet appareil photo les photos de sujets ordinaires réfléchissant
beaucoup de lumière infrarouge apparaîtront plus rouges que la
réalité. On peut utiliser un filtre infrarouge (disponible sur le
marché) pour réduire cet excès de rouge.
Il se peut qu'il soit impossible de faire réparer cet appareil à
l'extérieur du pays où il a été acheté.
(C.Fn-02-0)
800
4 min
8 min

Werbung

loading

Inhaltszusammenfassung für Canon EOS 20Da

  • Seite 1 MODE D’EMPLOI INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL The EOS 20Da is a version of the EOS 20D designed for Die EOS 20Da ist eine Sonderausführung des Modells EOS 20D, L’EOS 20Da est une version de l’EOS 20D conçue pour astrophotography.
  • Seite 2 INSTRUCCIONES MANUALE DI ISTRUZIONI INSTRUCTION MANUAL INSTRUCTION MANUAL La EOS 20Da es una versión de la EOS 20D diseñada para L’EOS 20Da è una versione dell’EOS 20D progettata per astrofotografía. l’astrofotografia. Consulte las instrucciones de la EOS 20D para más detalles sobre Per dettagli sulle caratteristiche comuni alle fotocamere, fare las características comunes de las cámaras.
