Thermalright TRUE Spirit 90 Direct Installationsanleitung Seite 7

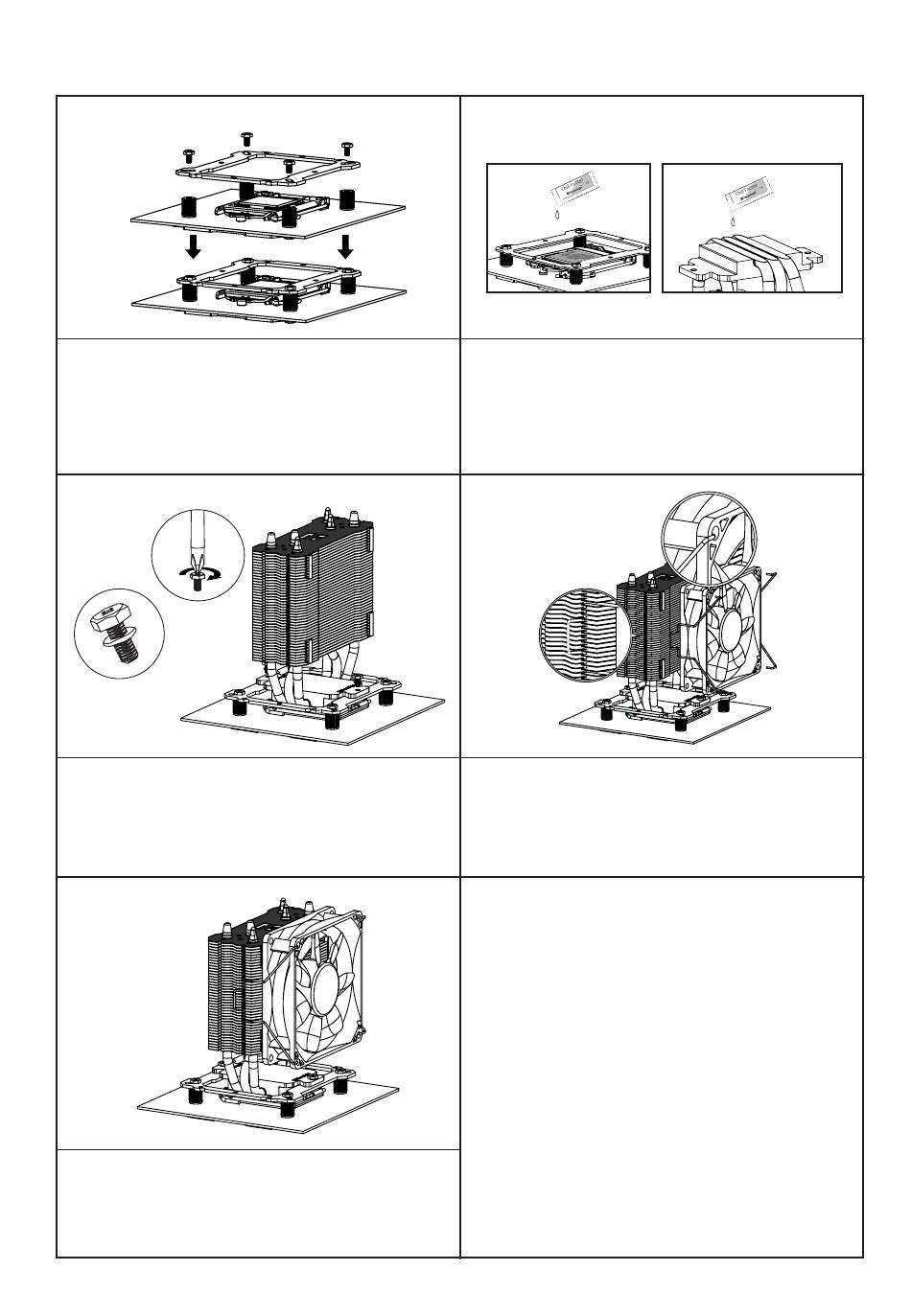

Step 5:
1
Step 5 : Anchoring Mount Installation
Place the Anchoring Mount on the Screw
Nuts. Use the four M3L6 Screws to fix the
Anchoring Mount on to the Screw Nuts.
Step 7:
Step 7: Easy Access
Place the Heatsink Body on top of the CPU.
And then use the two M3L7 Screws to secure the
Anchoring Mount"
Step 9:
Step 9: Installation completed
Plug in the fan connector to the CPU PWM Fan
socket on the motherboard. Installation complete.
The Ultimate Cooling Solutions!
4
2
3
Step 6:
Step 6 : Apply the Thermal Paste
Apply the Thermal Paste to the base of the heat-
sink and the surface of the CPU evenly. (A flat
edge, like a business card or an old credit card
would be beneficial in spreading the Thermal
Paste.)
Step 8:
Step 8: Fan Installation
Place the included TY-9225B onto the Heatsink
Body. And then secure it with the Fan Clips, by
pulling the Fan Clips to place the four ends at the
four holes on the TY-9225B.
