Caution
Installation should only be performed by qualified service personnel in
accordance with the National Electrical Code or applicable local codes.
Disassembly

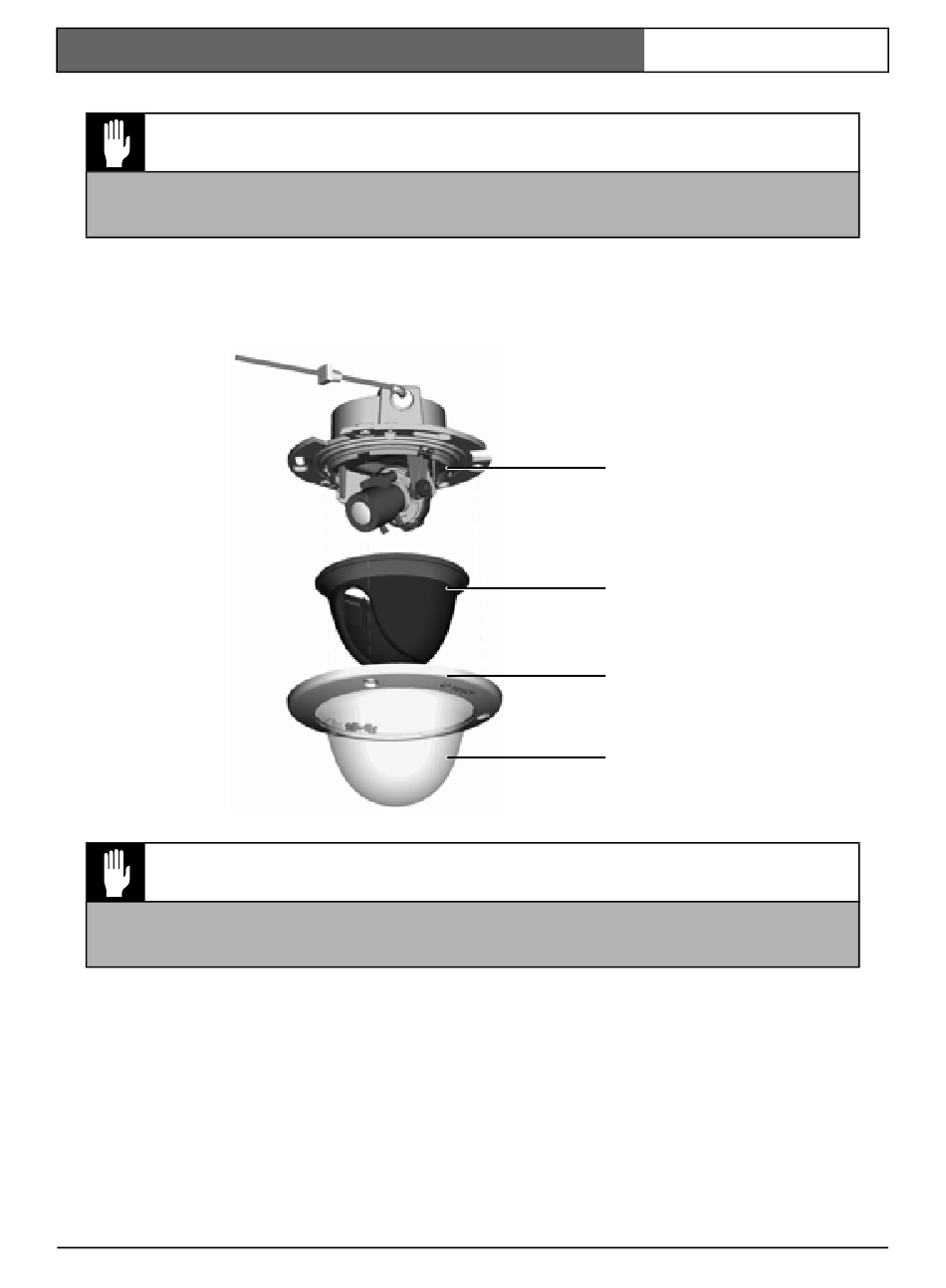

The camera/housing unit consists of the following parts:
Caution
The camera module is a sensitive device and must be handled carefully.
Do not drop when disassembling the unit.
To disasemble the unit proceed as follows:
• Using the special screwdriver, loosen the three tamper resistant screws
in the trim ring (the screws remain in place).
• Remove the trim ring with dome by pulling it off of the base.
• Remove the inner liner by pulling it off of the base.
Bosch Security Systems | 2008-08 | V1.1
| Installation Manual EN | 8
Camera module and
mounting base
Inner liner
Trim ring
Dome
