Tilt
Grasp top and bottom sides of the monitor screen with your
hands and adjust the tilt as desired (Figure TS.1).
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Place monitor face down on a non-abrasive surface. (Place the screen on a 55 mm/2.2 inch platform so that the stand is
parallel with the surface.) (Figure S.1)
4. Remove the 4 screws connecting the monitor to the stand and lift off the stand assembly (Figure S.2). The monitor is now
ready for mounting in an alternate manner.
5. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method. (100 mm pitch)
Caution: Please use the attached screws (4 pcs) when mounting. To fulfil the safety requirements the monitor must be
mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The
LCD monitor shall only be used with an approved arm (e.g. GS mark).
01_English

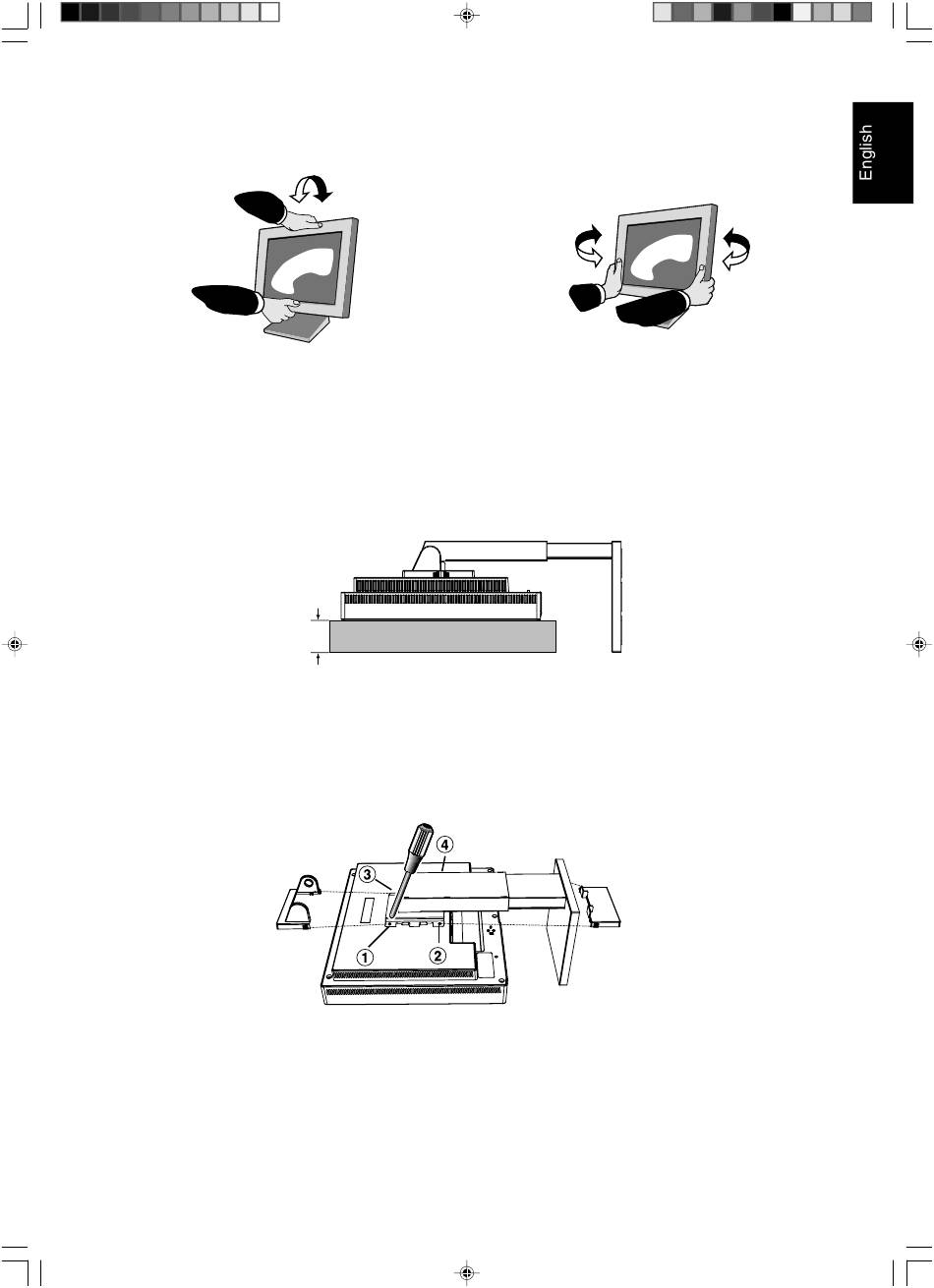

Figure TS.1
