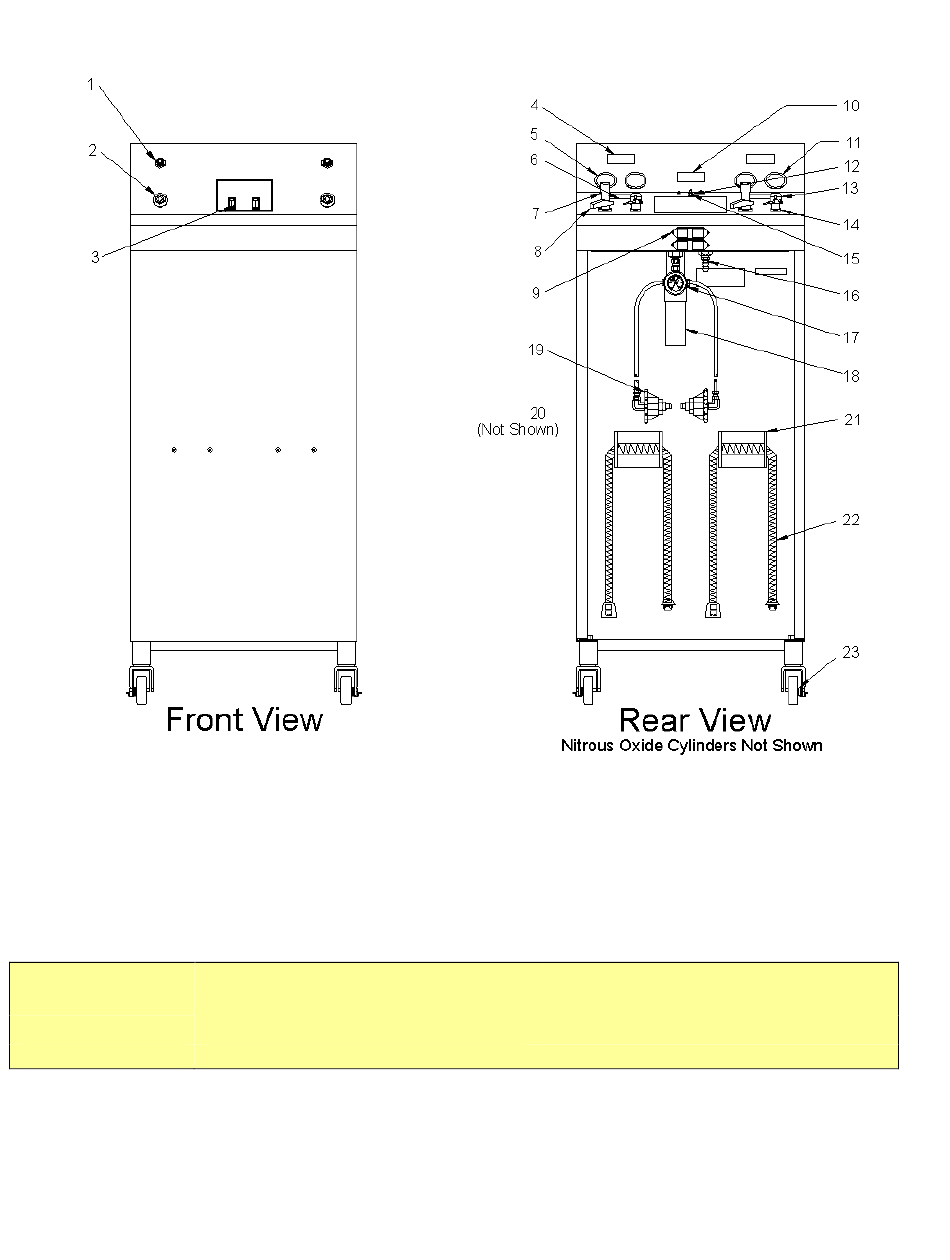

The ACC2 Cardiac Cryosurgical System
1. Probe Socket - Exhaust (2)
2. Probe Socket - Supply (2)
3. Digital TTI Socket (2)
4. Digital Probe Temperature Meter (2)
5. Line Pressure Gauge (2)
6. Digital Timer (2)
7. Temperature Control Valve (2)
8. Freeze/Defrost Control Valve (2)
Specifications
CAUTION: U.S. Federal law restricts this device to sale by or on the order of a physician.
9. Battery Compartment (2)
10. Digital Tissue Temperature Indicator
11. Exhaust Pressure Gauge (2)
12. Digital Temperature Indicator Switch
13. Maximum Freeze Control Valve (2)
14. ON/OFF Control Valve (2)
15. Main Meter Power Switch
16. Exhaust Nipple
ACC2 System
47" High (119.4cm), 19" Wide (48.25cm)
24" Deep (70cm)
Weight: 74lbs (35.8kg) without cylinders
Note: To convert psi to kg/sq cm, multiply by 0.07.
17. Filter Assembly - Pressure Gauge
18. Filter Assembly - Canister
19. Cylinder Valve (2)
20. Cylinder Yoke Assembly (2)
21. Cylinder Bracket (2)
22. Cylinder Strap (2)
23. Mobile Carrier - Casters (4)
Two 20lb. Nitrous Oxide Cylinders required
Digital Meters use Four 9Volt Alkaline Batteries
