Controls - Windsor COMMODORE 20 CMD20I Bedienungsanweisung

10
7
RECOVERY
DRAIN HOSE
SOLUTION
DRAIN HOSE
12
See Below
5
3
4
8
2
6
1
11
CMD20-I 86038160 04/03/07

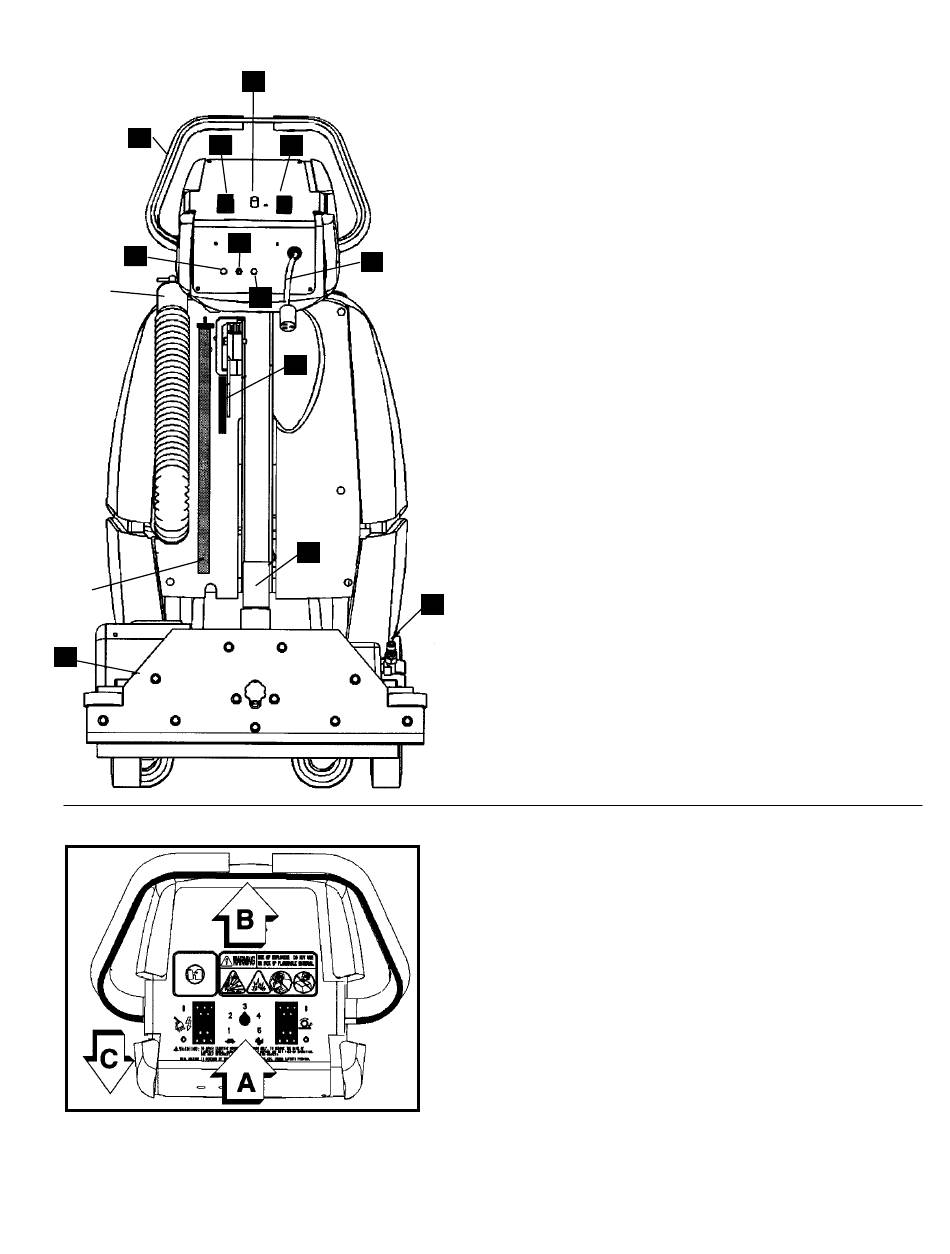

1. Brush/Vac Shoe Lift Lever – Raises and lowers both
brush and vac shoe.
2. Electrical Cord
3. Main Power Switch – Turns On and Off the vac
motor/pump and machine.
4. Brush/Solenoid Power Switch – Enables the brush
motor and solution spray (only when propelling).
5. Speed Control Knob – Adjusts the forward drive speed
of the machine. (See Below)
6. Drive Motor Circuit Breaker – 6 amp (115V), 3 amp
(230V), protects the drive motor mechanism.
7. Vac Motor Circuit Breaker – 15 amp (115V), 8 amp
(230V), protects the vacuum motor.
8. Brush Motor Circuit Breaker – 8 amp (115V), 3 amp
(230V), protect the brush motor.
9. Solution Accessory Tool Hookup – Used for various
auxiliary cleaning tools.
10. Main Handle
9
11. Vacuum Accessory Tool Hook Up – To use
accessory tool, remove hose from vac shoe and attach
to accessory tool adapter. 86089080 (PRV NO. 78211)
12. Vac Shoe Assembly
DRIVE CONTROLS
A.
The speed the machine will travel is regulated by the
knob located on the center of control panel. Turn the
knob to the right to increase the speed of the machine
and to the left to decrease the speed of the machine.
B.
Squeezing the control lever will propel the machine
forward at the selected speed. Machine will also engage
the brush and spray if #4 is activated.
C.
To move the machine backwards release the control
lever and then pull back on main bundle (NOTE: The
machine drive assembly is disengaged). Do not pull back
on the control.

CONTROLS

11
