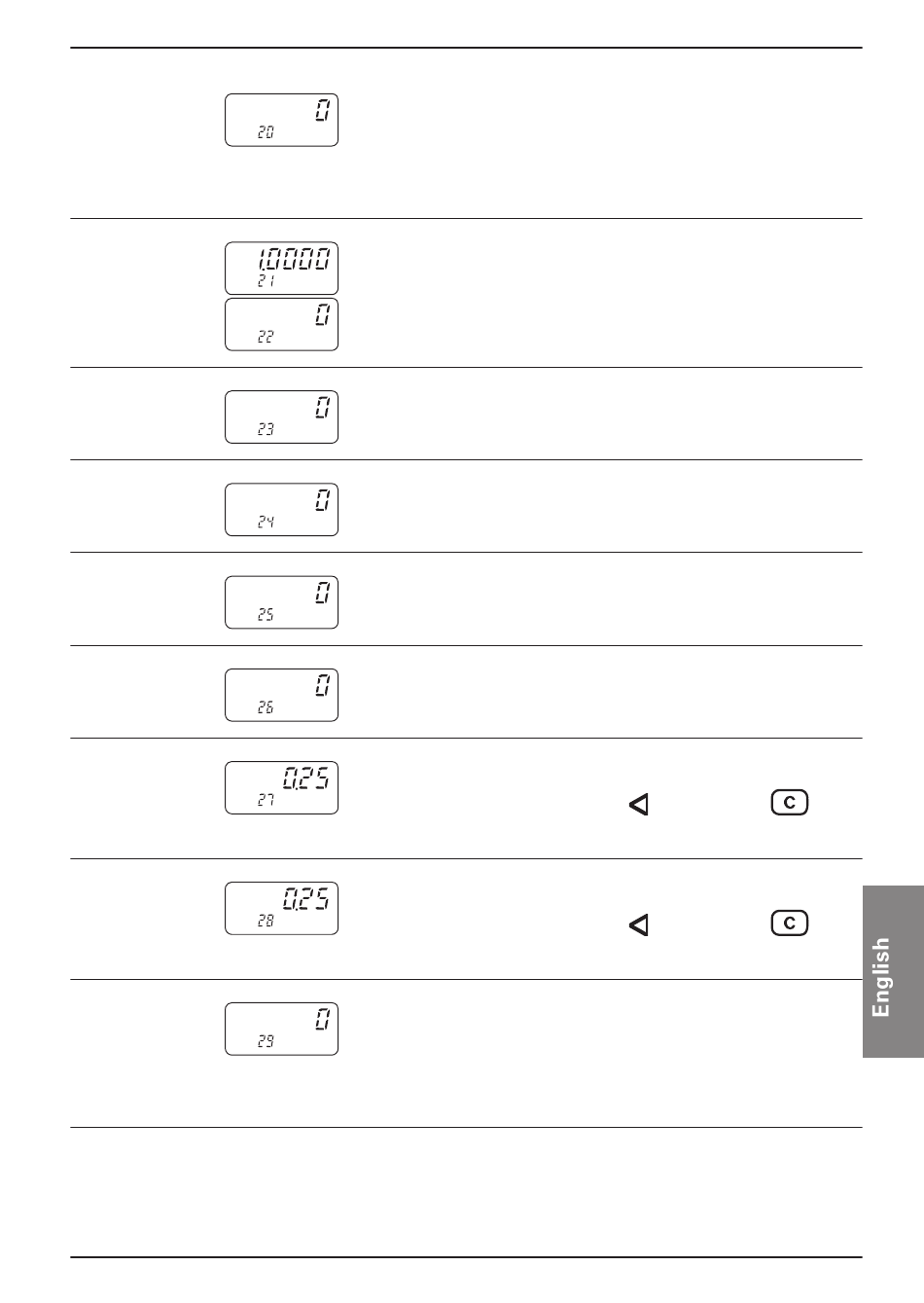

Count; Preset - Baumer NE131 Betriebsanleitung

Multifunction
Scaling factor
Mode

Preset

mode*
Automatic
reset
C-key
clearing
Preset
confirmation
Sign. duration
end contact
Sign. duration
Leader cont.*
Signal logic
with preset is
reached
Configuration menu
0 Impulse meter
1 Impulse meter with totalisator ∑
2 Time measurement
3 Time measurement with time totalizer ∑
0.0001
9999.99 (max.)
0 adding
1 subtracting
0 Progr. preselection
1 Trailing preselection P1 = differ. prior to P2
0 yes
1 no
0 released
1 locked
0 with reset
1 without reset
0.01 (s)
99.99 (s)
Latch (permanent signal)
0.01 (s)
99.99 (s)
Latch (permanent signal)
0 Normally open
1 Normally closed
2 P1 normally closed, P2 normally open*
3 P1 normally open, P2 normally closed*
www.baumer.com
NE131
0,1,2,3...P1...P2*
P2*...P1...3.2.1,0
P1 followed by P2
At end contact

Count

to enter briefly press
then press
to enter briefly press
then press
.
.
