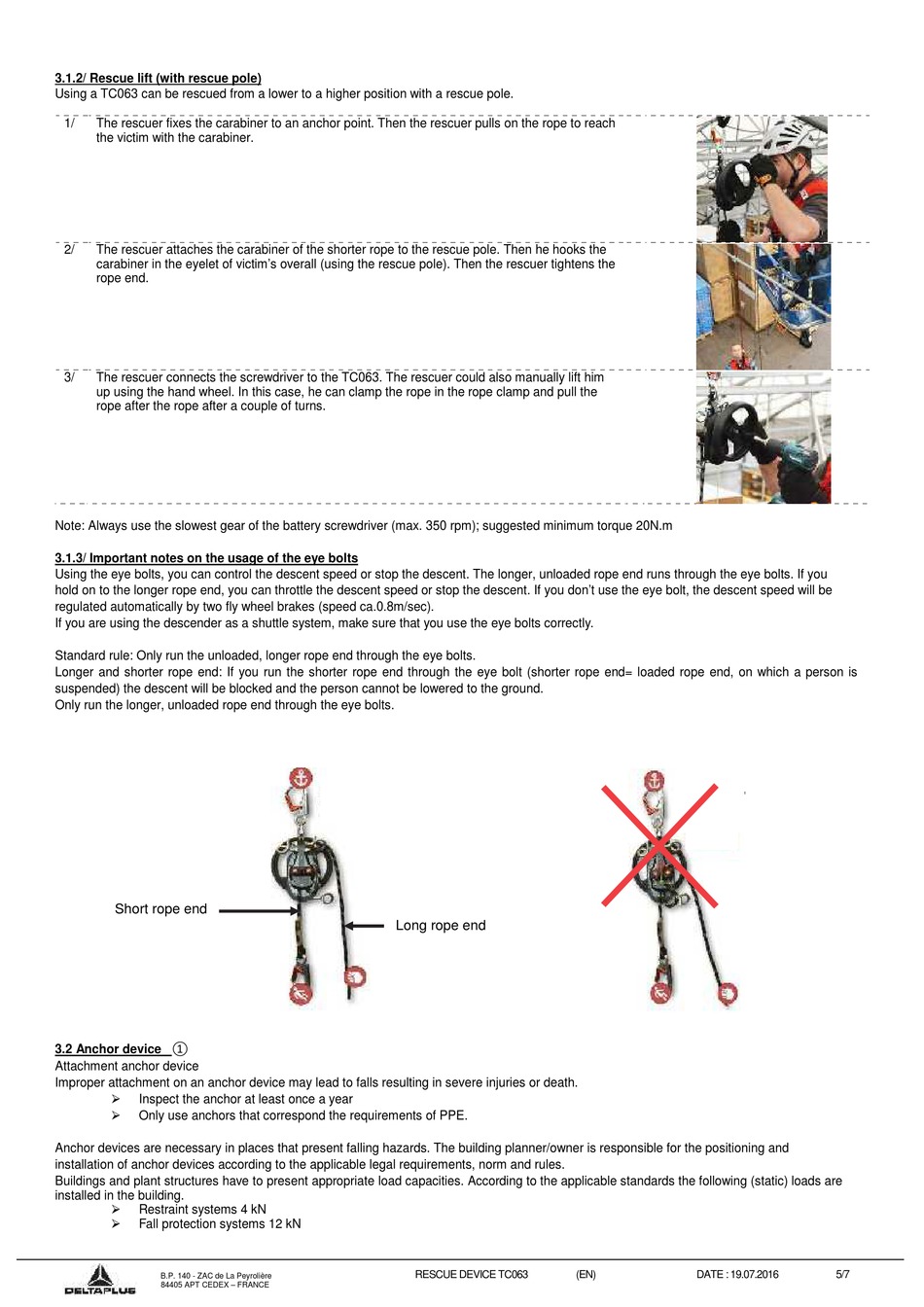

3.1.2/ Rescue lift (with rescue pole)
Using a TC063 can be rescued from a lower to a higher position with a rescue pole.
1/
The rescuer fixes the carabiner to an anchor point. Then the rescuer pulls on the rope to reach
the victim with the carabiner.
2/
The rescuer attaches the carabiner of the shorter rope to the rescue pole. Then he hooks the
carabiner in the eyelet of victim's overall (using the rescue pole). Then the rescuer tightens the
rope end.
3/
The rescuer connects the screwdriver to the TC063. The rescuer could also manually lift him
up using the hand wheel. In this case, he can clamp the rope in the rope clamp and pull the
rope after the rope after a couple of turns.
Note: Always use the slowest gear of the battery screwdriver (max. 350 rpm); suggested minimum torque 20N.m
3.1.3/ Important notes on the usage of the eye bolts
Using the eye bolts, you can control the descent speed or stop the descent. The longer, unloaded rope end runs through the eye bolts. If you
hold on to the longer rope end, you can throttle the descent speed or stop the descent. If you don't use the eye bolt, the descent speed will be
regulated automatically by two fly wheel brakes (speed ca.0.8m/sec).
If you are using the descender as a shuttle system, make sure that you use the eye bolts correctly.
Standard rule: Only run the unloaded, longer rope end through the eye bolts.
Longer and shorter rope end: If you run the shorter rope end through the eye bolt (shorter rope end= loaded rope end, on which a person is
suspended) the descent will be blocked and the person cannot be lowered to the ground.
Only run the longer, unloaded rope end through the eye bolts.
Short rope end
3.2 Anchor device ①
Attachment anchor device
Improper attachment on an anchor device may lead to falls resulting in severe injuries or death.
Inspect the anchor at least once a year
Only use anchors that correspond the requirements of PPE.
Anchor devices are necessary in places that present falling hazards. The building planner/owner is responsible for the positioning and
installation of anchor devices according to the applicable legal requirements, norm and rules.
Buildings and plant structures have to present appropriate load capacities. According to the applicable standards the following (static) loads are
installed in the building.
Restraint systems 4 kN
Fall protection systems 12 kN
B.P. 140 - ZAC de La Peyrolière
84405 APT CEDEX – FRANCE
Long rope end
RESCUE DEVICE TC063
(EN)
DATE : 19.07.2016
5/7
