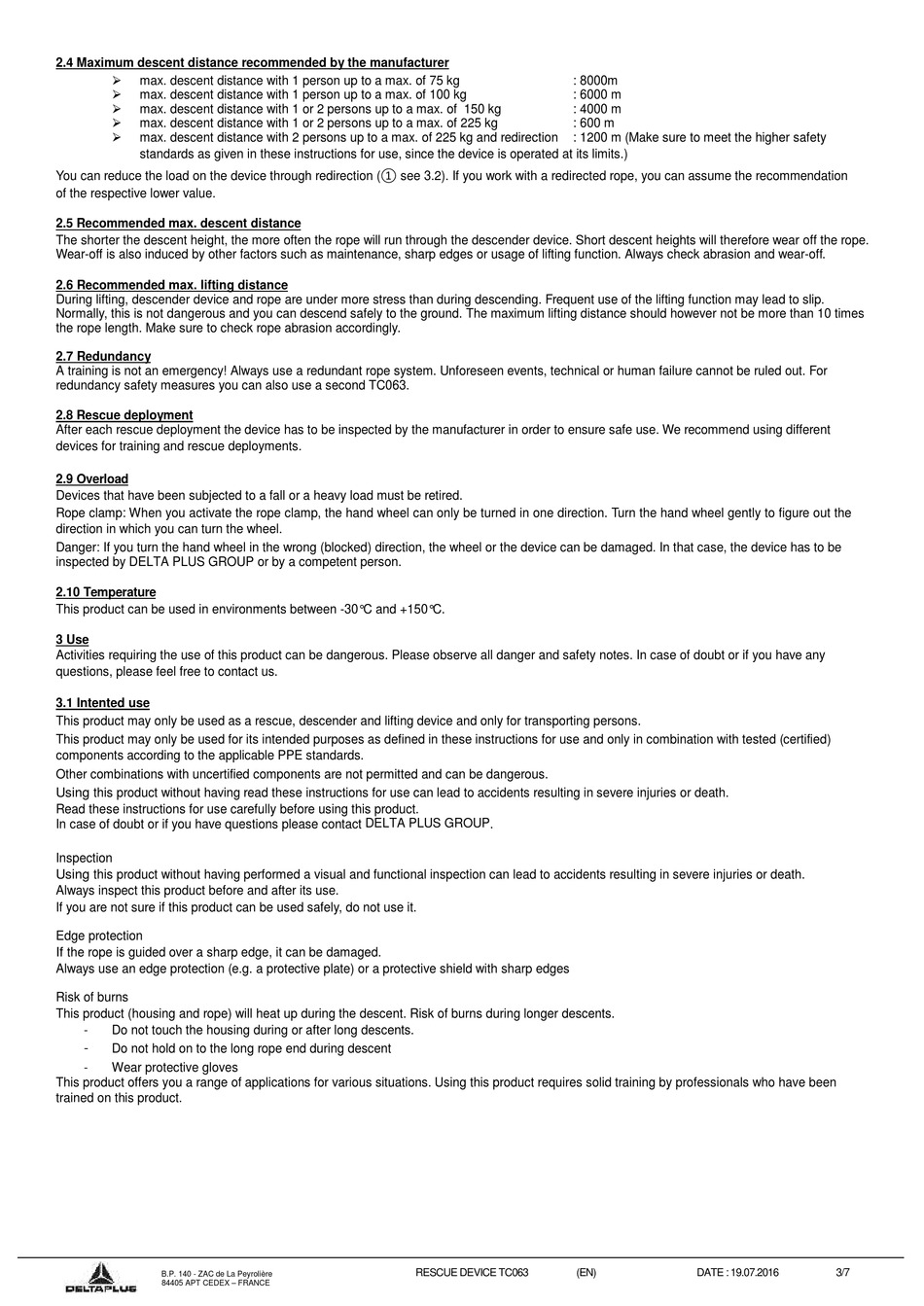

2.4 Maximum descent distance recommended by the manufacturer
max. descent distance with 1 person up to a max. of 75 kg
max. descent distance with 1 person up to a max. of 100 kg
max. descent distance with 1 or 2 persons up to a max. of 150 kg
max. descent distance with 1 or 2 persons up to a max. of 225 kg
max. descent distance with 2 persons up to a max. of 225 kg and redirection
standards as given in these instructions for use, since the device is operated at its limits.)
You can reduce the load on the device through redirection (① see 3.2). If you work with a redirected rope, you can assume the recommendation
of the respective lower value.
2.5 Recommended max. descent distance
The shorter the descent height, the more often the rope will run through the descender device. Short descent heights will therefore wear off the rope.
Wear-off is also induced by other factors such as maintenance, sharp edges or usage of lifting function. Always check abrasion and wear-off.
2.6 Recommended max. lifting distance
During lifting, descender device and rope are under more stress than during descending. Frequent use of the lifting function may lead to slip.
Normally, this is not dangerous and you can descend safely to the ground. The maximum lifting distance should however not be more than 10 times
the rope length. Make sure to check rope abrasion accordingly.
2.7 Redundancy
A training is not an emergency! Always use a redundant rope system. Unforeseen events, technical or human failure cannot be ruled out. For
redundancy safety measures you can also use a second TC063.
2.8 Rescue deployment
After each rescue deployment the device has to be inspected by the manufacturer in order to ensure safe use. We recommend using different
devices for training and rescue deployments.
2.9 Overload
Devices that have been subjected to a fall or a heavy load must be retired.
Rope clamp: When you activate the rope clamp, the hand wheel can only be turned in one direction. Turn the hand wheel gently to figure out the
direction in which you can turn the wheel.
Danger: If you turn the hand wheel in the wrong (blocked) direction, the wheel or the device can be damaged. In that case, the device has to be
inspected by DELTA PLUS GROUP or by a competent person.
2.10 Temperature
This product can be used in environments between -30°C and +150°C.
3 Use
Activities requiring the use of this product can be dangerous. Please observe all danger and safety notes. In case of doubt or if you have any
questions, please feel free to contact us.
3.1 Intented use
This product may only be used as a rescue, descender and lifting device and only for transporting persons.
This product may only be used for its intended purposes as defined in these instructions for use and only in combination with tested (certified)
components according to the applicable PPE standards.
Other combinations with uncertified components are not permitted and can be dangerous.
Using this product without having read these instructions for use can lead to accidents resulting in severe injuries or death.
Read these instructions for use carefully before using this product.
In case of doubt or if you have questions please contact DELTA PLUS GROUP .
Inspection
Using this product without having performed a visual and functional inspection can lead to accidents resulting in severe injuries or death.
Always inspect this product before and after its use.
If you are not sure if this product can be used safely, do not use it.
Edge protection
If the rope is guided over a sharp edge, it can be damaged.
Always use an edge protection (e.g. a protective plate) or a protective shield with sharp edges
Risk of burns
This product (housing and rope) will heat up during the descent. Risk of burns during longer descents.
-
Do not touch the housing during or after long descents.
-
Do not hold on to the long rope end during descent
-
Wear protective gloves
This product offers you a range of applications for various situations. Using this product requires solid training by professionals who have been
trained on this product.
B.P. 140 - ZAC de La Peyrolière
84405 APT CEDEX – FRANCE
: 8000m
: 6000 m
: 4000 m
: 600 m
: 1200 m (Make sure to meet the higher safety
RESCUE DEVICE TC063
(EN)
DATE : 19.07.2016
3/7
