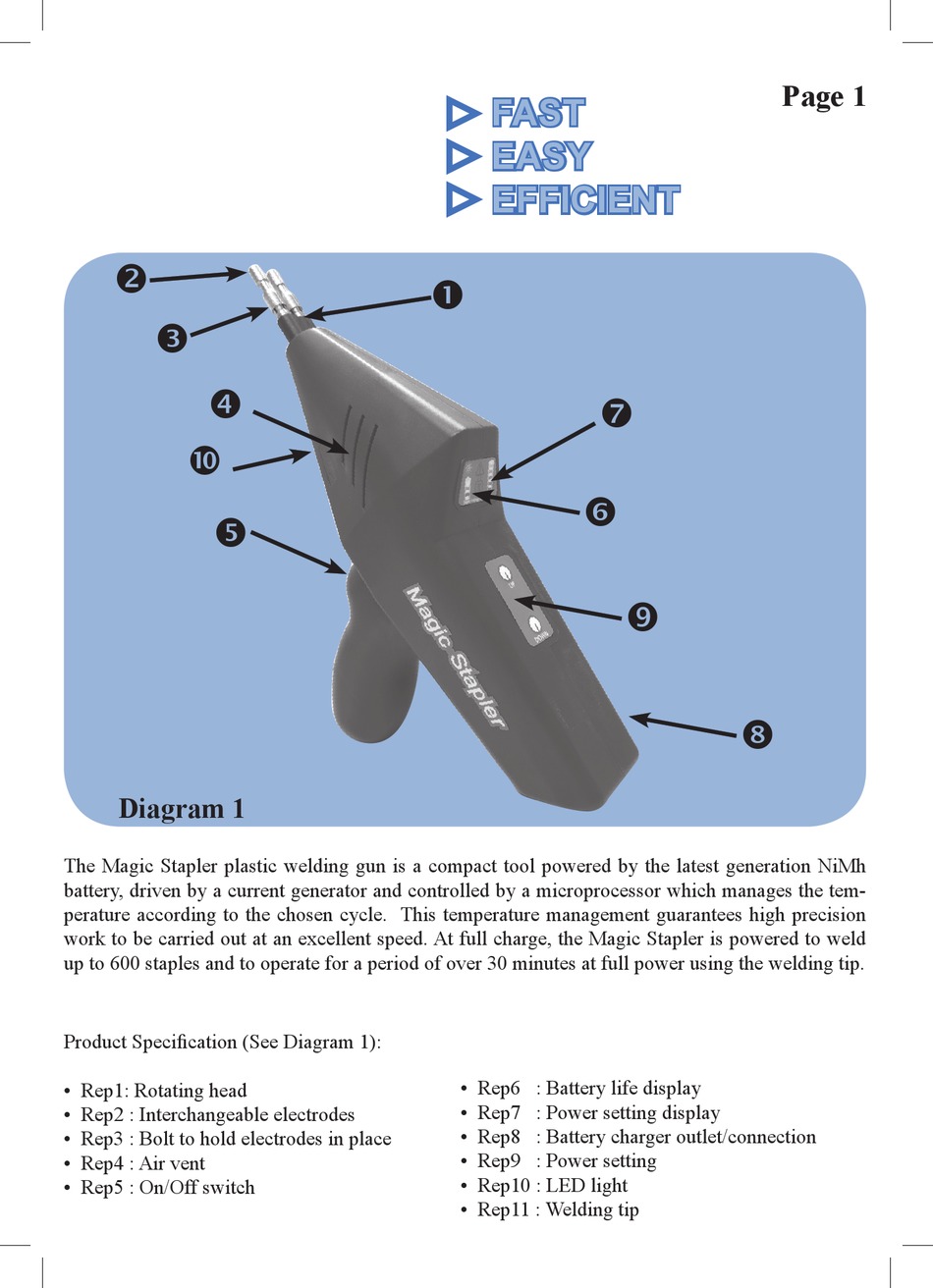

Diagram 1
The Magic Stapler plastic welding gun is a compact tool powered by the latest generation NiMh
battery, driven by a current generator and controlled by a microprocessor which manages the tem-
perature according to the chosen cycle. This temperature management guarantees high precision
work to be carried out at an excellent speed. At full charge, the Magic Stapler is powered to weld
up to 600 staples and to operate for a period of over 30 minutes at full power using the welding tip.
Product specification (see diagram 1):
• rep1: rotating head
• rep2 : interchangeable electrodes
• rep3 : bolt to hold electrodes in place
• rep4 : air vent
• rep5 : on/off switch
FAST
EASY
EFFICIENT



• rep6 : battery life display
• rep7 : Power setting display
• rep8 : battery charger outlet/connection
• rep9 : Power setting
• rep10 : Led light
• rep11 : Welding tip
Page 1


