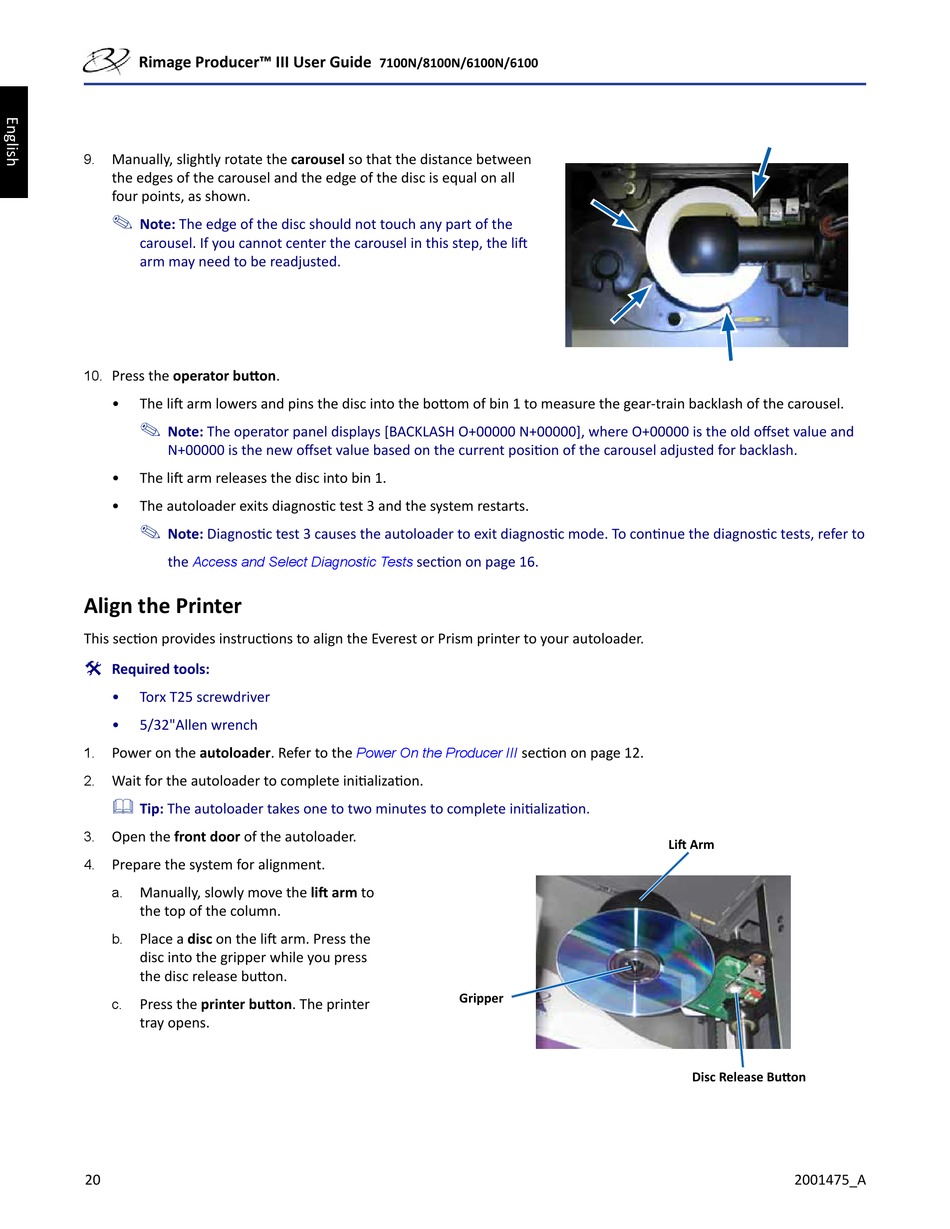

Rimage Producer™ III User Guide
Manually, slightly rotate the carousel so that the distance between
9.
the edges of the carousel and the edge of the disc is equal on all
four points, as shown.

Note: The edge of the disc should not touch any part of the
carousel. If you cannot center the carousel in this step, the lift
arm may need to be readjusted.
Press the operator button.
10.
• The lift arm lowers and pins the disc into the bottom of bin 1 to measure the gear-train backlash of the carousel.

Note: The operator panel displays [BACKLASH O+00000 N+00000], where O+00000 is the old offset value and
N+00000 is the new offset value based on the current position of the carousel adjusted for backlash.
• The lift arm releases the disc into bin 1.
• The autoloader exits diagnostic test 3 and the system restarts.

Note: Diagnostic test 3 causes the autoloader to exit diagnostic mode. To continue the diagnostic tests, refer to
the
Access and Select Diagnostic Tests

Align the Printer

This section provides instructions to align the Everest or Prism printer to your autoloader.
# Required tools:
• Torx T25 screwdriver
• 5/32"Allen wrench
1. Power on the autoloader. Refer to the
2. Wait for the autoloader to complete initialization.
Tip: The autoloader takes one to two minutes to complete initialization.
3. Open the front door of the autoloader.
Prepare the system for alignment.
4.
Manually, slowly move the lift arm to
a.
the top of the column.
Place a disc on the lift arm. Press the
b.
disc into the gripper while you press
the disc release button.
Press the printer button. The printer
c.
tray opens.
20
7100N/8100N/6100N/6100
section on page 16.
section on page 12.
Power On the Producer III
Gripper
Lift Arm
Disc Release Button
2001475_A
