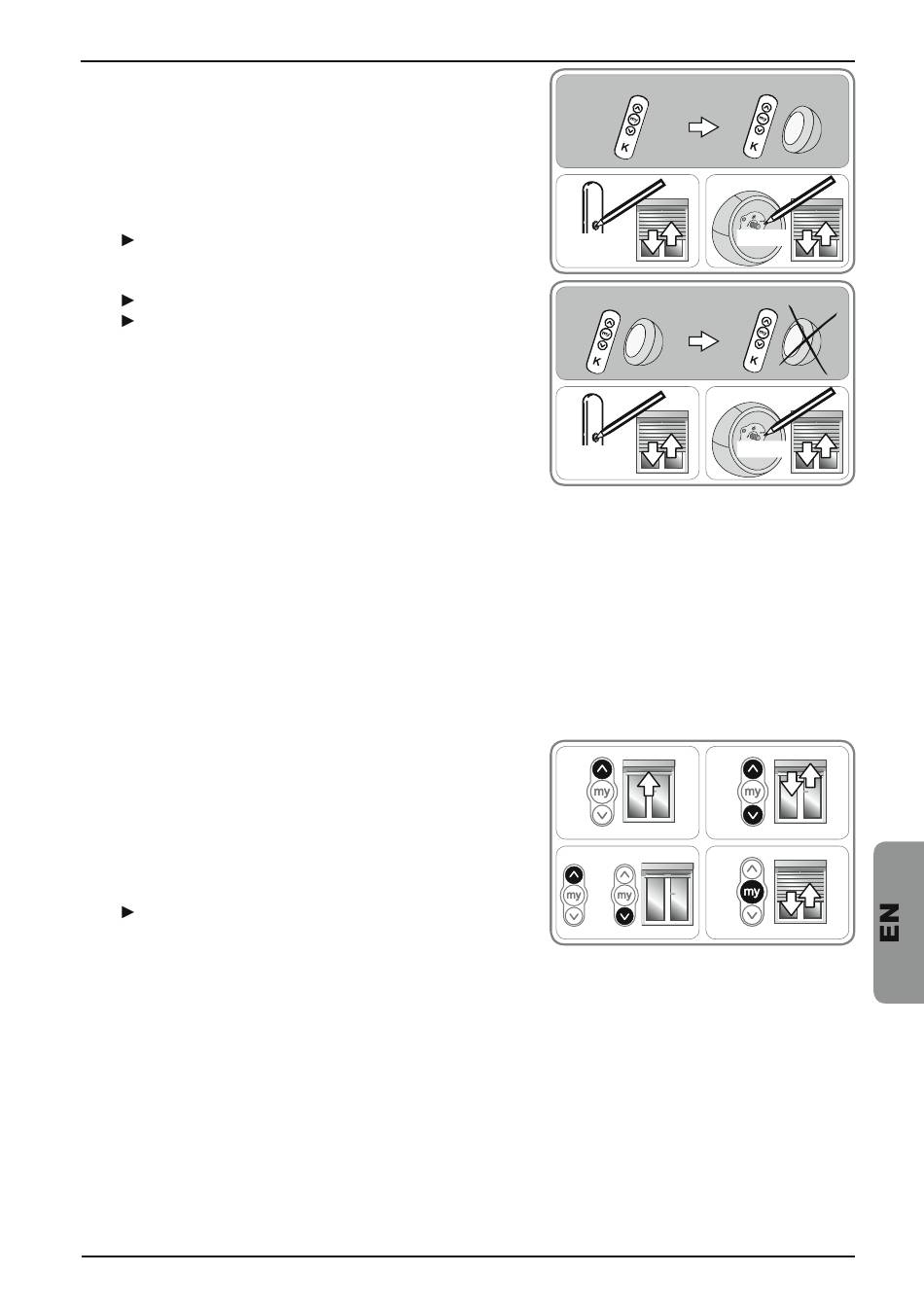

5.3 Adding/Deleting RTS sensors

- Activate the favourite position, see the section entitled
"Activating the favourite position". This enables the sensor
to be used correctly.
- Find an RTS control point (K) programmed in the motor.
1) Press and hold the PROG button on the programmed
RTS control point (K) until the roller shutter moves up and
down:
The motor is in programming mode.
2) Briefly press the PROG button on the RTS sensor (N) to
be added or deleted:
The roller shutter moves up and down,
The RTS sensor (N) is programmed or deleted from
the motor.

5.4 Modifying the end limits

Adjusting and modifying the end limits depends on the type
of connections and bolts used and whether or not there are
stops on the end slat.
5.4.1 With bolts and stops on the end slat
If the roller shutter is fitted with bolts and stops on the end
slat, the end limits are automatically adjusted.
5.4.2 With bolts and without stops on the end slat
If the roller shutter is fitted with bolts and without stops on
the end slat, the upper end limit can be modified.
Setting the upper end limit
1) Raise the roller shutter to the set upper end limit
position.
2) Press the up and down buttons until the roller shutter
moves up and down.
3) Adjust the upper position of the roller shutter using the up
or down buttons.
4) Press the STOP/my button until the roller shutter moves
up and down:
The new upper end limit position has been
programmed.
