6 I nstallation
6.1 P lates
The unit is supplied with warning and attention plates as listed in the relevant table.

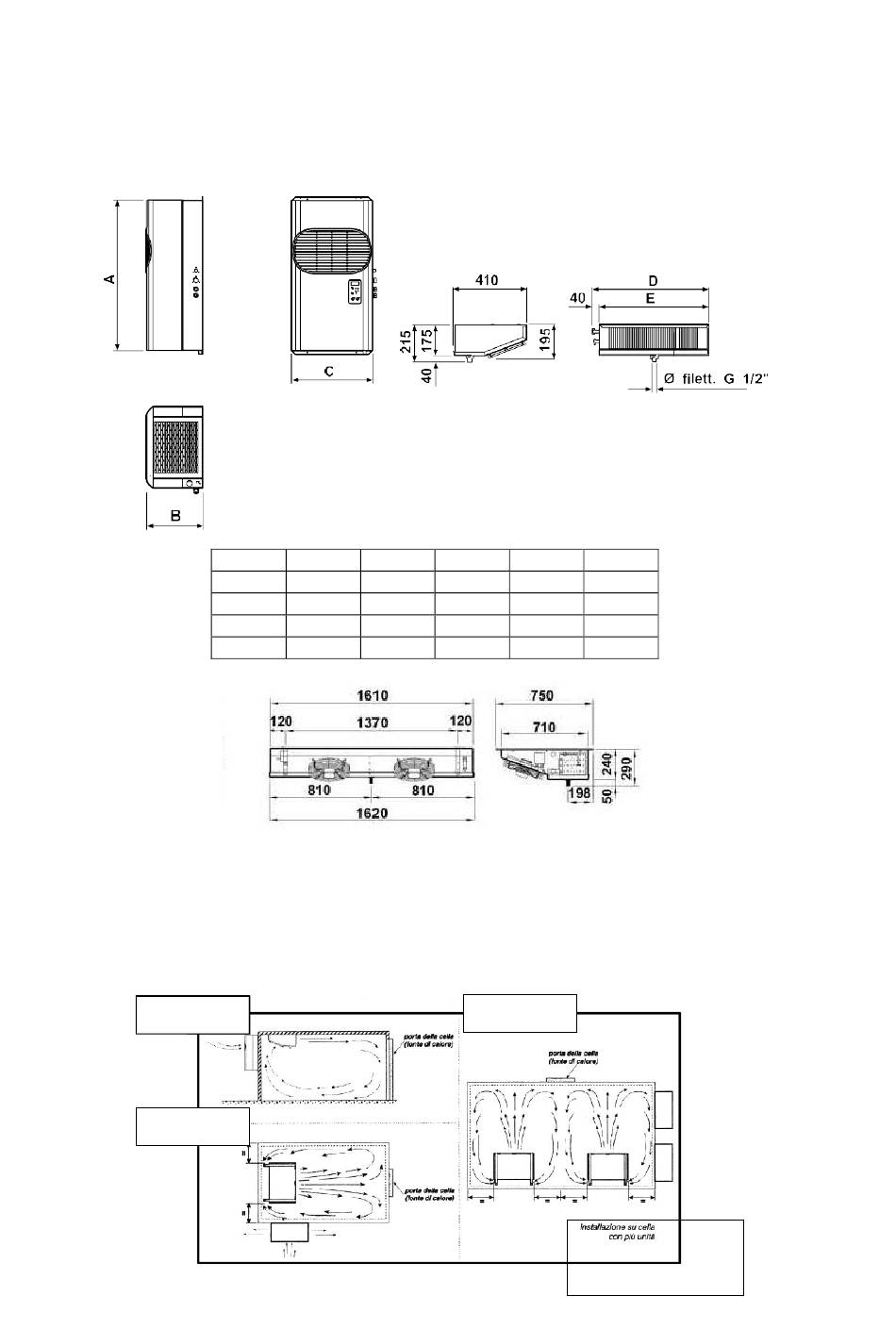

6.2 Dim ensions

6.3 Location

Solution 1
Solution 2
A
GS1 735
GS2 830
GS3 830
GS340 830
To obtain optimal operation of the unit act as follows:
A) Place the unit in a well ventilated room, far from heat sources.
B) Limit the number of door openings.
C) Make sure that the unit has good air supply and discharge.
D) Fit a drain line to the defrost water drain connection in the lower part of the
evaporator.
B C D
280 400 654
280 620 1074
350 620 1654
410 620
Solution 3
E
614
1035
1693
Evaporator GS340
Installation in a
coldroom with
more than one unit
