Hand programming of the device

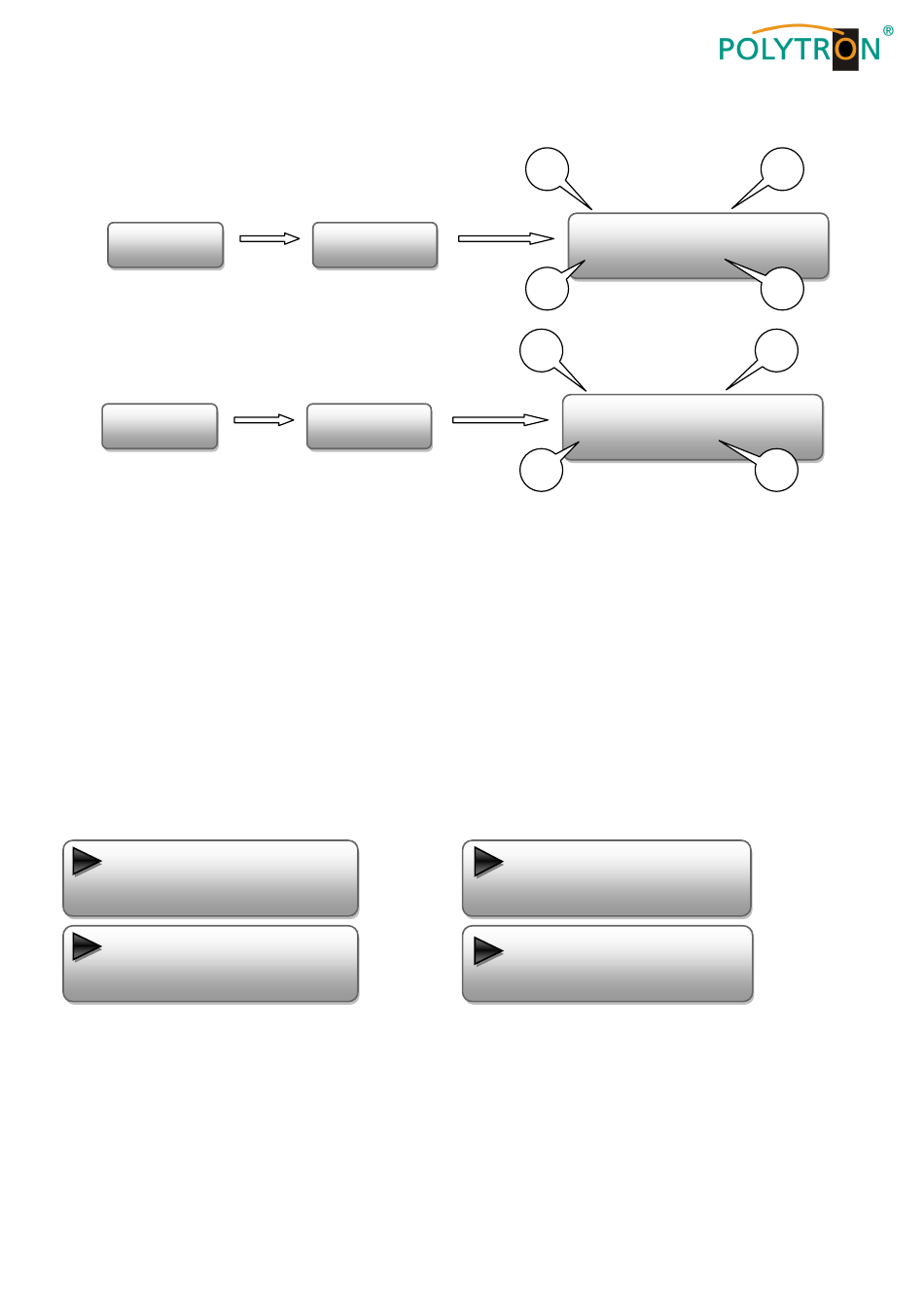

LCD Screen after switch on:
For the HDM 1 T:
Start up...
For the HDM 1 C:
Start up...
1. Shows the modulation of the output signal
2. Output frequency
3. Data rate of the output signal
4. Not relevant
Programming via Buttons
The main menu occurs after pushing the button "Menu".
Menu navigation by using arrow buttons.
Settings confirmation by "Enter".
One step back through pushing button "Back"
1 Alarm Status
2 Input Settings
3 Modulate Settings
4 IP Output Settings
1. Alarm Status
If there is no HDMI signal at the input, the menu point "Alarm Status" will be shown: "No video in" and the alarm
indicator (9) turns on. This lights also red if a bit rate overflow occurs at the ouput.
2. Input Settings
2.1 Input 1:
In this version is only input 1 useable.
2.1.1 Video Format
Selection: Mpeg2, H.264
Default: H.264
19
Start ok...
Start ok...
1
DVB-T 750.00MHz
0.000 Mbps
3
1
Cable 750.00MHz
0.000 Mbps
3
5 Network Settings
6 Saving Config
7 Loading Config
8 Version
2
0.0M
4
2
0.0M
4
