DC-Kit5

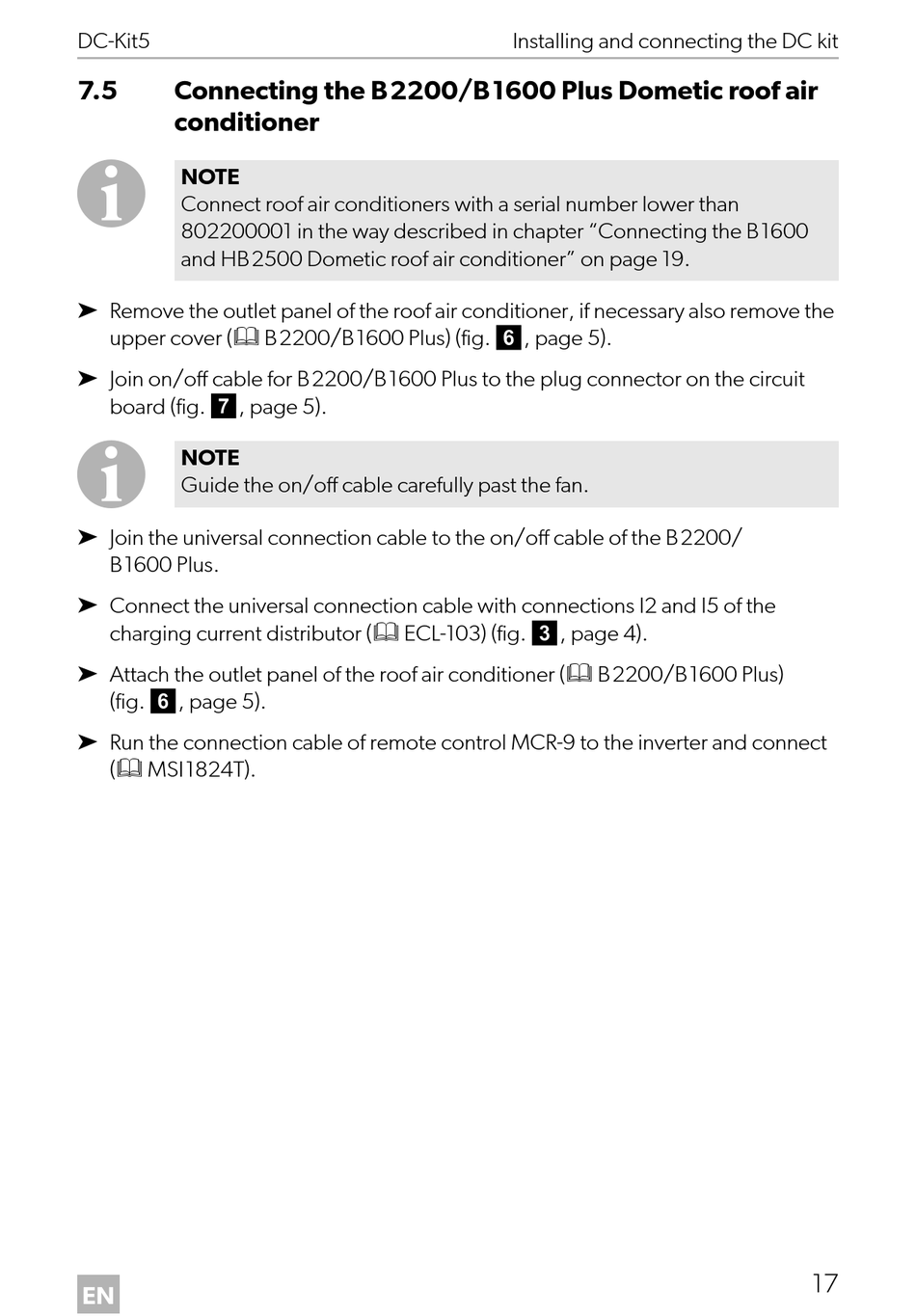

7.5 Connecting the B2200/B1600 Plus Dometic roof air
conditioner
I
NOTE
Connect roof air conditioners with a serial number lower than
802200001 in the way described in chapter "Connecting the B1600
and HB2500 Dometic roof air conditioner" on page 19.
➤ Remove the outlet panel of the roof air conditioner, if necessary also remove the
upper cover ( B2200/B1600 Plus) (fig. 6, page 5).
➤ Join on/off cable for B2200/B1600 Plus to the plug connector on the circuit
board (fig. 7, page 5).
I
NOTE
Guide the on/off cable carefully past the fan.
➤ Join the universal connection cable to the on/off cable of the B2200/
B1600 Plus.
➤ Connect the universal connection cable with connections I2 and I5 of the
charging current distributor ( ECL-103) (fig. 3, page 4).
➤ Attach the outlet panel of the roof air conditioner ( B2200/B1600 Plus)
(fig. 6, page 5).
➤ Run the connection cable of remote control MCR-9 to the inverter and connect
( MSI1824T).
EN
Installing and connecting the DC kit
17
