I N I T I A L S E T U P

Place your speakers

Place your speakers in their permanent location before connecting the speaker wires to
the amplifier.

Connect your speakers to the amplifier

After you place your speakers, connect the speaker wires to the amplifier.
Speaker wires consist of two insulated wires:
• The marked wire (stripes, ribbing or color) connects to the positive (+) terminal.
• The plain wire connects to the negative (–) terminal.
Before connecting your speakers, make sure the amplifier is unplugged from an AC
(mains) power source.

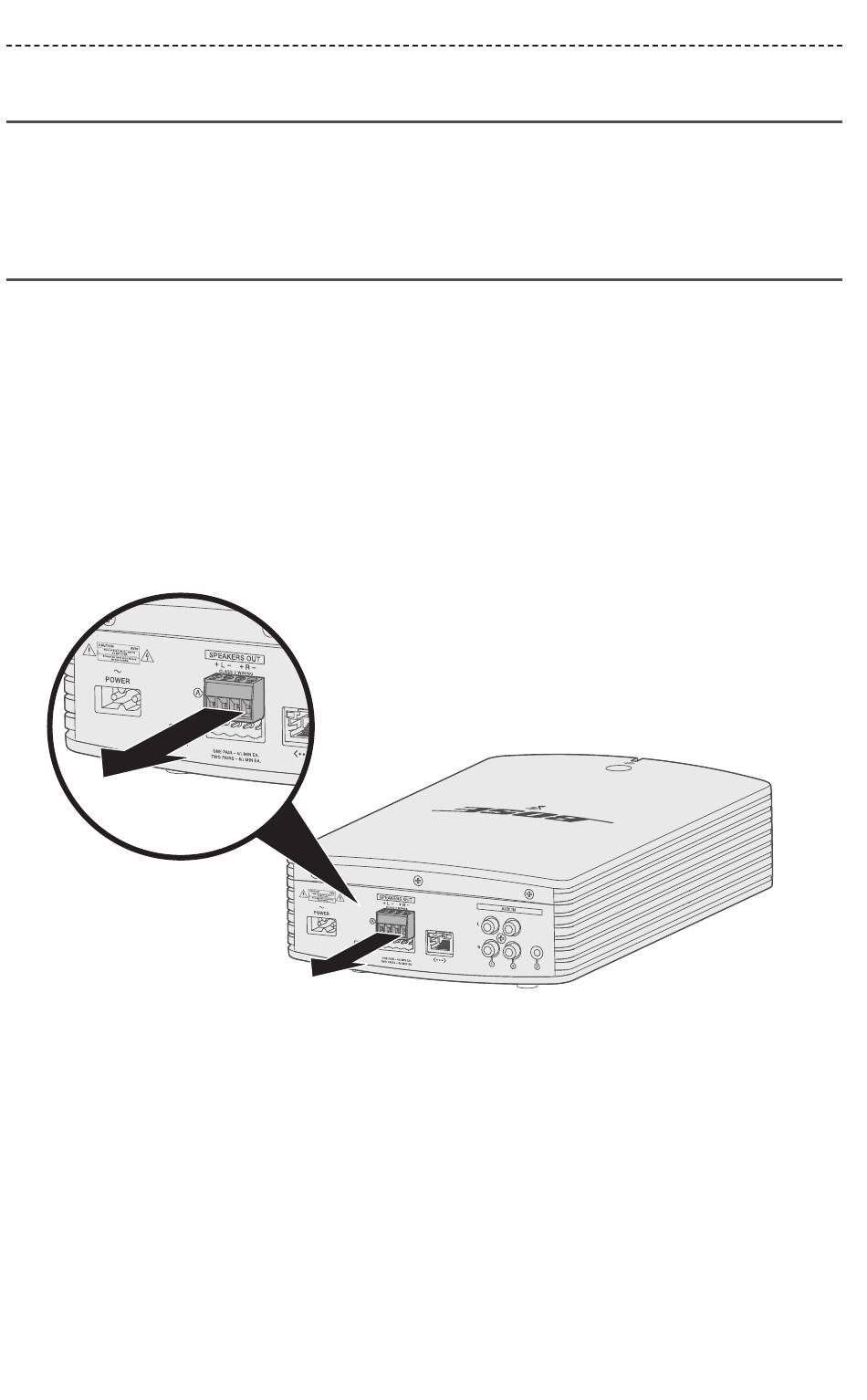

1. Remove terminal block A from the SPEAKERS OUT connector.
2. Connect the speaker wires to terminal block A:
A. Insert the left speaker's marked wire into the
plain wire into the
B. Insert the right speaker's marked wire into the
and the plain wire into the
1 0 - E N G L I S H
L –
negative terminal.
R –
negative terminal.
+ L
positive terminal and the
+ R
positive terminal
