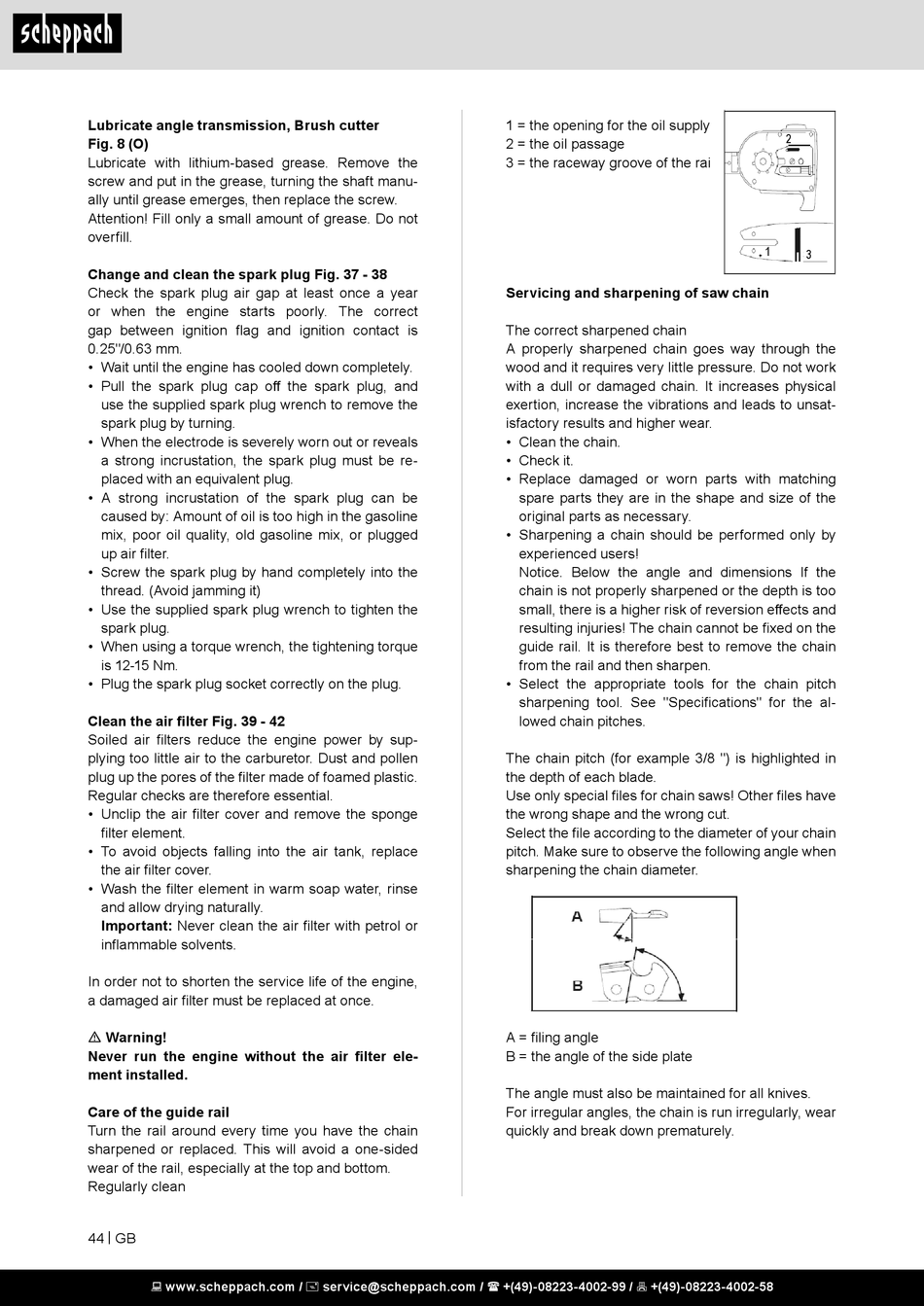

Scheppach MFH5300-4BP Original Bedienungsanleitung Seite 44

Lubricate angle transmission, Brush cutter
Fig. 8 (O)
Lubricate with lithium-based grease. Remove the
screw and put in the grease, turning the shaft manu-
ally until grease emerges, then replace the screw.
Attention! Fill only a small amount of grease. Do not
overfill.
Change and clean the spark plug Fig. 37 - 38
Check the spark plug air gap at least once a year
or when the engine starts poorly. The correct
gap between ignition flag and ignition contact is
0.25"/0.63 mm.
• Wait until the engine has cooled down completely.
• Pull the spark plug cap off the spark plug, and
use the supplied spark plug wrench to remove the
spark plug by turning.
• When the electrode is severely worn out or reveals
a strong incrustation, the spark plug must be re-
placed with an equivalent plug.
• A strong incrustation of the spark plug can be
caused by: Amount of oil is too high in the gasoline
mix, poor oil quality, old gasoline mix, or plugged
up air filter.
• Screw the spark plug by hand completely into the
thread. (Avoid jamming it)
• Use the supplied spark plug wrench to tighten the
spark plug.
• When using a torque wrench, the tightening torque
is 12-15 Nm.
• Plug the spark plug socket correctly on the plug.
Clean the air filter Fig. 39 - 42
Soiled air filters reduce the engine power by sup-
plying too little air to the carburetor. Dust and pollen
plug up the pores of the filter made of foamed plastic.
Regular checks are therefore essential.
• Unclip the air filter cover and remove the sponge
filter element.
• To avoid objects falling into the air tank, replace
the air filter cover.
• Wash the filter element in warm soap water, rinse
and allow drying naturally.
Important: Never clean the air filter with petrol or
inflammable solvents.
In order not to shorten the service life of the engine,
a damaged air filter must be replaced at once.
m Warning!
Never run the engine without the air filter ele-
ment installed.
Care of the guide rail
Turn the rail around every time you have the chain
sharpened or replaced. This will avoid a one-sided
wear of the rail, especially at the top and bottom.
Regularly clean
44 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
1 = the opening for the oil supply
2 = the oil passage
3 = the raceway groove of the rai
Servicing and sharpening of saw chain
The correct sharpened chain
A properly sharpened chain goes way through the
wood and it requires very little pressure. Do not work
with a dull or damaged chain. It increases physical
exertion, increase the vibrations and leads to unsat-
isfactory results and higher wear.
• Clean the chain.
• Check it.
• Replace damaged or worn parts with matching
spare parts they are in the shape and size of the
original parts as necessary.
• Sharpening a chain should be performed only by
experienced users!
Notice. Below the angle and dimensions If the
chain is not properly sharpened or the depth is too
small, there is a higher risk of reversion effects and
resulting injuries! The chain cannot be fixed on the
guide rail. It is therefore best to remove the chain
from the rail and then sharpen.
• Select the appropriate tools for the chain pitch
sharpening tool. See "Specifications" for the al-
lowed chain pitches.
The chain pitch (for example 3/8 ") is highlighted in
the depth of each blade.
Use only special files for chain saws! Other files have
the wrong shape and the wrong cut.
Select the file according to the diameter of your chain
pitch. Make sure to observe the following angle when
sharpening the chain diameter.
A = filing angle
B = the angle of the side plate
The angle must also be maintained for all knives.
For irregular angles, the chain is run irregularly, wear
quickly and break down prematurely.
2
1
3
