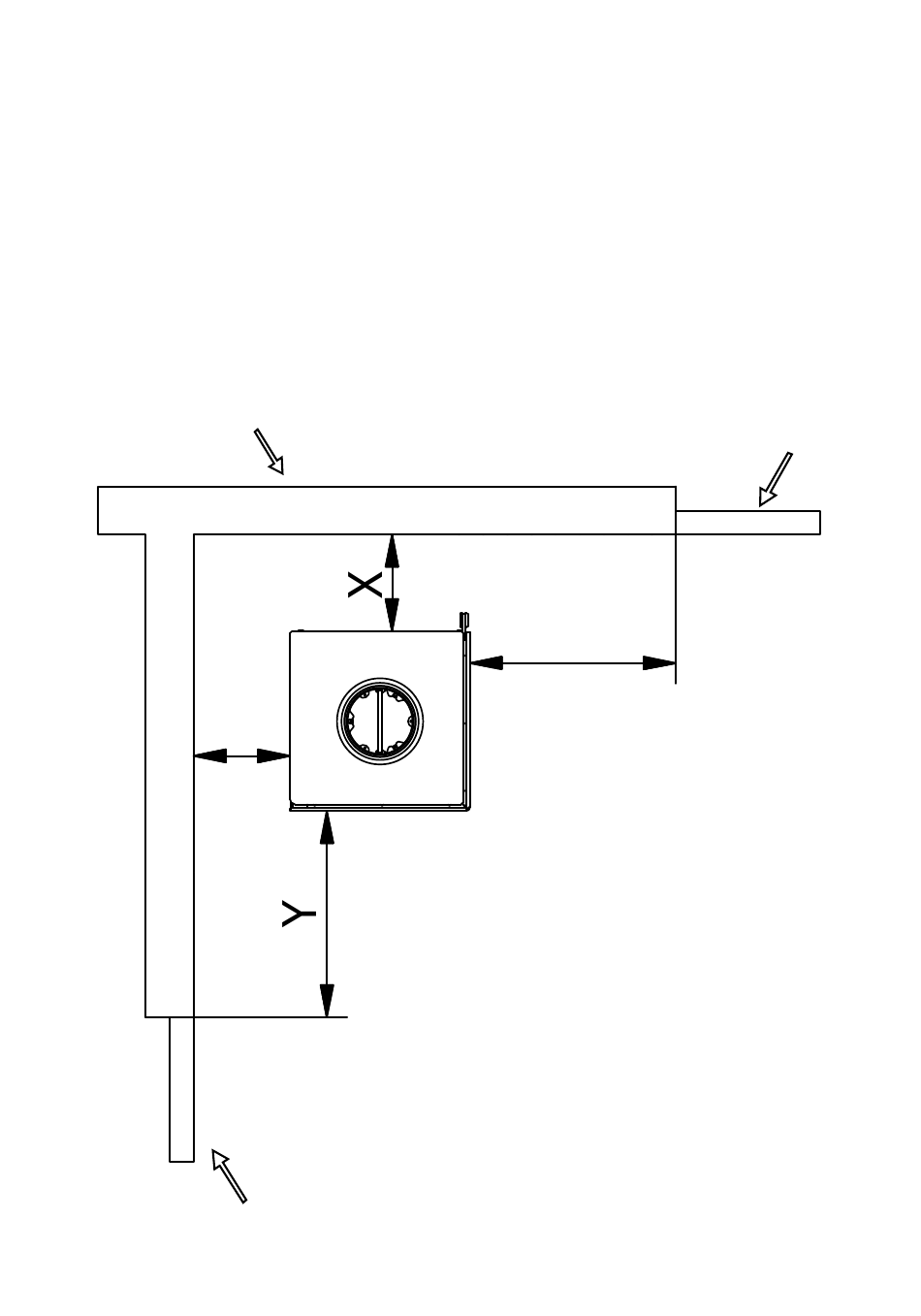

normal set-up (corner setting) - non-combustible and combustible wall

Distance (min.) to non-
flammable materials (X)
50 mm
100 mm
for example:
at distance 50mm (X) to the non-combustible wall, the distance infront of the stove to
the combustible wall must be 325 mm (y).
non-combustible wall
combustible wall
70
uninsulated flue
Distance (min.) to flam-
mable materials (y)
X
attika
RAIS/
325 mm
250 mm
Y
- User manual for Q-BE
combustible wall
