Installation

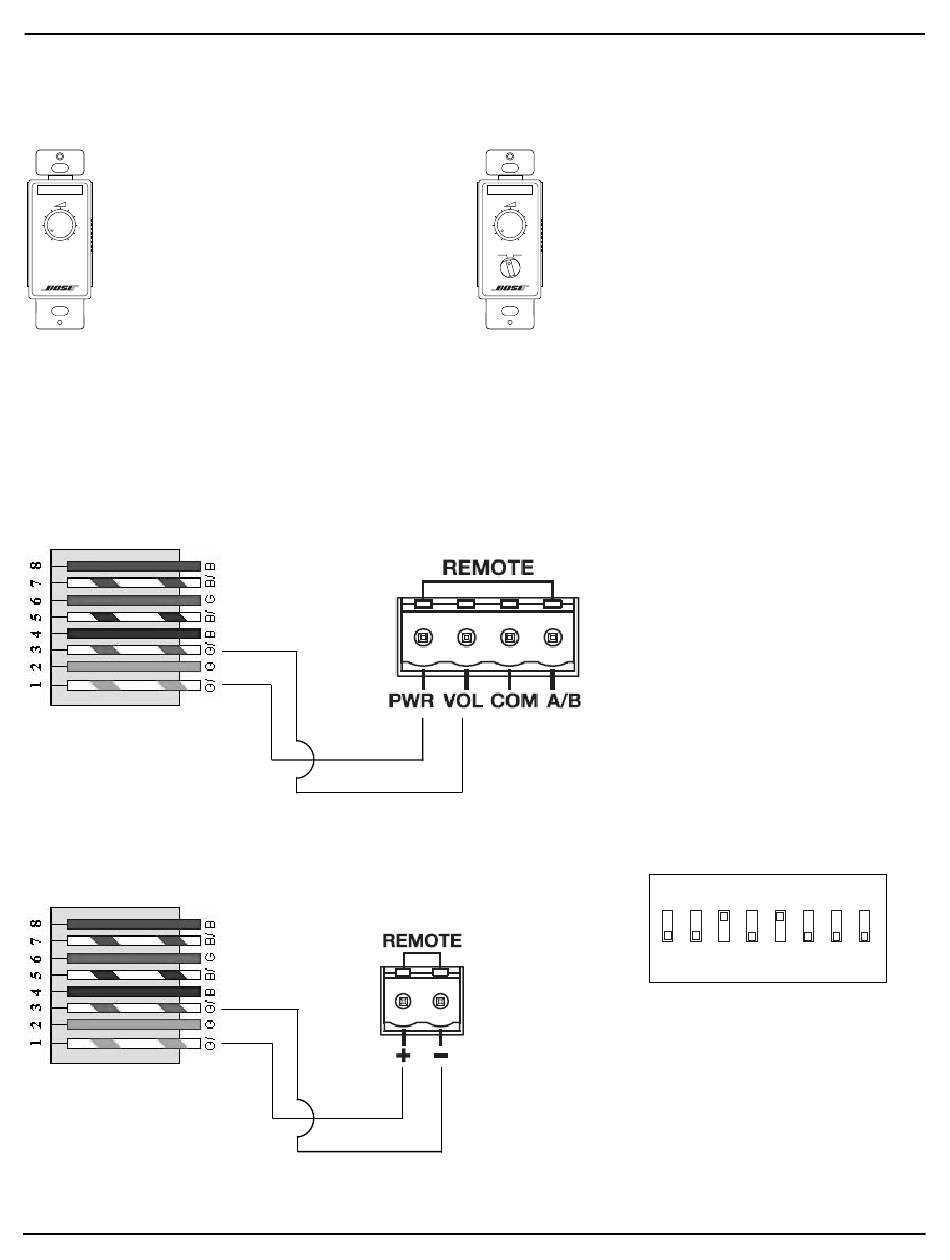

Connecting a ControlCenter Zone Controller

Figure 15. ControlCenter CC-1 and CC-2 Zone Controllers
Bose® ControlCenter CC-1 Zone Controller
provides volume control only.
Connecting the CC-1 to a FreeSpace® Amplifier
One CC-1
Connect one CC-1 zone controller to FreeSpace® amplifier models IZA 2120-LZ/HZ or ZA 2120-LZ/HZ.
DIP switch settings are the same when connecting to the ZA 2120-LZA/HZA.
Either RJ-45
Either RJ-45
on CC-1
On CC-1
Either RJ-45
on CC-1
30 - Installation Guide
A
FreeSpace
FreeSpace
IZA 2120-LZ/HZ
IZA 2120-LZ/HZ
FreeSpace
FreeSpace
ZA 2120-LZ/HZ
ZA 2120-LZ/HZ
Bose® ControlCenter CC-2 Zone Controller
provides volume control and A/B source
selection.
B
ON
1 2 3 4 5 6 7 8
pro.Bose.com
DIP
CC-1 Zone Controller #1
