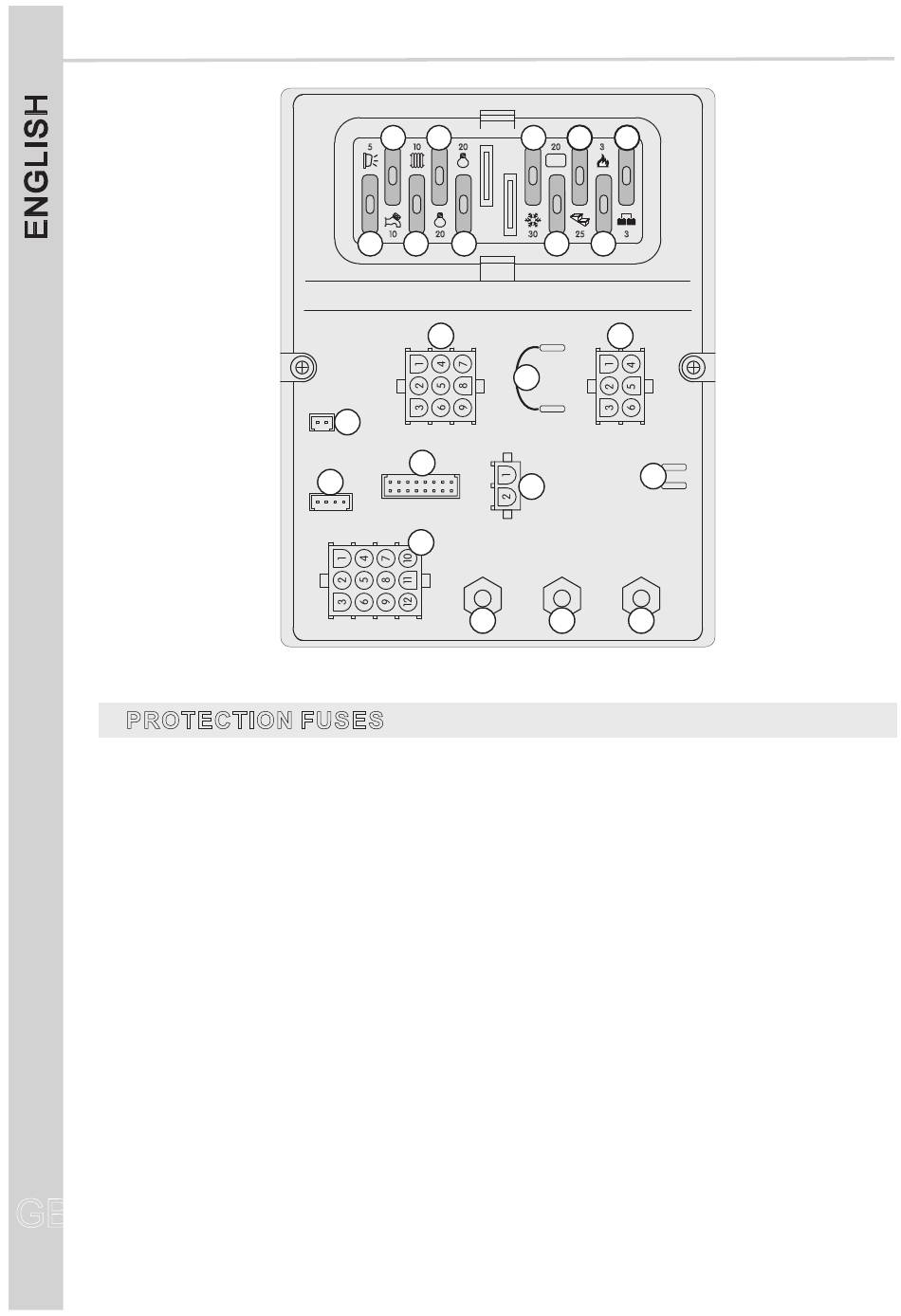

DISTRIBUTION BOX "DS300"

PROTECTION FUSES

1)
5A fuse to give power to the awning light.
2) 10A fuse to give power to the water pump.
3)
10A fuse to give power to the heating/boiler.
4)
20A fuse to give power to the lights group "A".
5)
20A fuse to give power to the lights group "B".
6)
30A fuse to give power to 12V AES or 3-way function fridge. The 3-way function fridge switches
automatically off when the engine is off.
7)
20A fuse for the auxiliary power supply (solar regulator), which is directly connected to the leisure (B2)
battery.
8)
25A fuse for the electrical step power supply, connected directly to the leisure (B2) battery.
9)
3A fuse for the gas power supply (fridge, kitchen, boiler valve, etc.), connected directly to the leisure
(B2) battery.
10)
3A fuse for OUT D+ simulated exit protection.
11)
AES fridge connection; It is a bridge, which excludes the 3 way function fridge and is used to connect
the AES fridge directly to the B2.
12)
Simulated output D+ alternator to control the electrical step, AES refrigerator, electrical draining valve,
coming-back of the electrical antenna, e
GB
GB
20
2 4
5 10 20
B
A
10 20
1 3 5
18
1 2
13
15
8 1
14
16 9
1 2 3 4
19
-B2
20
tc.) .
6 8 10
20 3
AUX
30 25 3
7 9
17
11
12
16
+B2 +B1
21 22
