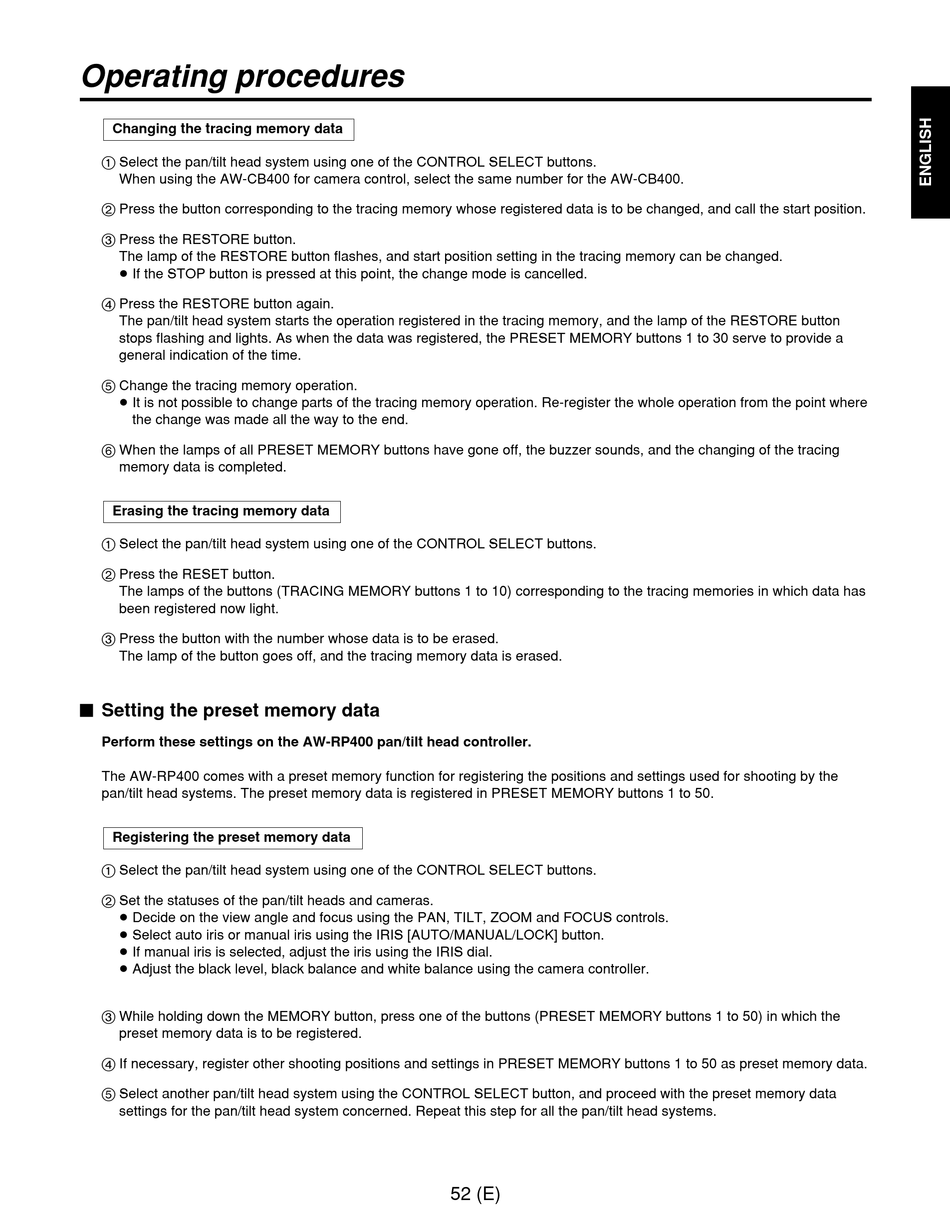

Operating procedures
Changing the tracing memory data
1 Select the pan/tilt head system using one of the CONTROL SELECT buttons.
When using the AW-CB400 for camera control, select the same number for the AW-CB400.
2 Press the button corresponding to the tracing memory whose registered data is to be changed, and call the start position.
3 Press the RESTORE button.
The lamp of the RESTORE button flashes, and start position setting in the tracing memory can be changed.
≥ If the STOP button is pressed at this point, the change mode is cancelled.
4 Press the RESTORE button again.
The pan/tilt head system starts the operation registered in the tracing memory, and the lamp of the RESTORE button
stops flashing and lights. As when the data was registered, the PRESET MEMORY buttons 1 to 30 serve to provide a
general indication of the time.
5 Change the tracing memory operation.
≥ It is not possible to change parts of the tracing memory operation. Re-register the whole operation from the point where
the change was made all the way to the end.
6 When the lamps of all PRESET MEMORY buttons have gone off, the buzzer sounds, and the changing of the tracing
memory data is completed.
Erasing the tracing memory data
1 Select the pan/tilt head system using one of the CONTROL SELECT buttons.
2 Press the RESET button.
The lamps of the buttons (TRACING MEMORY buttons 1 to 10) corresponding to the tracing memories in which data has
been registered now light.
3 Press the button with the number whose data is to be erased.
The lamp of the button goes off, and the tracing memory data is erased.
$ Setting the preset memory data
Perform these settings on the AW-RP400 pan/tilt head controller.
The AW-RP400 comes with a preset memory function for registering the positions and settings used for shooting by the
pan/tilt head systems. The preset memory data is registered in PRESET MEMORY buttons 1 to 50.
Registering the preset memory data
1 Select the pan/tilt head system using one of the CONTROL SELECT buttons.
2 Set the statuses of the pan/tilt heads and cameras.
≥ Decide on the view angle and focus using the PAN, TILT, ZOOM and FOCUS controls.
≥ Select auto iris or manual iris using the IRIS [AUTO/MANUAL/LOCK] button.
≥ If manual iris is selected, adjust the iris using the IRIS dial.
≥ Adjust the black level, black balance and white balance using the camera controller.
3 While holding down the MEMORY button, press one of the buttons (PRESET MEMORY buttons 1 to 50) in which the
preset memory data is to be registered.
4 If necessary, register other shooting positions and settings in PRESET MEMORY buttons 1 to 50 as preset memory data.
5 Select another pan/tilt head system using the CONTROL SELECT button, and proceed with the preset memory data
settings for the pan/tilt head system concerned. Repeat this step for all the pan/tilt head systems.
52 (E)
