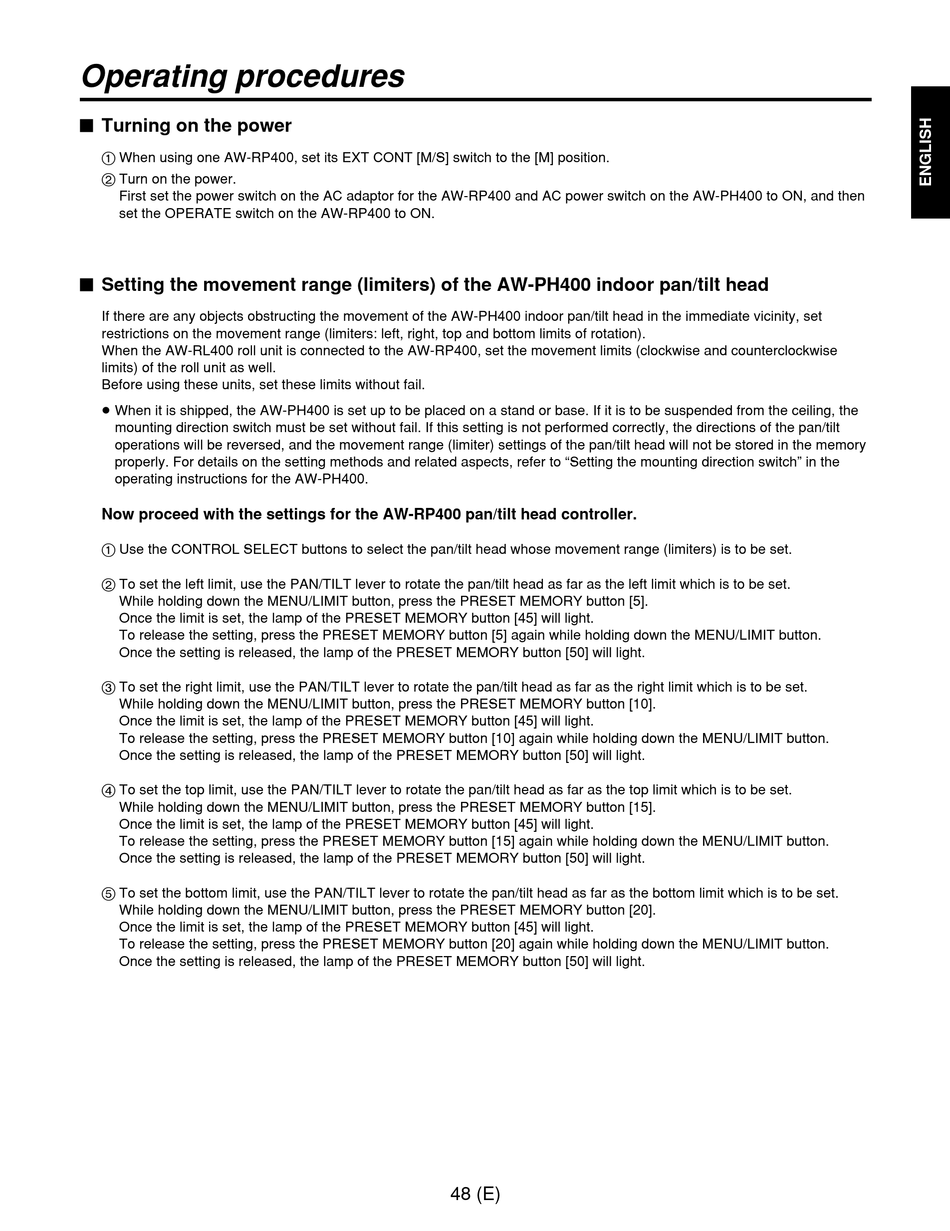

Operating procedures

$ Turning on the power

1 When using one AW-RP400, set its EXT CONT [M/S] switch to the [M] position.
2 Turn on the power.
First set the power switch on the AC adaptor for the AW-RP400 and AC power switch on the AW-PH400 to ON, and then
set the OPERATE switch on the AW-RP400 to ON.
$ Setting the movement range (limiters) of the AW-PH400 indoor pan/tilt head
If there are any objects obstructing the movement of the AW-PH400 indoor pan/tilt head in the immediate vicinity, set
restrictions on the movement range (limiters: left, right, top and bottom limits of rotation).
When the AW-RL400 roll unit is connected to the AW-RP400, set the movement limits (clockwise and counterclockwise
limits) of the roll unit as well.
Before using these units, set these limits without fail.
≥ When it is shipped, the AW-PH400 is set up to be placed on a stand or base. If it is to be suspended from the ceiling, the
mounting direction switch must be set without fail. If this setting is not performed correctly, the directions of the pan/tilt
operations will be reversed, and the movement range (limiter) settings of the pan/tilt head will not be stored in the memory
properly. For details on the setting methods and related aspects, refer to "Setting the mounting direction switch" in the
operating instructions for the AW-PH400.
Now proceed with the settings for the AW-RP400 pan/tilt head controller.
1 Use the CONTROL SELECT buttons to select the pan/tilt head whose movement range (limiters) is to be set.
2 To set the left limit, use the PAN/TILT lever to rotate the pan/tilt head as far as the left limit which is to be set.
While holding down the MENU/LIMIT button, press the PRESET MEMORY button [5].
Once the limit is set, the lamp of the PRESET MEMORY button [45] will light.
To release the setting, press the PRESET MEMORY button [5] again while holding down the MENU/LIMIT button.
Once the setting is released, the lamp of the PRESET MEMORY button [50] will light.
3 To set the right limit, use the PAN/TILT lever to rotate the pan/tilt head as far as the right limit which is to be set.
While holding down the MENU/LIMIT button, press the PRESET MEMORY button [10].
Once the limit is set, the lamp of the PRESET MEMORY button [45] will light.
To release the setting, press the PRESET MEMORY button [10] again while holding down the MENU/LIMIT button.
Once the setting is released, the lamp of the PRESET MEMORY button [50] will light.
4 To set the top limit, use the PAN/TILT lever to rotate the pan/tilt head as far as the top limit which is to be set.
While holding down the MENU/LIMIT button, press the PRESET MEMORY button [15].
Once the limit is set, the lamp of the PRESET MEMORY button [45] will light.
To release the setting, press the PRESET MEMORY button [15] again while holding down the MENU/LIMIT button.
Once the setting is released, the lamp of the PRESET MEMORY button [50] will light.
5 To set the bottom limit, use the PAN/TILT lever to rotate the pan/tilt head as far as the bottom limit which is to be set.
While holding down the MENU/LIMIT button, press the PRESET MEMORY button [20].
Once the limit is set, the lamp of the PRESET MEMORY button [45] will light.
To release the setting, press the PRESET MEMORY button [20] again while holding down the MENU/LIMIT button.
Once the setting is released, the lamp of the PRESET MEMORY button [50] will light.
48 (E)
