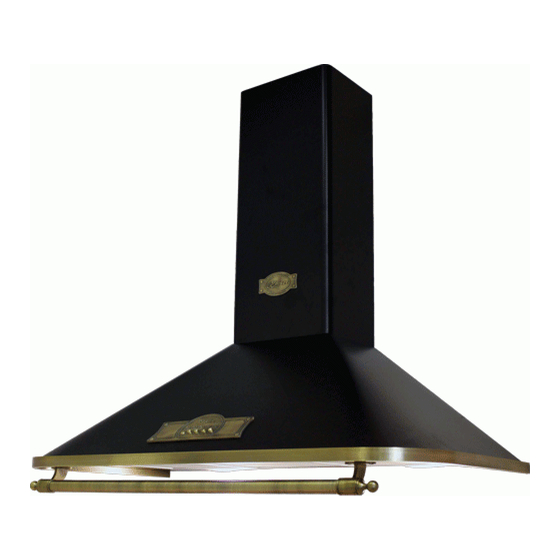

COOKER HOOD DUNSTABZUGSHAUBE КУХОННЫЙ ВОЗДУХООЧИСТИТЕЛЬ USER MANUAL GEBRAUCHSANWEISUNG ИНСТРУКЦИЯ ПО ОБСЛУЖИВАНИЮ И ЭКСПЛУАТАЦИИ...
Seite 2
DEAR CUSTOMERS, thank you for purchasing this Kaiser product. We are convinced that you have made a right choice. This product which satisfies the high quality demands and corresponds to world comprehensive standards realizes your cooker hood, and his modern appearance which has been developed by the best European designers will decorate your kitchen splendidly.
Seite 3
УВАЖАЕМЫЙ ПОКУПАТЕЛЬ, LIEBE KUNDIN, LIEBER KUNDE, wir danken Ihnen für den Erwerb unserer Technik. благодарим Вас за приобретение нашей техники. Wir sind überzeug, dass Sie eine richtige Wahl getroffen Мы уверены, что Вы сделали правильный выбор. haben. Dieses Produkt, das die hohen Forderungen zur Данный...
Seite 4
CONTENTS INSTALLATION INSTRUCTIONS Installation of the hood Connecting to the power network SAFETY REGULATIONS BRIEF DESCRIPTION Location drawing 12 OPERATING CONDITIONS OPERATION MODE Air extractor mode of the hood Setting the odour absorber mode Levels of the engine’s speed USAGE Operational safety Digital clock timer Logic control...
ОГЛАВЛЕНИЕ INHALTSVERZEICHNIS ИНСТРУКЦИЯ ПО МОНТАЖУ FÜR DEN INSTALLATEUR Montage der Dunstabzugshaube Монтаж воздухоочистителя Stromnetzanschluss Подключение к электросети ТЕХНИКА БЕЗОПАСНОСТИ SICHERHEITSHINWEISE KURZBESCHREIBUNG КРАТКОЕ ОПИСАНИЕ Gesamtansicht Внешний вид BETRIEBSBEDINGUNGEN УСЛОВИЯ ЭКСПЛУАТАЦИИ РЕЖИМЫ РАБОТЫ BETRIEBSARTEN DER ABZUGSHAUBE 17 Abluftbetrieb Работа в режиме вытяжной системы Umluftbetrieb Работа...
INSTALLATION INSTRUCTIONS INSTALLATION OF THE HOOD • Trace a vertical line on the wall to indicate the centre of the cooker plate. • Place the hood body 1 on the wall to get min 650 mm from the cooker plate (see p. 12). Level it horizontally.
ИНСТРУКЦИЯ ПО МОНТАЖУ FÜR DEN INSTALLATEUR MONTAGE DER DUNSTABZUGSHAUBE МОНТАЖ ВОЗДУХООЧИСТИТЕЛЯ • Zeichnen Sie auf der Wand eine senkrechte Linie • Начертите на стене вертикальную линию, in der Mitte des Kochfeldes. обозначающую центр плиты. • Legen Sie das Gehäuse der Dunstabzugshaube •...
Seite 8
• Connect the hood to the power supply network. Models A 6135 * Em, A 9315*Em - 220-240V; 238W CONNECTING TO THE POWER NETWORK Before connecting the oven to the mains power supply, make sure that: • The supply voltage corresponds to the specifications on the data plate in the interior of device.
• Schließen Sie die Dunstabzugshaube an das • П о д к л ю ч и т е в о з д у х о о ч и с т и т е л ь к Stromnetz an электросети. Modellen A 6135 * Em, A 9315*Em - 220-240V; 238W Модели...
SAFETY REGULATIONS • Never let the children operate the machine. • The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose. • Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. •...
ТЕХНИКА БЕЗОПАСНОСТИ SICHERHEITSHINWEISE • Erlauben Sie den Kindern nicht, die Abzugshaube • Н е п о з в о л я й т е д е т я м у п р а в л я т ь zu steuern. воздухоочистителем.
BRIEF DESCRIPTION The cooker hood was designed to remove kitchen fumes. It requires installation of a conduit discharging used air to the outside. The conduit (usually a pipe Ø 150) shall not be longer than 4 – 5 m. The hood can operate as an odour absorber after installation of an charcoal filter.
КРАТКОЕ ОПИСАНИЕ KURZBESCHREIBUNG Die Dunstabzugshaube dient zur Abführung Кухонный воздухоочиститель предназначен для K o c h s c h w a d e n . E r f o r d e r l i c h i s t d a b e i e i n e устранения...
OPERATING CONDITIONS The cooker hood was designed for removal of kitchen fumes to the outside. It should be connected to an appropriate ventilation duct (do not connect the hood to any chimney, smoke or flue-gas ducts which are in use). The device shall be installed at the distance of at least 650 mm above the working top of an electro and 700 mm above a gas cooker.
УСЛОВИЯ ЭКСПЛУАТАЦИИ BETRIEBSBEDINGUNGEN Die Dunstabzugshaube dient zur Abführung von Воздухоочиститель предназначен для устранения Kochdunst und Gerüchen. Das Gerät soll an einen к у х о н н ы х п а р о в и з а п а х о в . Е г о с л е д у ет entsprechenden Belüftungskanal angeschlossen п...
Seite 16
OPERATION MODE OF THE HOOD AIR EXTRACTOR MODE In the extractor mode air is discharged to the outside by a special conduit. In that case any factory-installed charcoal filters shall be removed. The hood can be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of Ø...
РЕЖИМЫ РАБОТЫ BETRIEBSARTEN DER ABZUGSHAUBE ВОЗДУХООЧИСТИТЕЛЯ Р А Б О Т А В Р Е Ж И М Е В Ы Т Я Ж Н О Й СИСТЕМЫ ABLUFTBETRIEB Im Abluftbetrieb wird die Luft nach Außen durch ein В случае работы устройства в режиме вытяжной gesondertes Rohr abgeführt.
USAGE OPERATIONAL SAFETY All safety instructions included in this manual shall be observed without exception! Grease filters and charcoal filters should be cleaned and replaced according to manufacturer's instructions, or more frequently in periods of intensive use (more than 4 hours a day). If a gas cooker is used it is forbidden to leave uncovered flame.
ИСПОЛЬЗОВАНИЕ BENUTZUNG БЕЗОПАСНОСТЬ ЭКСПЛУАТАЦИИ BENUTZUNGSSICHERHEIT Sämtliche Sicherheitsmaßnahmen, die in der Следует безусловно соблюдать указания по vorliegenden Bedienungseinleitung vorgeschrieben безо п а с н о с т и , п р и вед е н н ы е в н а с то я ще м sind, sollen unbedingt eingehalten werden! руководстве! Fett- und Kohlefilter sollten gemäß...
CARE AND MAINTENANCE Regular maintenance and cleaning of the device will guarantee its good and fault-less operation, and extend its life. Attention should be paid to replacing grease and charcoal filters according to manufacturer's instructions. METAL GREASE FILTER Cleaning Grease filters should be cleaned every two months during normal operation of the hood, in a dishwasher or manually, using mild detergent or liquid soap.
ОБСЛУЖИВАНИЕ И УХОД PFLEGE UND WARTUNG Durch die regelmäßige Wartung und Reinigung ist Регулярные уход и очистк а обеспечивают guter und fehlerfreier Betrieb und optimale безотказную работу устройства и продлевают срок Lebensdauer des Gerätes gewährleistet. Beim его службы. Следует обращать особое внимание на Austausch der Fett- und Kohlefilter sind besonders замену...
Seite 22
LIGHTING The lighting system consists of halogen lamps or LEDs. Replacement • Using a flat tool or screwdriver prise the frame of the halogen lamp or LED and holding it, remove to the outside. • Replace the halogen lamp or LED using a piece of cloth or paper for that purpose.
ОСВЕЩЕНИЕ BELEUCHTUNG Die Beleuchtung bilden die Halogenlampen oder Система освещения состоит из галогенных ламп LEDs. или светодиодов в зависимости от модели. Замена Austausch • Поддеть рамку, охватывающую плафон • Den Rahmen um das Halogenglas oder LED- галогена или светодиода 1 при помощи glas 1 mit einem Schraubendreher oder einem плоского...
RESPECT FOR THE ENVIRONMENT The documentation provided with this oven has been printed on chlorine free bleached paper or recycled paper to show respect for the environment. The packaging has also been designed to avoid environmental impact. Packaging material is ecological and can be re-used or recycled.
ОХРАНА ОКРУЖАЮЩЕЙ СРЕДЫ UMWELTVERTRÄGLICHKEIT A l s B e i t r a g z u m U m w e l t s c h u t z w u r d e d i e В качестве вклада в охрану окружающей среды, вся Dokumentation dieses Geräts auf chlorfrei gebleichtes документация...
GARANTIEBEDINGUNGEN FÜR HAUSHALTSGERÄTE: 1. Die Garantie für das einwandfreie Funktionieren des Geräts ist für die Dauer von 24 Monaten gültig, gerechnet von dem Tag des Kaufs (es ist jeweils die Rechnung und der Kaufbeleg mit Kauf- und/oder Lieferdatum vorzulegen). Bei Nichtvorlage ist die Reparatur kostenpflichtig.
Seite 27
1. In the event of our products being damaged or experiencing some kind of fault from transport damage, due to incorrect installation by other than trained Kaiser technician or taking improper care of the products, connecting to the wrong power supply, the use of non-recommended cleaning agents and detergents.
Seite 28
CONDITIONS DE GARANTIE POUR LES APPAREILS ÉLECTROMÉNAGERS 1. La garantie pour le bon fonctionnement de l'appareil est valable pour une période de 24 mois à compter de la date d'achat (la facture et la preuve d'achat avec la date d'achat et / ou de livraison doivent être présentées). S'il n'est pas présent, la réparation est susceptible de payer.
УСЛОВИЯ ГАРАНТИИ 1. Гарантия на исправное действие прибора на территории России действительна на период 12 месяцев со дня покупки прибора (подтверждена оттиском печати пункта розничной продажи и подписью продавца). 2. Фирма-изготовитель обеспечивает безвозмездный ремонт в случае обнаружения в гарантийный период заводских...
ГАРАНТІЙНІ УМОВИ 1. Гарантія на справну роботу пристрою є дійсною на період 12 місяців з дня придбання приладу (підтверджена відбитком печатки пункту роздрібної торгівлі ті підписом продавця). 2. Фірма-виробник забезпечує безкоштовний ремонт в разі виявлення у гарантійний період заводського дефекту (невідповідна...
Seite 31
VERKAUFSVERMERK :: PURCHASE MARK :: MARQUE D'ACHAT :: ОТМЕТКА О ПРОДАЖЕ :: ВІДМІТКА ЩОДО ПРОДАЖУ PRODUKT :: PRODUCT :: PRODUIT :: ИЗДЕЛИЕ :: ВИРІБ Elektroherd • Electric cooker • Cuisinière électrique Kühl- Gefriergerät • Fridge/ Freezer • Réfrigérateur/ Электрическая плита • Електрична плита Congélateur •...
Seite 32
в России по сервисному обслуживанию и работе с потребителями Почтовый адрес: 127238, г. Москва, АЯ 46 Тел.: 8 (495) 482-55-74, 8 (499) 488-75-10, 8 (499) 488-76-10 E-Mail: service@kaiser.ru Internet: http://kaiser.ru Представництво в Україні по сервісному обслуговуванню та роботі зі споживачами Тел.: (044) 331-50-77, 331-50-78, 496-55-44 Факс:...
GARANTIEKARTE (Nr. entspricht der Nummer des Geräts, siehe auf der Rückseite dieser Bedienungsanleitung) Die oben angegebenen Garantieverpflichtungen beeinträchtigen nicht die gesetzlichen Verbraucherrechte Wir gratulieren Ihnen zur Anschaffung der Haushaltsgeräte von ausgezeichneter Qualität! Bitte machen Sie sich mit der vorliegenden Garantiekarte vertraut und überprüfen, ob sie richtig ausgefüllt und mit dem Stempel des Verkäufers versehen ist.
ГАРАНТИЙНЫЙ ТАЛОН (№. соответствует номеру аппарата, смотри на задней странице обложки настоящей инструкции) Данные гарантийные обязательства не ограничивают определенные законом права потребителей Поздравляем Вас с приобретением бытовой техники отличного качества! Пожалуйста ознакомьтесь с настоящим гарантийным свидетельством и проследите, чтобы оно было правильно...
Seite 35
Die Herstellerfirma übernimmt keinerlei Verantwortung für die eventuellen Irrtümer und Druckfehler und behält sich das Recht vor ohne Ankündigung im Design und bei der Einrichtung die notwendigen Änderungen, die keinen negativen Einfluss auf die Qualität und Produkteigenschaften haben, vorzunehmen. The manufacturer declines all responsibility for possible mistakes and typing errors and reserves the right to make in design and construction of our own products those changes which do not touch negative influence upon the qualities and properties without a preliminary notification.
