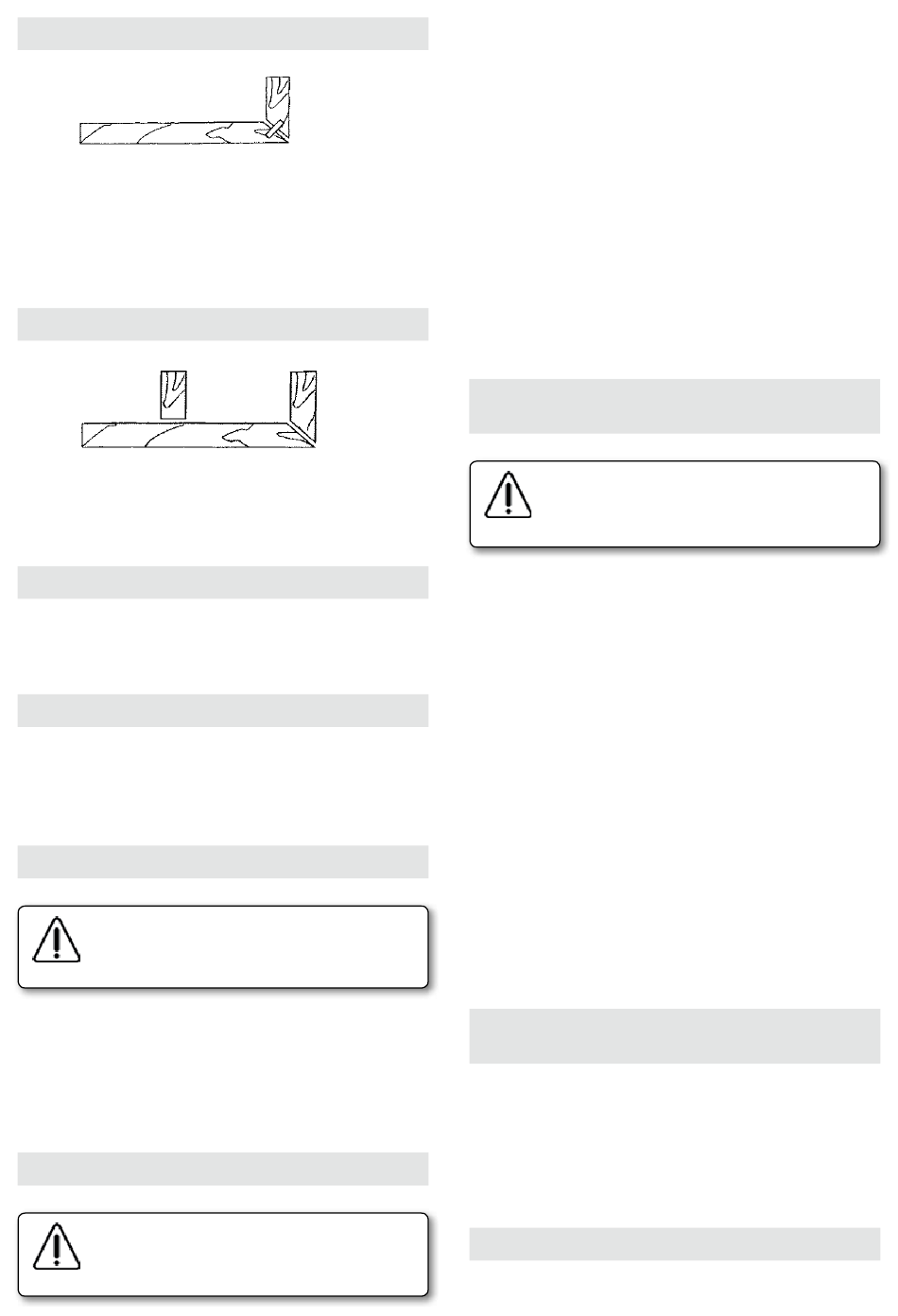

8.3 MITRE JOINTING
..............
For all board thicknesses and angle, use the movable front
panel and the movable fence (Fig. 18 and 19). Example:
45° MITRE JOINT. Position the front movable panel at
the desired distance and the movable fence at 45° (Fig.
20 and 21). Glue and assemble (Fig. 22).
8.4 FRAME JOINTING
.............
Frames can be mitre or square jointed. Two splines are
recommended if the thickness is greater than 25 mm.
(Fig. 23, 24, 25).
8.5 LENGTHWISE JOINTING
For lengthwise jointing, the movable front panel should
be set at board thickness. Proceed as indicated in figures
(Fig. 26, 27, 28).
9. STARTING UP THE MACHINE
To start up the machine, push button R forward (Fig.
14) to the on position.
To stop the machine, simply press the back of the switch
and it will return to the off position.
10. CHANGING THE DISC
Unplug the machine from the electrical
outlet before any maintenance
operations.
Remove the cover A fixing bolts (Fig. 29).
Separate the base from the machine body (Fig. 30).
Remove the disc with the wrench, as shown in (Fig. 31).
Clean the seat and follow the instructions for assembly
in reverse order (Fig. 32).
11. DEPTH ADJUSTEMENT
Unplug the machine from the electrical
outlet before any maintenance
operations.
Put the depth regulator in the nº 20 position and set
the disc outlet at 12 mm with the nuts, maintaining
the machine in the cutting position (Fig. 33 and 34).
To check the depth, cut a groove, insert a piece of board
and mark with a pencil. Turn it over and check that the
mark coincides. If not, correct the defect by adjusting
the nuts. (Fig. 35).
To adjust the depth of the cut to its maximum, to fit
the No.6 splines, position the regulator at number 20
and use the nuts to adjust the outlet of the disc to 20
mm, keeping the machine pressed down in the cutting
position (Figs. 33 and 34).
Recommendations:
Keep the machine clean and lubricate the guides perio-
dically. They should never be left dry (Fig. 36 and 37).
12. MAINTENANCE OF BRUSHES
AND COLLECTOR
Unplug the machine from the electrical
outlet before any maintenance
operations.
Remove screws B (Fig. 38) that fasten the side covers
and detach both.
Remove the brush-holder H (Fig. 39) with small screw-
driver G, using one of the brush-holder side tabs to
lever it out.
Push back the end of spring C.
Keep it in this position to extract the brush and replace
it with a new genuine Virutex brush. Reinsert the brush-
holder, ensuring that it is firmly positioned in the casing
and that each of the brushes exerts a small amount of
pressure on the collector.
Re-attach the covers F with the corresponding screws,
making sure that no wires get caught in the process.
It is advisable to leave the machine running for 15
minutes once the brushes have been changed.
If the collector burns or juts out, it should be serviced
by a Virutex service technician.
Keep the lead and plug in good working condition.
13. MOUNTING INSTRUCTIONS
SUCTION NOZZLE
Remove the cover E bolt D (Fig. 40).
Introduce the nozzle through the guides up to its limit
(Fig. 41), previously secure the optional aspiration tube
6446073 to the nozzle.
Replace the bolt D, pressing the nozzle against the
cover (Fig. 42).
14. OPTIONAL ACCESSORIES
1440382 HM blade d.100x4
