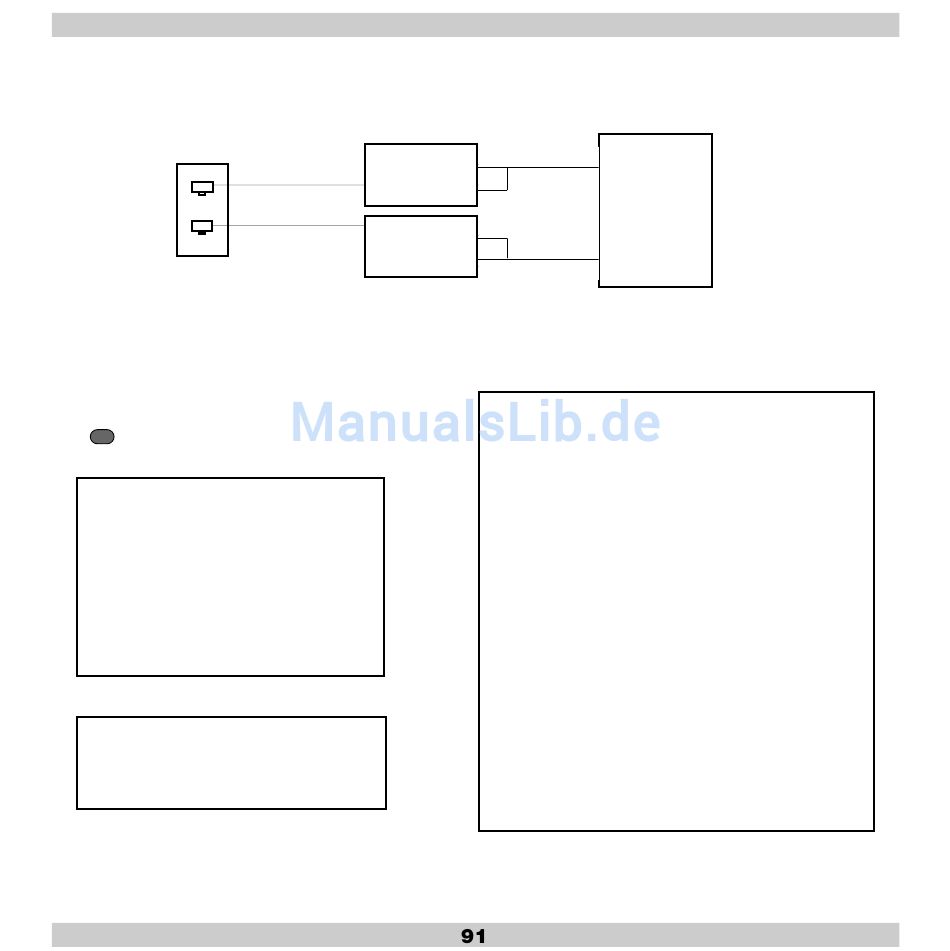

Using CSU/DSU's
Connect the RS366/V35 cable to NET 1 and CSU#1
Connect the RS366/V35 cable to NET 2 and CSU#2 .
Circuit #1
Circuit # 2
Wall Socket
The cable set consists of a pair of RS-366/V.35 cables cable and should be connected thus:
Configuration of MasterVision
MENU
Press
on the remote control. Select 'Terminal Settings'.
Select 'Current Network: External' and check the following:
==== External Network Settings ====
Call Control:
RS366 Dialling
Leased Line
Data Triggered
Manual
Network Clocking:
RS449/V35 Compatible
X21 Compatible
Advanced Network Settings
Previous Menu
==== Advanced Network Settings ====
IMUX Default Prefix, Net1:
IMUX Default Prefix, Net2:
IMUX Restrict Offset:
Previous Menu
Clear the 'IMUX Default Prefix, Net1', 'IMUX Default Prefix, Net2' and 'IMUX Restrict Offset'.
If the CSU's are connected and configured properly (see next page), you are now ready to make your videoconferencing calls.
Videokonferenzsystem MasterVision 8000
RS-366
V.35
RS-366
V.35
CSU's
_____
_____
___
RS-366
Net 1
Net 2
MasterVision
Master Vision 6000
VISION
V.35/RS-366 cable
Signal Name
Female
44pin DSUB
Frame ground
1
Signal ground
15,25,28,44
TX(A), transmit data
29
TX(B)
30
RX(A), receive data
40
RX(B)
39
RCLK(A), rcv clock
37
RCLK(B)
38
TCLK(A), xmt clock
41
TCLK(B)
42
DTR
8
RTS
7
RI
43
RLSD
36
DSR
6
RS366 DPR
9
RS366 ACR
10
RS366 CRQ
11
RS366 PND
12
RS366 DLO
13
RS366 NB1
21
RS366 NB2
22
RS366 NB4
23
RS366 NB8
24
RS366 DSC
14
RS366 GND
35
Anhang 2
Male 34pin
Male 25pin
Winchester
DSUB
A
B
P
S
R
T
V
X
Y
AA
H
C
L, J
F
E
2
3
4
5
22
14
15
16
17
13
7
