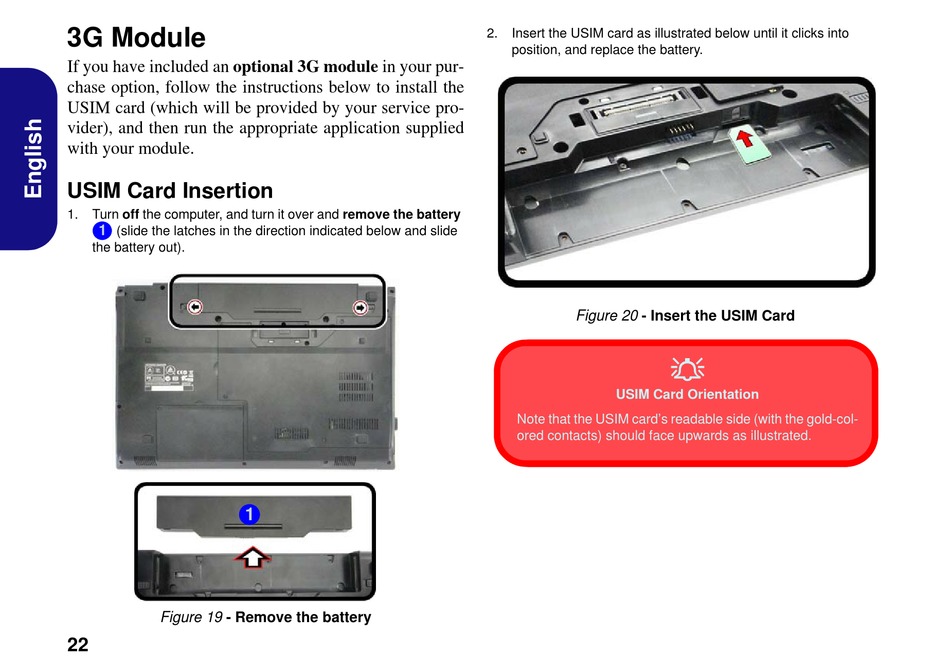

3G Module

If you have included an optional 3G module in your pur-
chase option, follow the instructions below to install the
USIM card (which will be provided by your service pro-
vider), and then run the appropriate application supplied
with your module.
USIM Card Insertion
1. Turn off the computer, and turn it over and remove the battery
1
(slide the latches in the direction indicated below and slide
the battery out).
1
Figure 19 - Remove the battery
22
2. Insert the USIM card as illustrated below until it clicks into
position, and replace the battery.
Figure 20 - Insert the USIM Card
USIM Card Orientation
Note that the USIM card's readable side (with the gold-col-
ored contacts) should face upwards as illustrated.

