System Map: Front, Rear, Bot tom & Top Views
2
3
8
9
.If your purchase includes the docking station, open the docking port cover latch and align the
computer with the placeholder on the docking station (see the accompanying docking station for
full details of the docking procedure).
Front
1
Rear 4
4
5
7 6
6
6
9

Docking
1. LED Indicators
2. Touchpad Switch
3. Security Lock Slot
4. Battery
5. Docking Port
6. Vent
7. Component Bay Cover
10
8. Hard Disk Bay Cover
9. Speakers
10. Docking Station

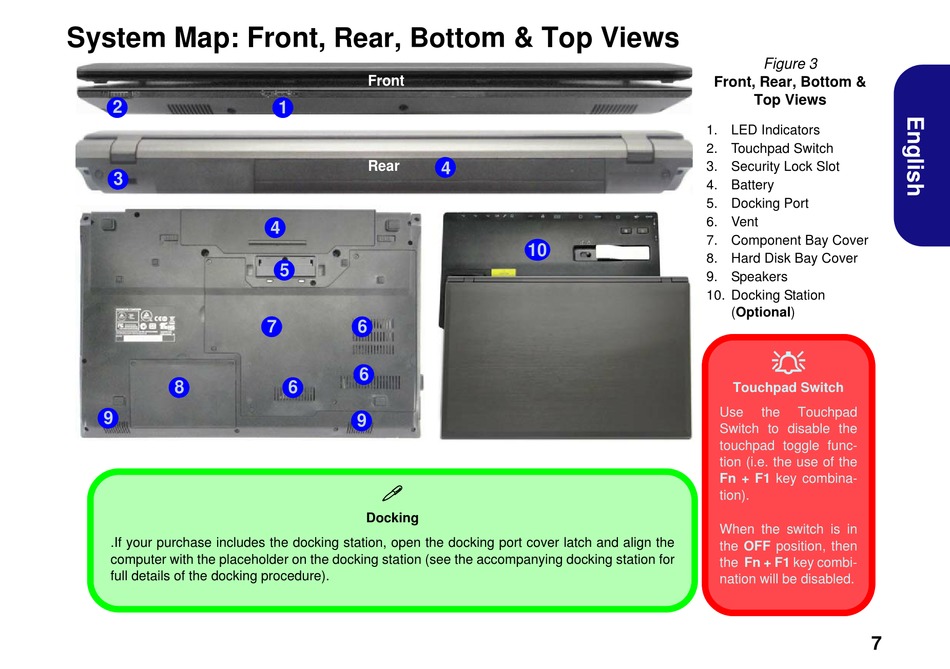

Figure 3
Front, Rear, Bottom &
Top Views
(Optional)

Touchpad Switch
Use the Touchpad
Switch to disable the
touchpad toggle func-
tion (i.e. the use of the
Fn + F1 key combina-
tion).
When the switch is in
the OFF position, then
the Fn + F1 key combi-
nation will be disabled.
7
