Compact RTD temperature sensor
7.

Electrical connection in explosion hazardous areas

The TE2 with Pt100 output can be used in explosion hazardous areas of zone 0, zone 1 and zone 2.
DANGER
Risk of fatal accident due to a wrongly connected sensor
Correct gas protection can only be achieved by meeting their installation requirements.
Make sure that all requirements are met and that sensor and installation have a valid approval
f „
for their specific explosive atmosphere.
In explosive gas atmospheres of zone 0, zone 1 or zone 2, use Zener barriers.
f „
Allow only persons trained in explosion protection to perform the installation.
f „
7.1 Explosive atmospheres zone 0, zone 1 and zone 2
The TE2 with Pt100 output (no transmitter) can be used in explosion hazardous areas of zone 0, zone 1 and
zone 2.
Approval for TE2-x.x.xx19.xxxx.x: Ex ia IIC T5/T6 Ga simple apparatus and Ex ia IIIC T135 °C Da simple
apparatus.
All TE2 in zone 0, zone 1 and zone 2
Use Zener barriers.
f
„
Comply with the following temperatures,
f
„

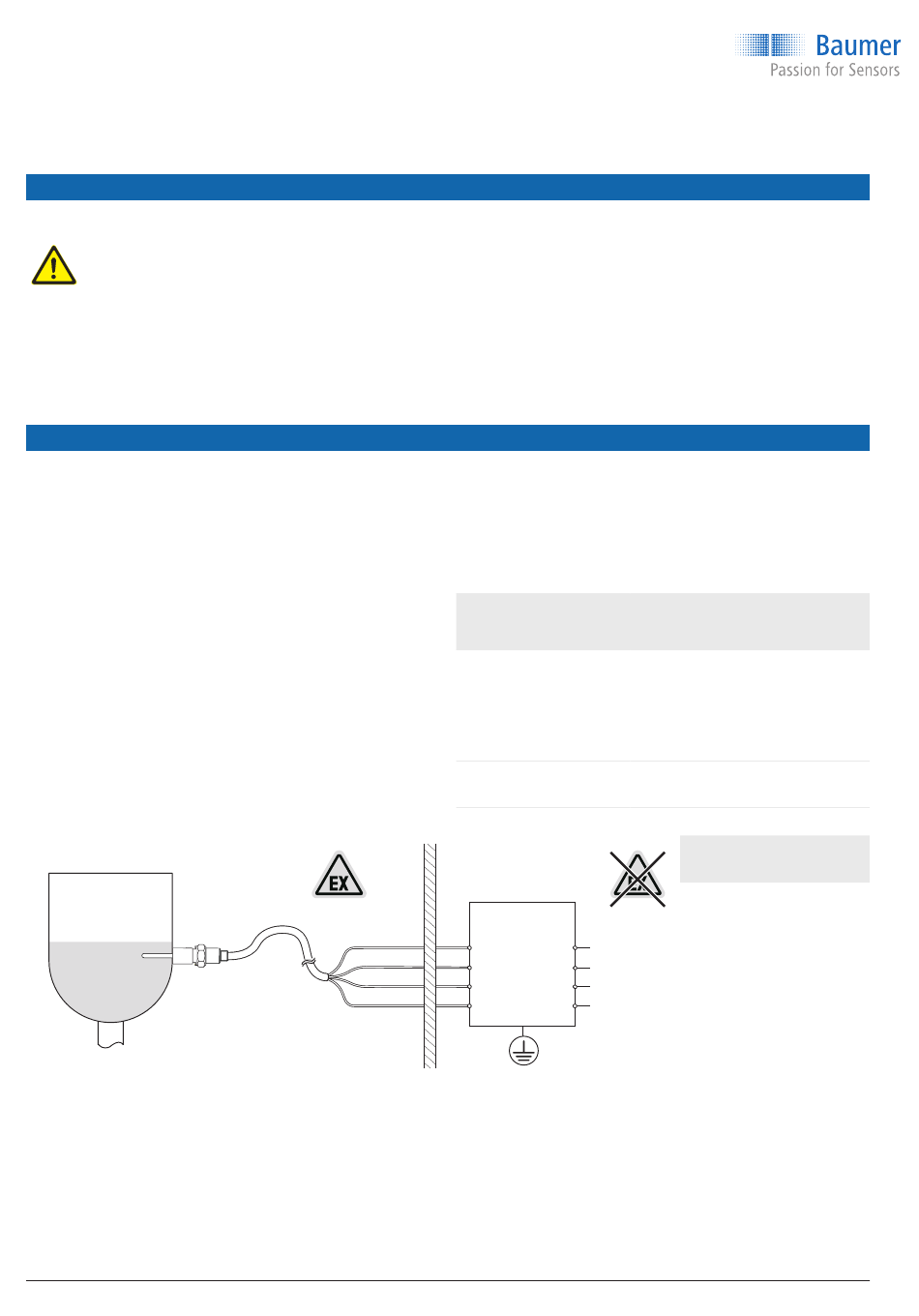

connection values and circuit diagram.
8 / 32

Temperature measurement

TE2
1
3
2
4
Operating Instructions
Ex ia IIC T5/T6 Ga simple apparatus
Ex ia IIIC T135 °C Da simple apparatus
Limit values
Temperature class
2-wire
2-wire
3-wire
4-wire
Ui: 15 V DC
Ii: 50 mA
Pi: 25 mW
Ci: 0 nF
Li: 0 µH
T1...T5: –40 < Tamb < 85 °C
T6: –40 < Tamb < 55 °C
Function M12-A
4-pin
Pt100 11 1, 2
Pt100 12 3, 4
