Contractor ECO-series Betriebsanleitung Seite 47

7.2. Pneumatic circuit diagram

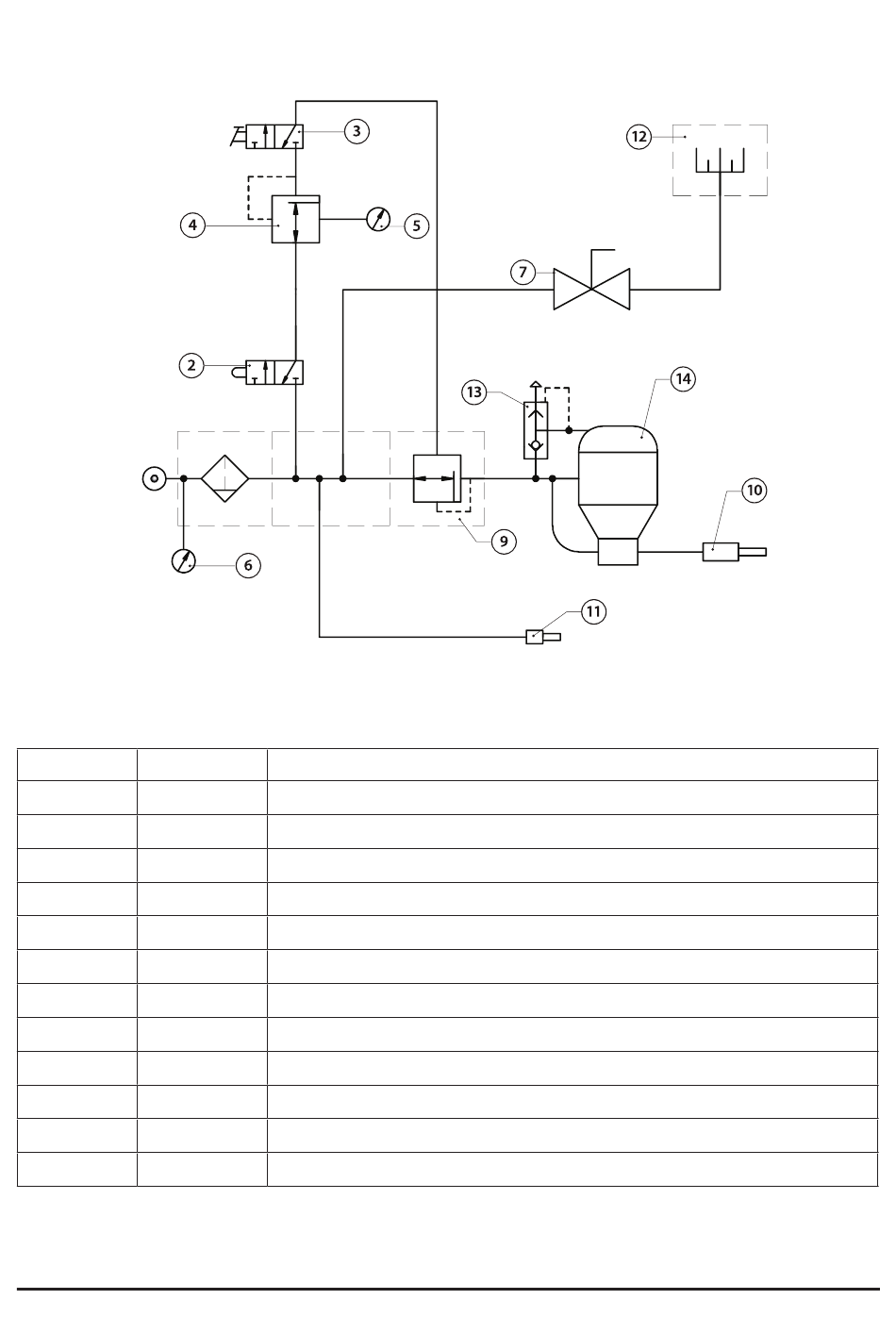

Pic. 7.2.1. Pneumatic circuit diagram special model ECO-80P/100P/120P/140P
Pos. No Order code
2 51203007
3 51203003
4 51201001
5 51202010
6 10130404
7 10110525
9 51203002
10 10112551
11 10115901
12 22070106
13 51203005
14 22040001
CONTRACOR ECO-series pressure blast cabinets
®
Description
Door interlock 1/8"
Pneumatic foot pedal
Pressure regulator, 1/4"
Panel mounting pressure gauge 1/8"
Pressure gauge 1/8" (rubber cover)
Ball valve, 1/2", (FM)
Pressure regulator 1", pilot operated
NTC-5.0, Short Venturi nozzle, tungsten carbide, 5.0 mm x 45 mm
Air blow-off nozzle, rubber
Cartridge filter for DC-370
Blow-out valve, ECO-series
Blast machine assembly, 13 liter, for ECO-series
47
