LF Plus
Low FLow industriaL motor driven diaPhragm PumPs

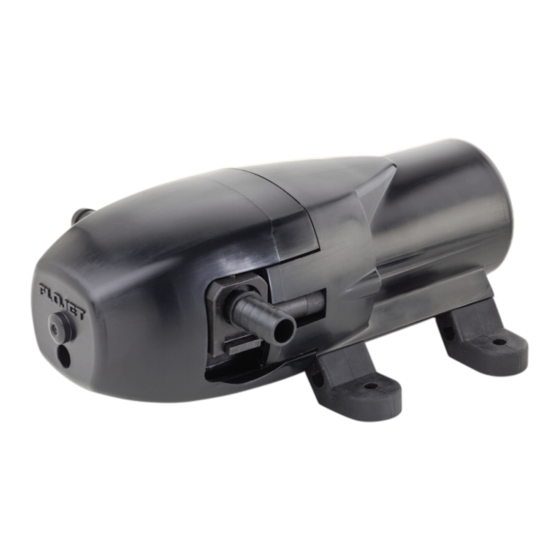

The New LF Plus Motor Driven Industrial Pumps are backed by
Flojet's diaphragm pump technology, a brand enjoying over
35 years of operational excellence.
Flojet's new LF Series compact pumps offer up to a 1.0 GPM (3.8 LPM) flow
rate and optional industry leading switch technology, proven with over
1 million cycles. The 360° quick connect swivel ports allow for complete
freedom of port orientation, a cost effective solution, minimizing the need
for additional components. These pumps are the ideal solution for many
applications including spraying, fluid transfer, filtration, cooling, dispensing
and pressure boosting.
The Flojet LF Plus pumps are made from Geolast® or Santoprene®
diaphragm and EPDM or Viton® check valves, resulting in true
compatibility with most harsh and abrasive chemicals.
Features and Benefits
• Flow rates up to 1.0 GPM (3.8
LPM) and operating pressures up
to 40 psi (2.75 bar)
• Demand (pressure switch shut-off)
or non-switch models available
• Bypass option reduces cycling,
offering ideal pressures of 0.2 to
0.3 GPM for backpack spraying
• Robust material selection,
suitable for handling a broad
range of chemicals
• Sealed motor and pressure
switch, providing years of
dependable reliability
• Flojet Diaphragm pumps provide
dependable run dry capabilities,
extending the life of the pump
• Self priming, accommodating up
to 6ft (1.8m)
• Built in thermal protector,
prevents overheating to protect
the pump from damage
• Quick Disconnect Ports allow for
quick cleaning and easy hose
replacement in seconds
• Low amp draw, ideal for battery
powered applications
