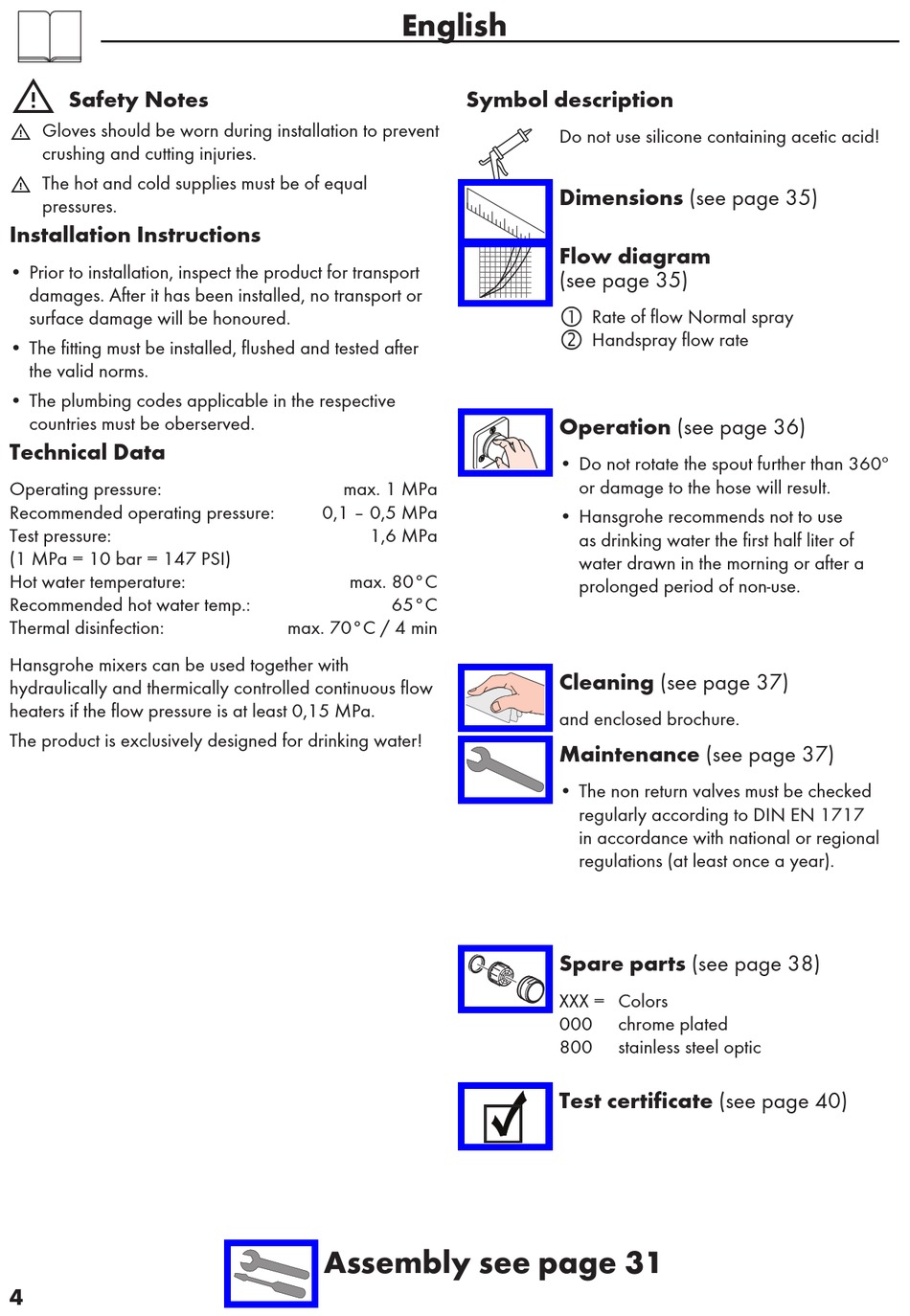

Safety Notes

Gloves should be worn during installation to prevent
6
crushing and cutting injuries.
The hot and cold supplies must be of equal
6
pressures.

Installation Instructions

• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The fitting must be installed, flushed and tested after
the valid norms.
• The plumbing codes applicable in the respective
countries must be oberserved.

Technical Data

Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Thermal disinfection:
Hansgrohe mixers can be used together with
hydraulically and thermically controlled continuous flow
heaters if the flow pressure is at least 0,15 MPa.
The product is exclusively designed for drinking water!
4
English
max. 1 MPa
0,1 – 0,5 MPa
1,6 MPa
max. 80°C
65°C
max. 70°C / 4 min
Assembly see page 31

Symbol description

Do not use silicone containing acetic acid!
Dimensions (see page 35)

Flow diagram

(see page 35)

Rate of flow Normal spray

Handspray flow rate
Operation (see page 36)
• Do not rotate the spout further than 360º
or damage to the hose will result.
• Hansgrohe recommends not to use
as drinking water the first half liter of
water drawn in the morning or after a
prolonged period of non-use.
Cleaning (see page 37)
and enclosed brochure.
Maintenance (see page 37)
• The non return valves must be checked
regularly according to DIN EN 1717
in accordance with national or regional
regulations (at least once a year).
Spare parts (see page 38)
XXX = Colors
000 chrome plated
800 stainless steel optic
Test certificate (see page 40)
