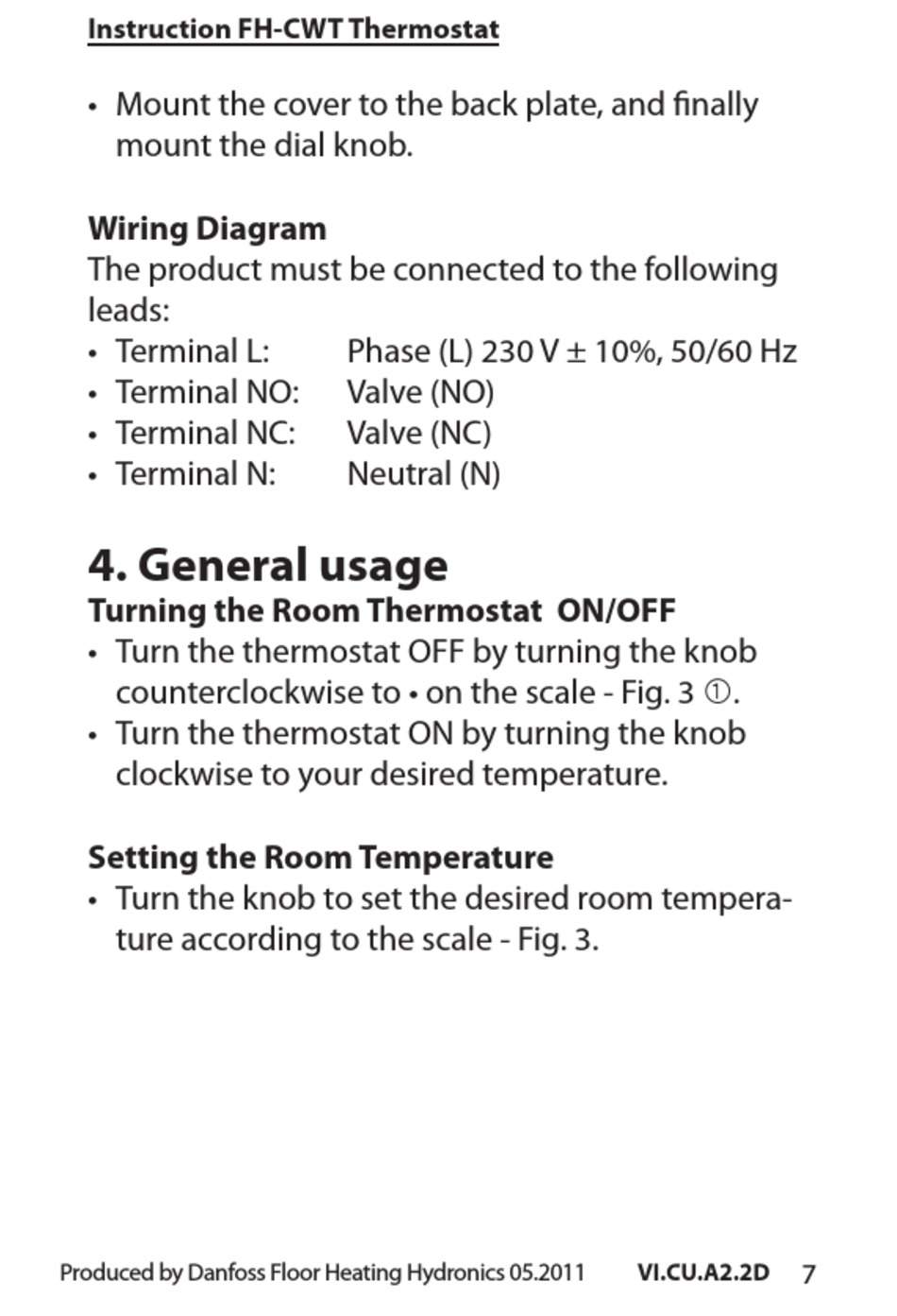

Instruction FH-CWT Thermostat
• Mount the cover to the back plate, and finally
mount the dial knob.

Wiring Diagram

The product must be connected to the following
leads:
• Terminal L:
• Terminal NO:
• Terminal NC:
• Terminal N:

4. General usage

Turning the Room Thermostat ON/OFF
• Turn the thermostat OFF by turning the knob
counterclockwise to • on the scale - Fig. 3 .
• Turn the thermostat ON by turning the knob
clockwise to your desired temperature.
Setting the Room Temperature
• Turn the knob to set the desired room tempera-
ture according to the scale - Fig. 3.
Produced by Danfoss Floor Heating Hydronics 05.2011
Phase (L) 230 V ± 10%, 50/60 Hz
Valve (NO)
Valve (NC)
Neutral (N)
