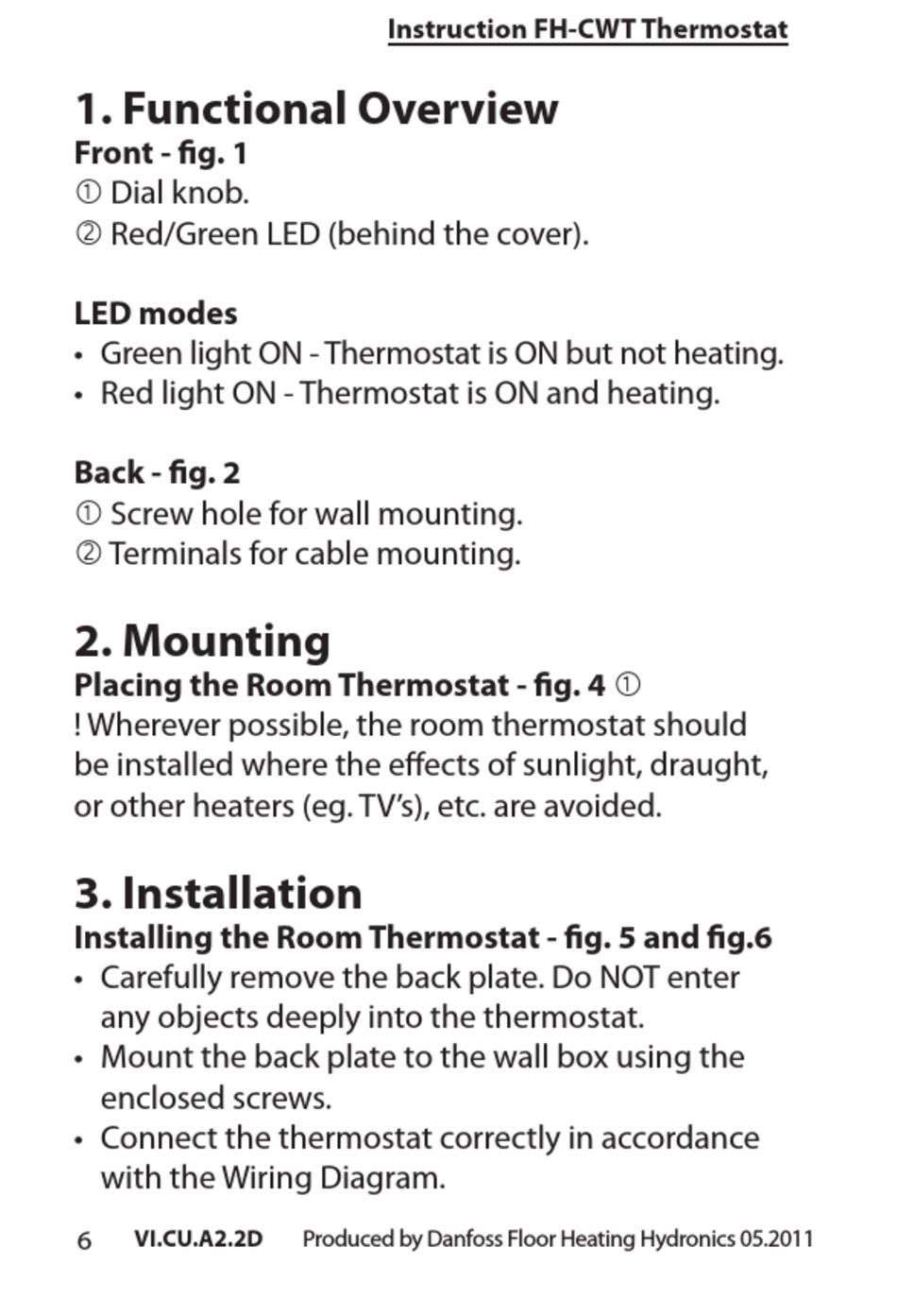

1. Functional Overview

Front - fig. 1
 Dial knob.
 Red/Green LED (behind the cover).
LED modes
• Green light ON - Thermostat is ON but not heating.
• Red light ON - Thermostat is ON and heating.
Back - fig. 2
 Screw hole for wall mounting.
 Terminals for cable mounting.

2. Mounting

Placing the Room Thermostat - fig. 4 
! Wherever possible, the room thermostat should
be installed where the effects of sunlight, draught,
or other heaters (eg. TV's), etc. are avoided.

3. Installation

Installing the Room Thermostat - fig. 5 and fig.6
• Carefully remove the back plate. Do NOT enter
any objects deeply into the thermostat.
• Mount the back plate to the wall box using the
enclosed screws.
• Connect the thermostat correctly in accordance
with the Wiring Diagram.
6
VI.CU.A2.2D
Instruction FH-CWT Thermostat
Produced by Danfoss Floor Heating Hydronics 05.2011
