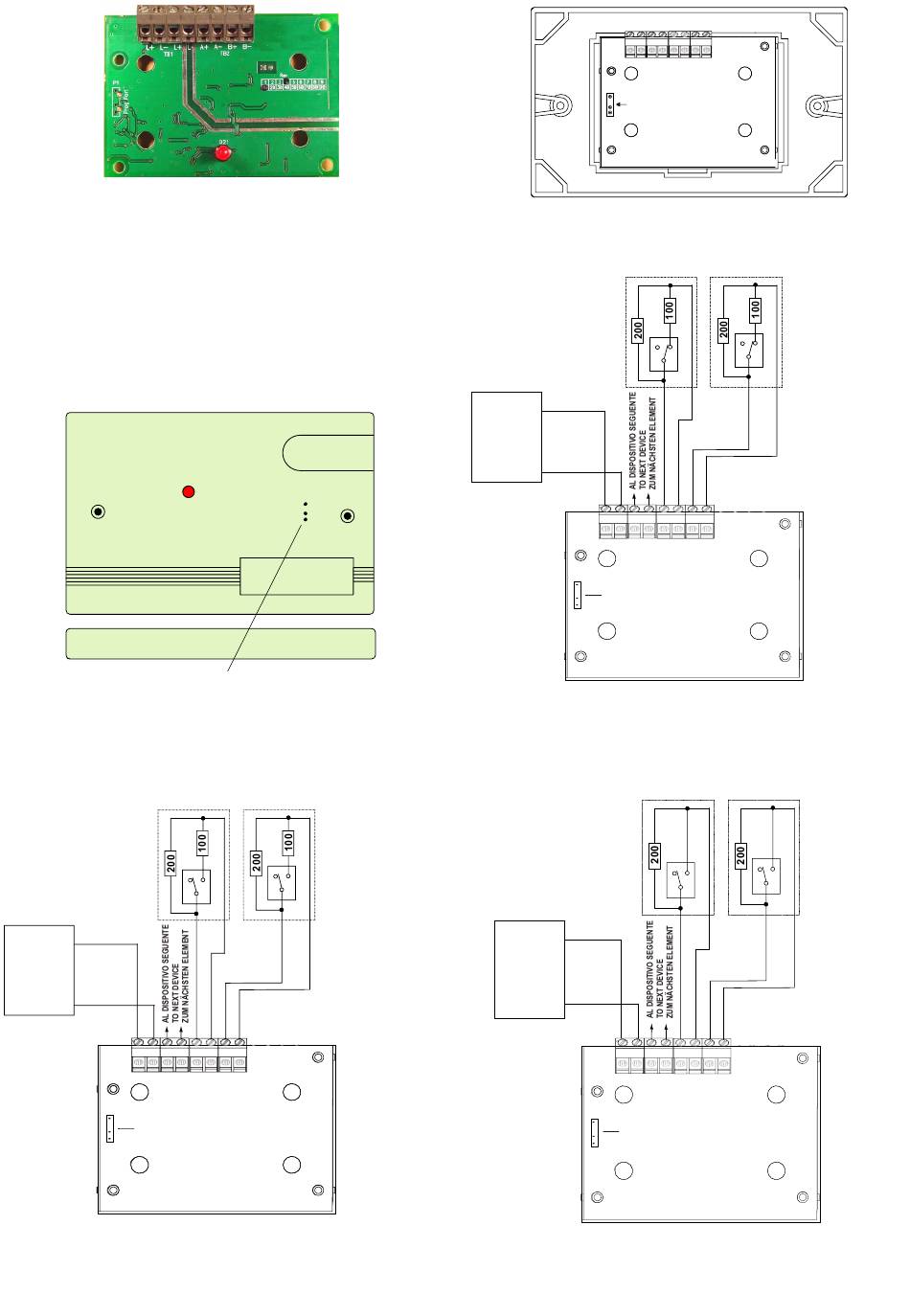

FireClass FC410CIM Kurzanleitung Seite 4

FIG. 1
FC410CIM Mo du lo a 2 in gres si
FC410CIM Con tact In put Mod ule
FC Ein gan gse le ment für Kon tak te,über wacht - FC410CIM
PORTA DI PROGRAMMAZIONE
ADDRESS SETTING PORT
PROGRAMMIERANSCHLUSS
FIG. 3 FC410CIM Plac ca
FC410CIM Fa cia Plate
Kurzschlus si so la tor Vor der se i te
CENTRALE FC
FC CONTROLLER
+L1
LEFT
-L1
L+ L- L+ L-
TB1
PORTA DI PROGRAMMAZIONE
PROGRAMMING PORT
PROGRAMMIERSTECKER
FIG.5
Cir cu i to SPUR (Clas se B) Con tat ti nor mal men te aper ti
Spur Cir cuits (Class B) Nor mally Open Con tacts
SStic hle i tung, Schlie ßer-Kon tak te; Stic hle i tungskurzschlus ser gibt „Stö rung"
Corto circuito A+ e A- o B+ e B- = Guasto
Short Circuit A+ to A- or B+ to B- = Fault
A+ A- B+ B-
TB2
TB1
L+ L- L+ L-
PORTA DI PROGRAMMAZIONE
PROGRAMMING PORT
PROGRAMMIERANSCHLUSS
FIG. 2 FC410CIM fissata al co per chio
FC410CIM fit ted to cover
FC410CIM ins Geh äu se ein geb äut
CENTRALE FC
FC CONTROLLER
+L1
LEFT
-L1
L+ L- L+ L-
TB1
PORTA DI PROGRAMMAZIONE
PROGRAMMING PORT
PROGRAMMIERSTECKER
FIG.4
Cir cu i to SPUR (Clas se B) Con tat ti nor mal men te chiu si.
Spur Cir cuit (Class B) Nor mally Closed Con tacts
Stic hle i tung, Öffner-Kon tak te; Stic hle i tungskurzschluss er gibt „Stö rung"
CENTRALE FC
FC CONTROLLER
+L1
LEFT
-L1
L+ L-L + L-
TB1
PORTA DI PROGRAMMAZIONE
PROGRAMMING PORT
PROGRAMMIERSTECKER
FIG.6
Cir cu i to SPUR (Class B) Con tat ti nor mal men te aper ti
Spur Cir cuits (Class B) Nor mally Closed Con tacts
Stic hle i tung, Schlie ßer-Kon tak te; Stic hle i tungskurzschluss er gibt „Alarm"
TB2
A+ A- B+ B-
Corto circuito A+ e A- o B+ e B- = Guasto
Short Circuit A+ to A- or B+ to B- = Fault
A+ A- B+ B-
TB2
Corto circuito tra A+ e A- o
B+ e B- = Allarme
Short Circuit between A+ and A-
or B+ and B- = Alarm
A+ A- B+ B-
TB2
