Item
Description
Slot 1 PCIe3 x16 (16, 8, 4, 1)*
1
Slot 2 PCIe2 x8 (4,1)*
2
Power supply 2
3
Power supply 1
4
NIC connectors (4 to 1)
5
Serial connector
6
Video connector
7
USB connectors
8
iLO connector
9
* For more information on the riser board slots supported by the onboard PCI riser connectors, see "PCIe
riser board slot definitions (on page 9)."

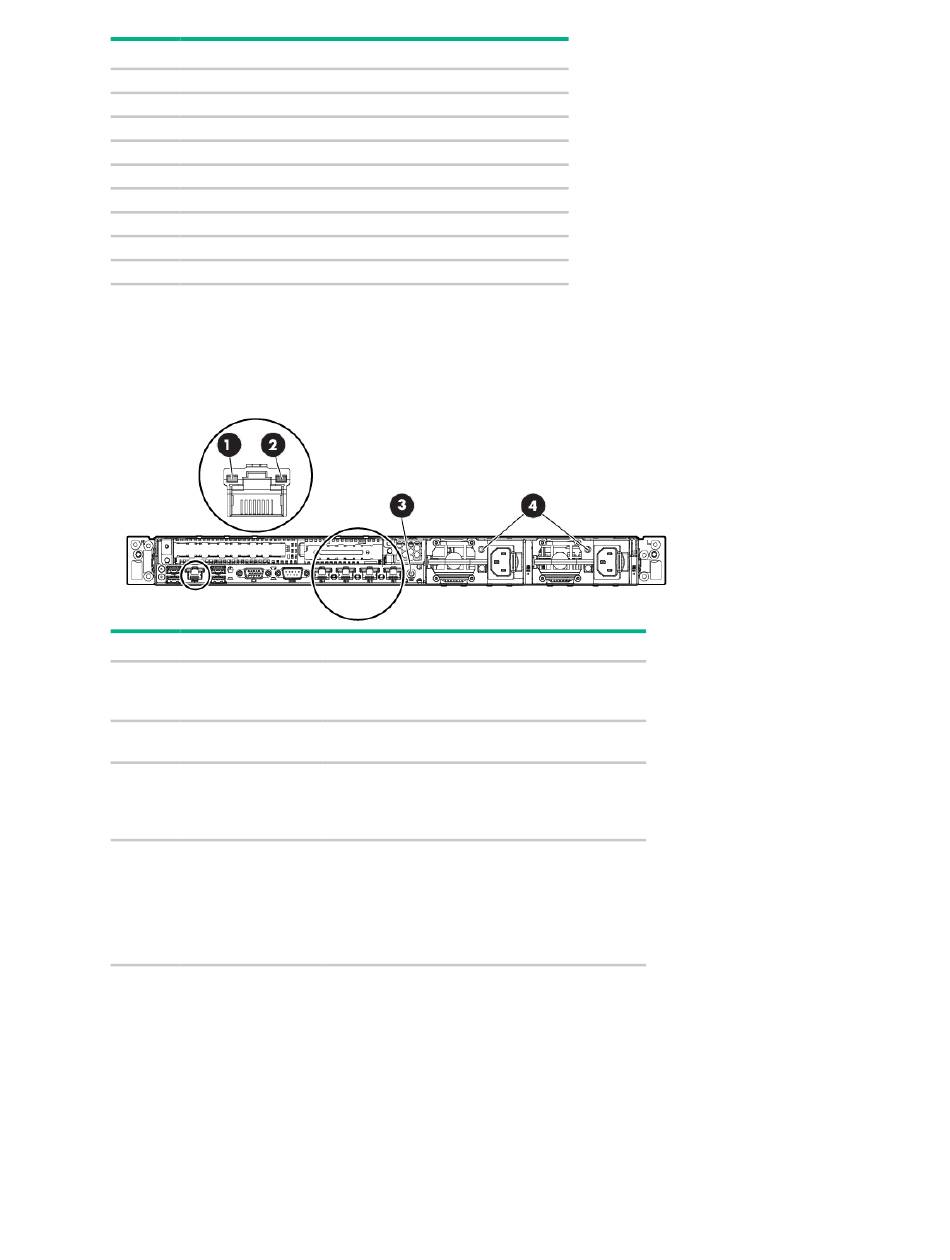

Rear panel LEDs and buttons
Item
Description
NIC status LED
1
NIC link LED
2
UID button LED
3
Power supply LED Green = Normal
4
Status
Solid green = Activity exists
Flashing green = Activity exists
Off = No activity exists
Green = Link exists
Off = No link exists
Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote
management or firmware upgrade in process
Off = Deactivated
Off = On or more of the following conditions
exists
•
Power is unavailable
•
Power supply failed
•
Power supply is in standby mode
Component identification 8
