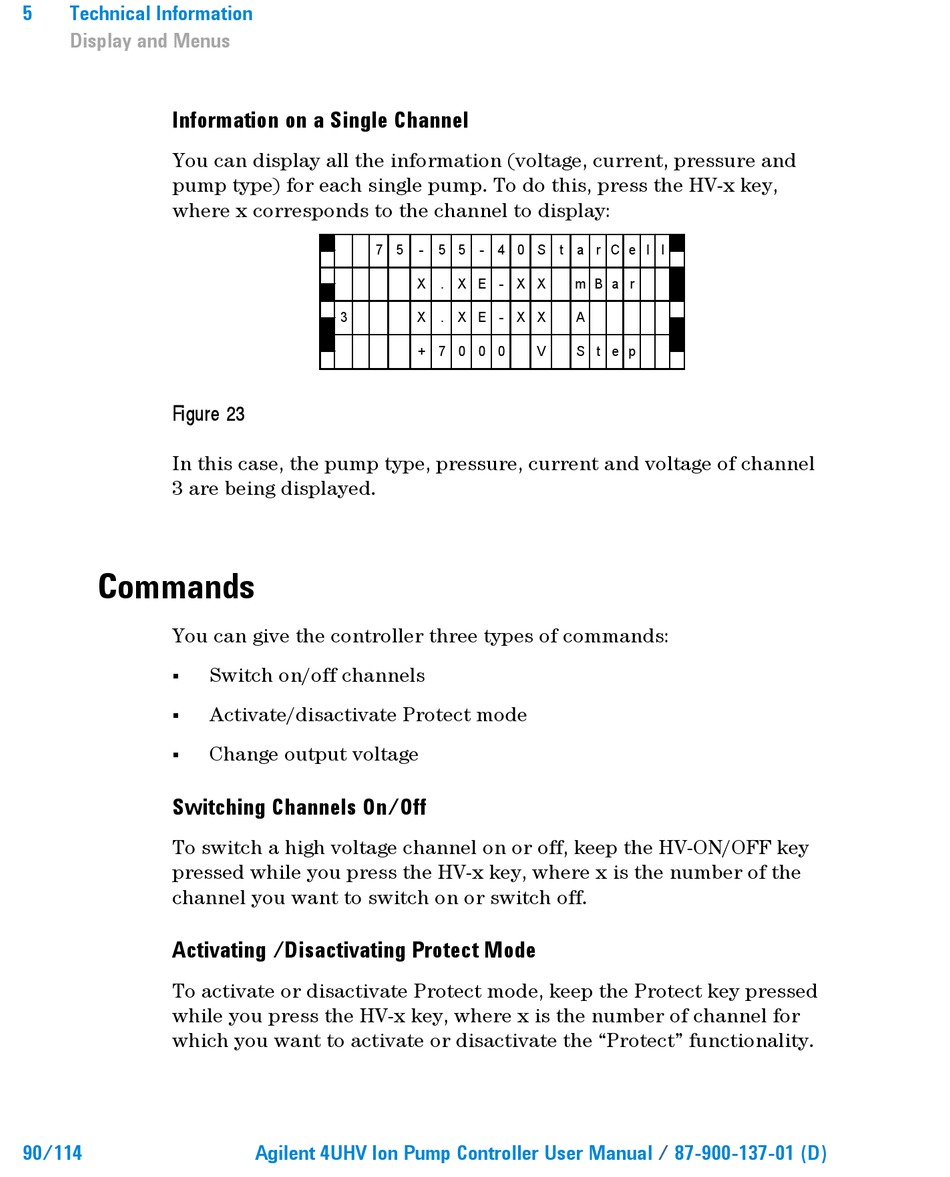

Technical Information
Display and Menus
Information on a Single Channel
You can display all the information (voltage, current, pressure and
pump type) for each single pump. To do this, press the HV-x key,
where x corresponds to the channel to display:
Figure 23
In this case, the pump type, pressure, current and voltage of channel
3 are being displayed.
Commands
You can give the controller three types of commands:
Switching Channels On/Off
To switch a high voltage channel on or off, keep the HV-ON/OFF key
pressed while you press the HV-x key, where x is the number of the
channel you want to switch on or switch off.
Activating /Disactivating Protect Mode
To activate or disactivate Protect mode, keep the Protect key pressed
while you press the HV-x key, where x is the number of channel for
which you want to activate or disactivate the "Protect" functionality.
90/114
7
3
Switch on/off channels
Activate/disactivate Protect mode
Change output voltage
Agilent 4UHV Ion Pump Controller User Manual
5
-
5
5
- 4 0
S
t
X
. X E
-
X
X
X
.
X E - X
X
+ 7 0
0 0
V
a r
C
e l
l
m B
a
r
A
S
t
e
p
/
