Introduction

The wireless image transmission system functions in connec-
tion with the MSA thermal imaging cameras EVOLUTION 4000
and EVOLUTION 5000.
2

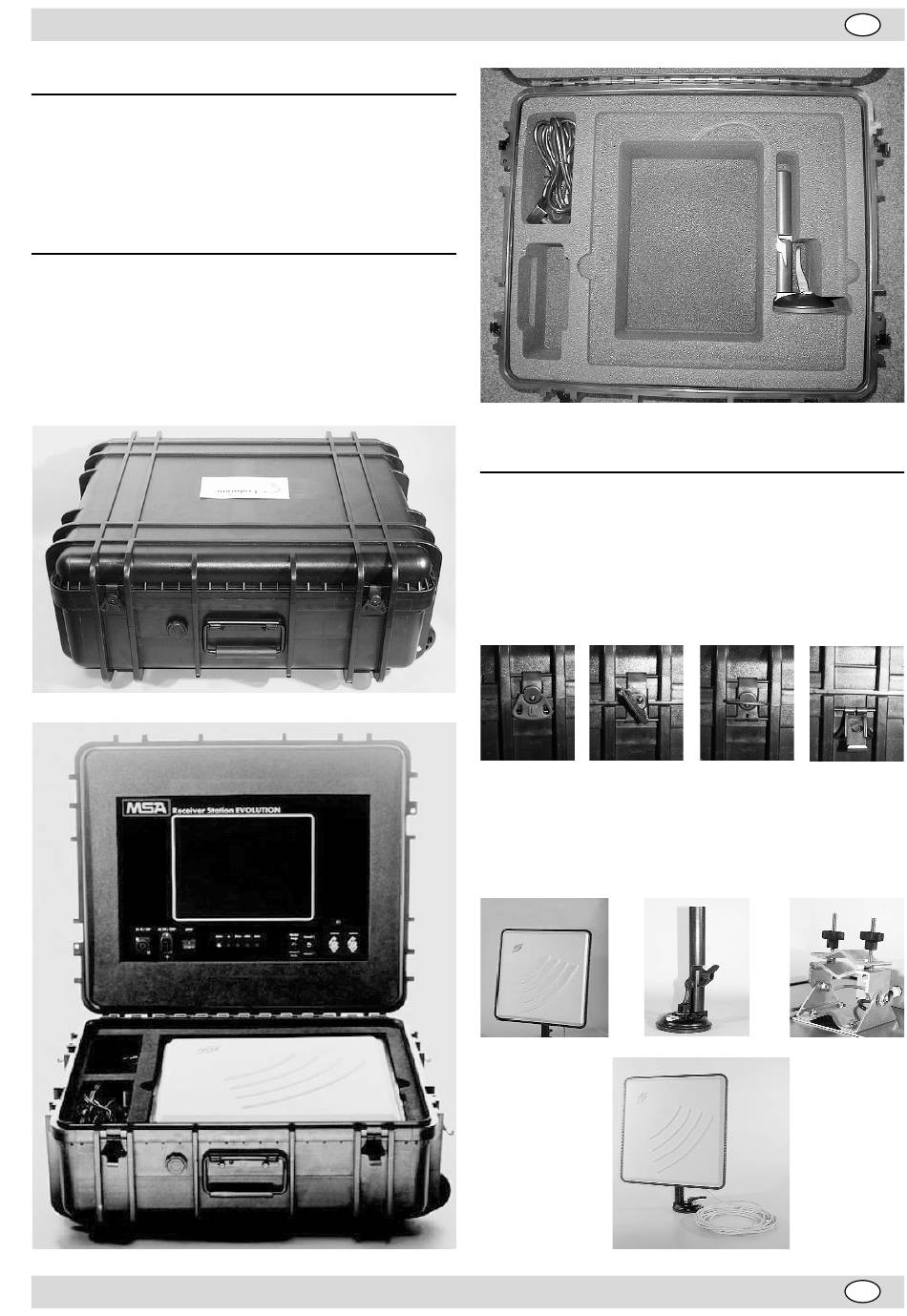

Scope of Delivery

Base Station Order-No.- 10049271 consisting of:
●
Wheeled carrying case
●
Antenna with receiver and 7 meters of connecting cable
●
Suction foot for antenna attachment
●
Mains cable for Europe and Great Britain
●
Vehicle electrical system cable with connecting cable
12
3

Setup

3.1

Start-up of the base station

3.1.1 Opening the case

●
Open bleed valve
●
Rotate case lock ( 6 piece) up and unhook
●
Open lid

3.1.2 Setting up the antenna

Join the antenna firmly to the suction foot and fix it by suction
onto the vehicle or a smooth surface directed towards the place
of use of the camera.
