Input 1
Exit button
Input 2
Door contact
Bolt contact
Option
E.ZU.WL.NT

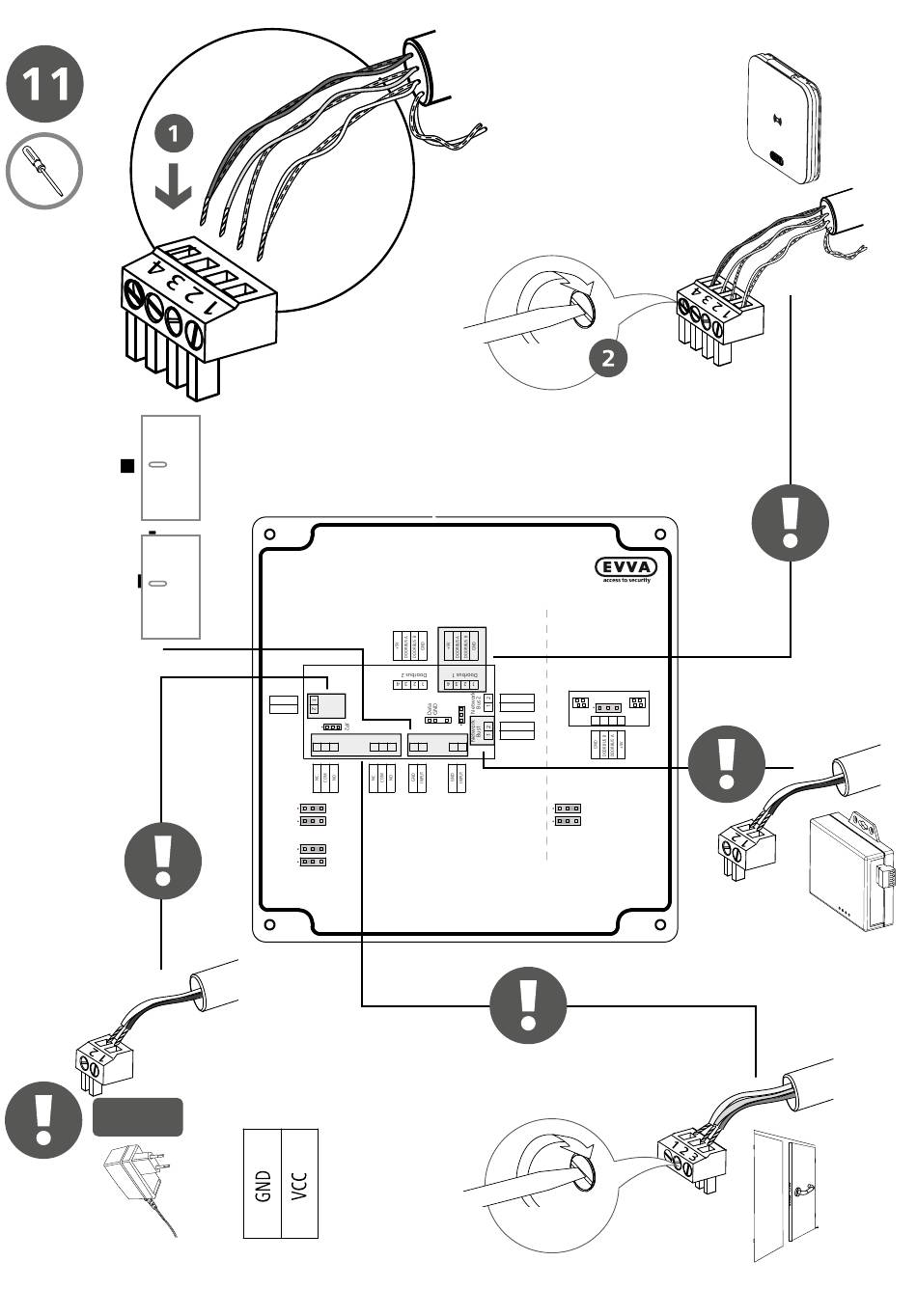

Xesar online control unit
E.X.WL.CU0
GND
Supply
Programming
VCC
interface
12V-24V/DC
Relais 1
Relais 2
1 2 3
1 2
3
Relais 1 & 2 different function (standard)
Relais 1 & 2 same function
JP2
Networkbus terminated (standard)
Networkbus open
JP3
1
2
12V-24V/DC
CAT 5
0,2 Nm
connector board
Wallreader 1
8
JP3
NETWORKBUS A
NETWORKBUS B
1 2 3 4
NETWORKBUS A
NETWORKBUS B
F
Input 1
Input 2
1 2
1 2
JP1
E
D
C
B
0,5 Nm
A
Xesar reader
Wallreader 2
7
JP1
1 2 3 4
Doorbus terminated (standard)
Doorbus open
www.evva.com
6
5
Twisted Pair
