2.3.2 Menu keys

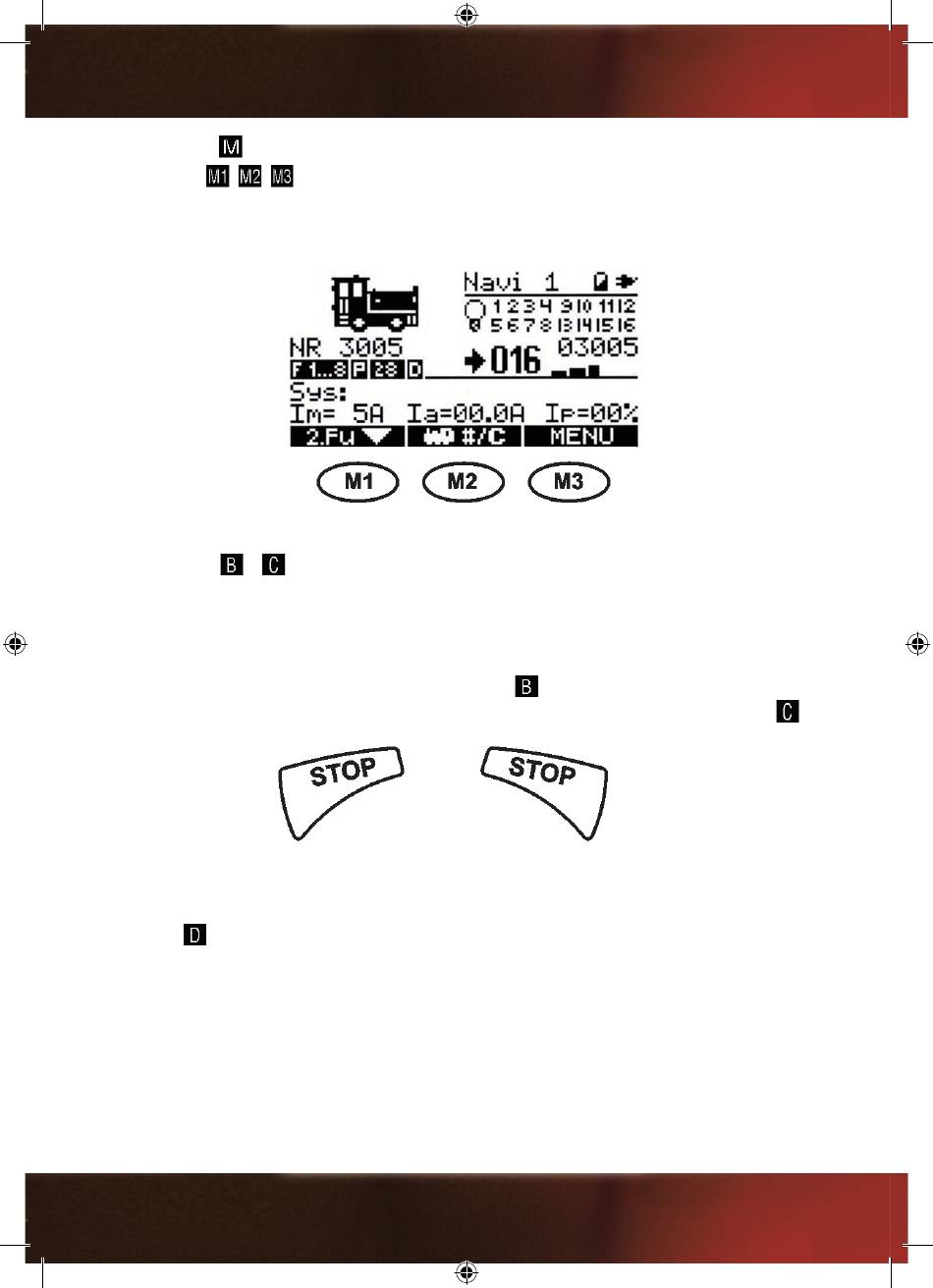

The menu keys of the handheld controller are configured differently depending upon the
, ,
requisite menu functions. The corresponding function key assignments for the menu keys are always
located in the lowest line of the display with white lettering on a black background. The following is
an example:

2.3.3 STOP keys

+
The PIKO Navigator has two separate STOP keys. In this way, two different stop functions
can be initiated independently of one another as needed during operation, including a general
EMERGENCY STOP or a simple STOP LOCOMOTIVE. The configuration of the STOP function is
performed in the menu of the PIKO Navigator (Chapter 5.4.2). In the factory default settings, the
EMERGENCY STOP is initiated using the right STOP key That means that current to the tracks
is immediately shut off. The EMERGENCY STOP can then be recalled with the left STOP key .

2.3.4 Control of primary functions

The primary control functions of the PIKO Navigator are carried out using the round control dial
(depicted as in the drawing). The direction and speed of the locomotive or locomotive consist are
predefined using the regulator.
