2.3.1 The Display

The large graphics display constantly provides detailedinformation regarding the status of the
locomotive und the system. With a surface of over 14 cm2 and a dimension of 54 mm x 26 mm,
the information is easily readable. Among other things, the display during operation shows the
configuration data such as locomotive image, locomotive name, locomotive address, controllable
speed steps, parallel or serial control of functions, active functions from 1 through 16, travel direction,
current speed in speed steps, level indicator for speeds travelled, etc. The display' s backlighting is

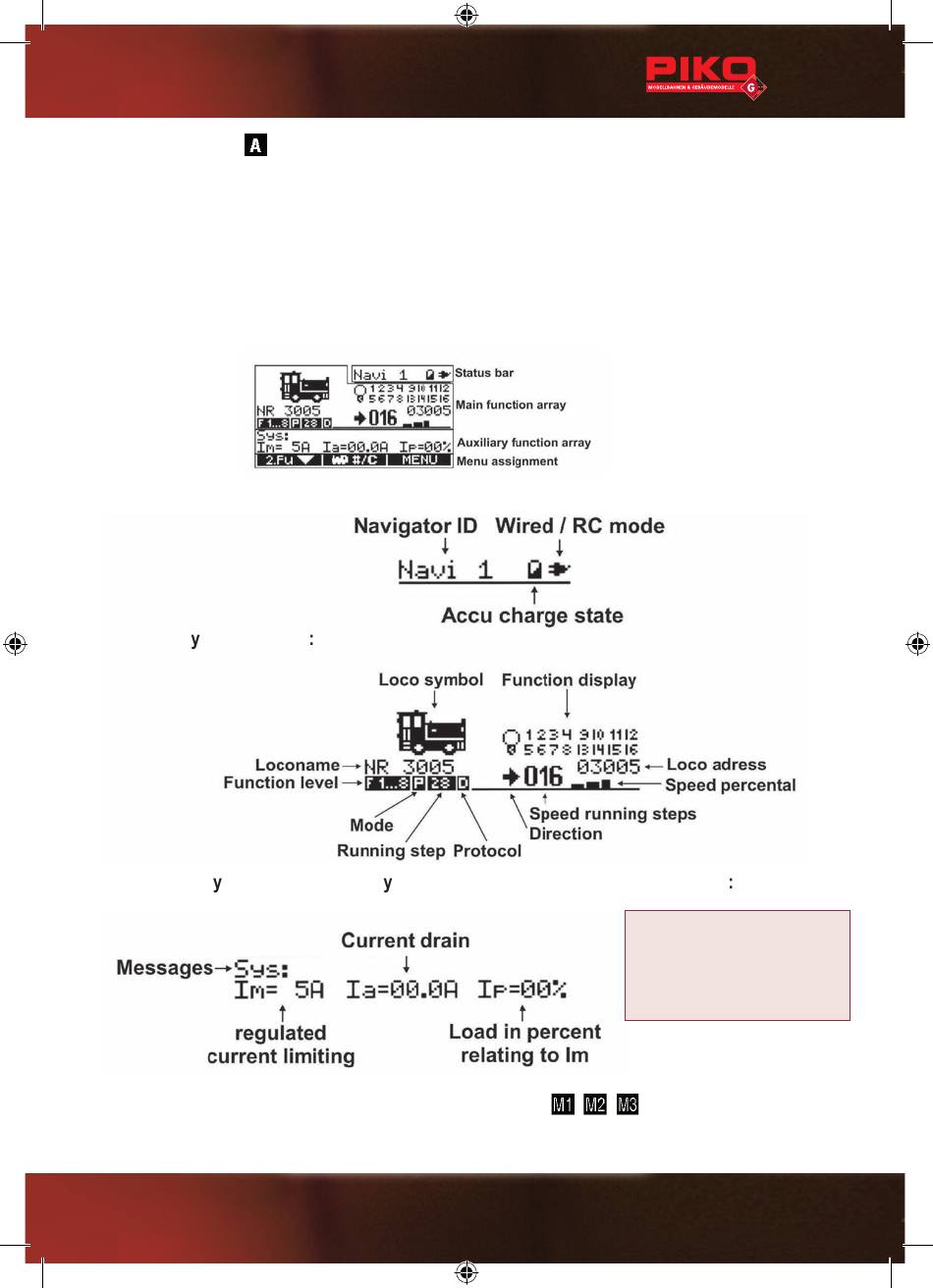

switched on and off in the menu. The following gives the basic breakdown of the display:
The status bar:
The primar function field
The secondar function field displa s the following information when activated
The menu bar displays the current configuration of the 3 key
35017-90-7000_2019_p40-76.indd 47
I
I m = maximum current limit in amperes
I a = current power consumption
I p = workload in %
.
, ,
4 7
= International symbol for electric current
(for PIKO digital command control 5A)
in amperes
