Typical Installation Layout - Riello BAG2 MIX CLIMA Anleitungen Für Den Installateur Und Den Wartungsdienst

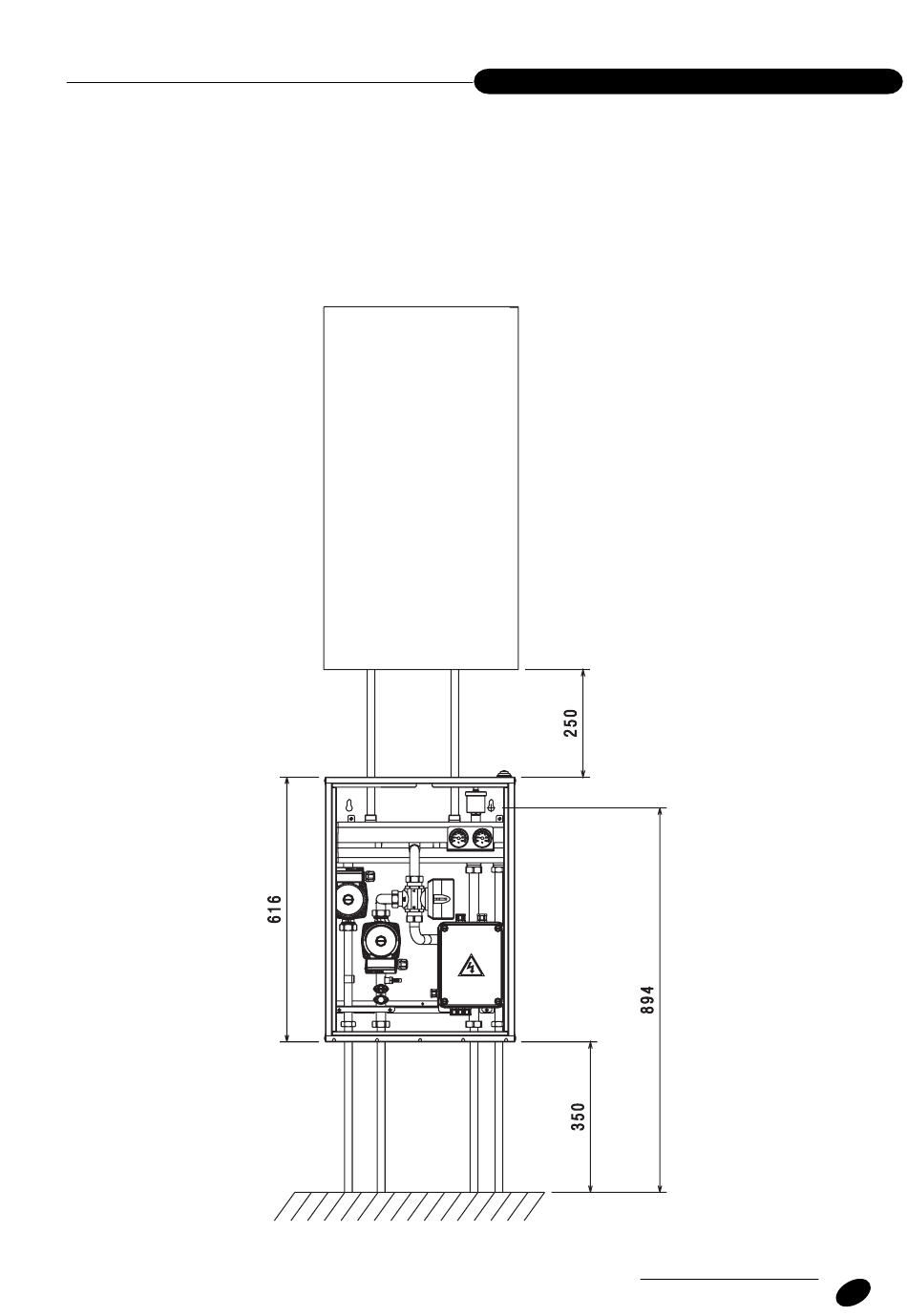

The figure alongside shows a possible way of installing
2
the BAG MIX CLIMA .
NOTE: To allow for installing taps (not supplied) a niche
must be formed of sufficient size to allow them to be fitted
2
below the BAG MIX CLIMA itself.

TYPICAL INSTALLATION LAYOUT
