3M ™ Folding Wall Mount SCPFWMSV2

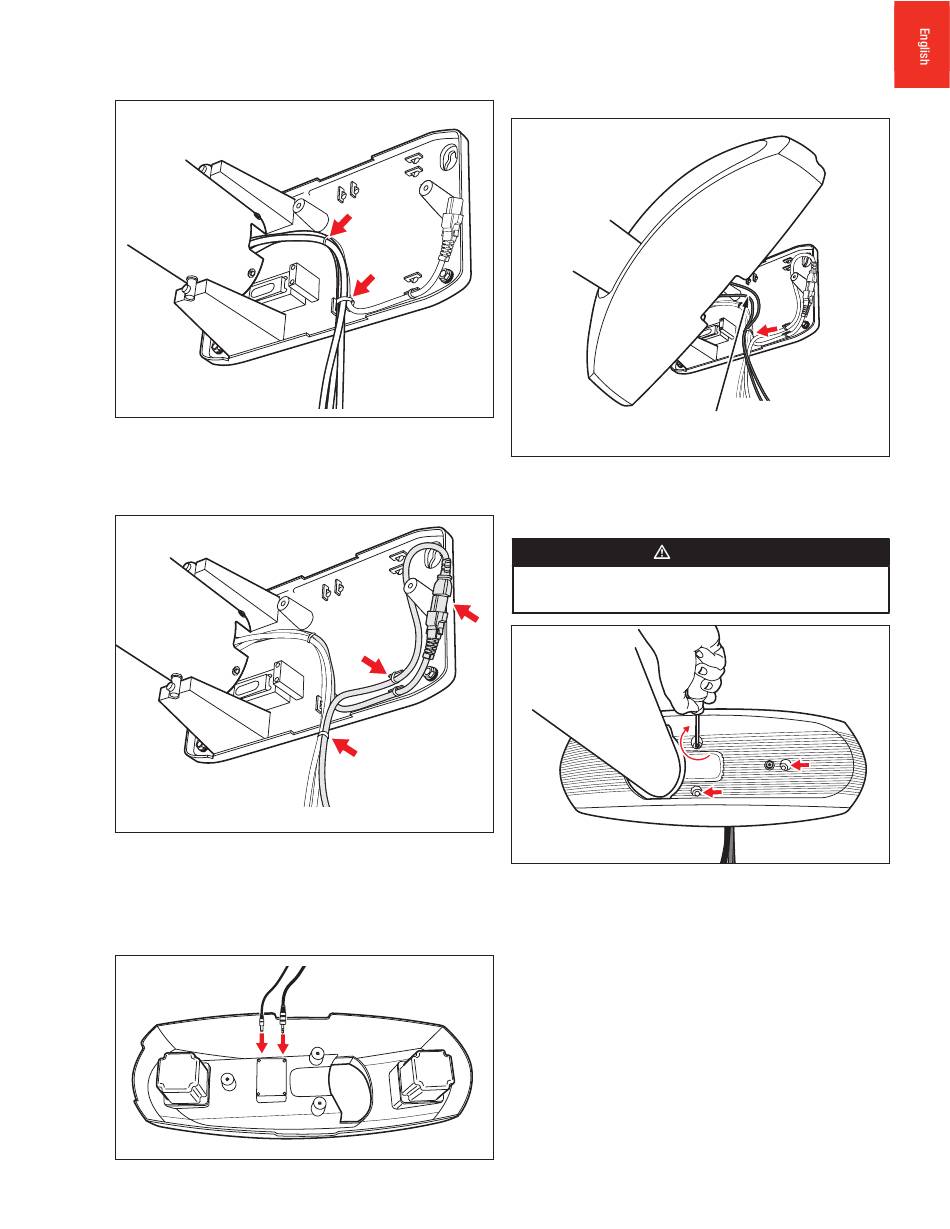

9.3 Route the security cable alongside the bundled cables
and attach using cable ties.
10.0 Connect Power Extension Cable
10.1 Connect the power extension cable as shown. Secure
with cable ties.
11.0 Connect Audio Cables
(SCPFWMSV2 only)
11.1 Connect the power and audio cables to the
connections inside the cover.
Power
© 2009 3M. All Rights Reserved.
Audio
11.2 Slide the cover over the arm. Attach the power and
audio cables to the existing cable bundle using a
cable tie. Leave 10–12" (250–300 mm) slack cable.
12.0 Attach Cover
12.1 Attach the cover to the base.
WARNING
To reduce the risk of hazardous voltage:
Do not stuff excess cables under the wall mount cover.
9
10–12"
(250–300 mm)
