7.5 Using a 3/8" socket, attach the bracket to the wall
using 4 short mounting lag bolts.

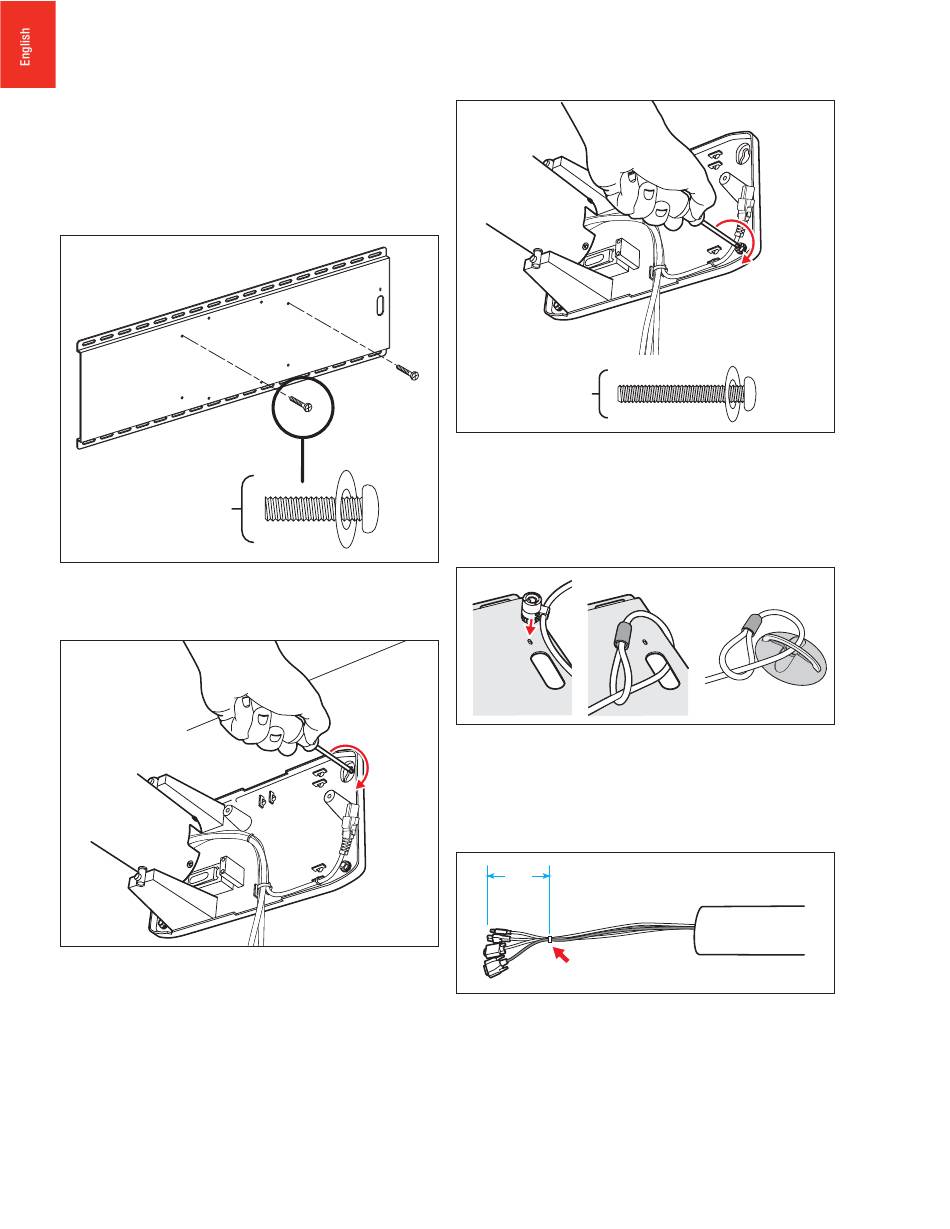

8.0 Attach Wall Mount Base to Bracket
8.1 Using a screwdriver, install the two short mounting
screws with washers in the mounting bracket leaving
1/2" (13 mm) of the screw protruding from the
bracket. Do not install the long (lower) mounting
screws yet.
2X
8.2 Hang the wall mount base on the mounting screws.
Using a screwdriver, tighten the mounting screws
securely.
8.3 Install the long mounting screws through the leveling
screws and tighten securely.
2X
9.0 Install Security Kit (Optional)
9.1 Attach the optional security cable by either locking
it to the mounting bracket security slot (1), looping
it through the mounting bracket (2) or looping it
through the screw-mount anchor point (3).
1 2
Note: If using the screw-mount anchor point, secure the
anchor point before attaching the cable.
9.2 Feed the security lock cable through the arm. Secure
about 6 inches (150 mm) from the end of the existing
cable bundle using a cable tie.
~6"
(150 mm)
8
3M ™ Folding Wall Mount SCPFWMSV2
