3M ™ Folding Wall Mount SCPFWMSV2

1.0 Kit Contents

Installation Instructions
USB Cable 4m
VGA Cable 4m
6x Cable ties
3x M6*25 Screws (for mounting projector)
2x 1-1/2" Lag Bolts
2x ½" Lag Anchors
2x 2-1/2" Lag Bolts
2x 1-1/2" Lag Anchors
SCPFWMSV2 Only
1.8 m PC Audio Cable
3 m PC Audio Cable
Power Supply for Speaker Amp
Power Cord for Speaker Amp
EU to UK power outlet adapter (EU/UK only)
DC Power Cord (power from I/O to Speaker Amp)

2.0 Optional Accessories

™
3M Wall Mount Bracket (78-6969-9962-8)
™
3M Security Kit (78-6969-9961-0)

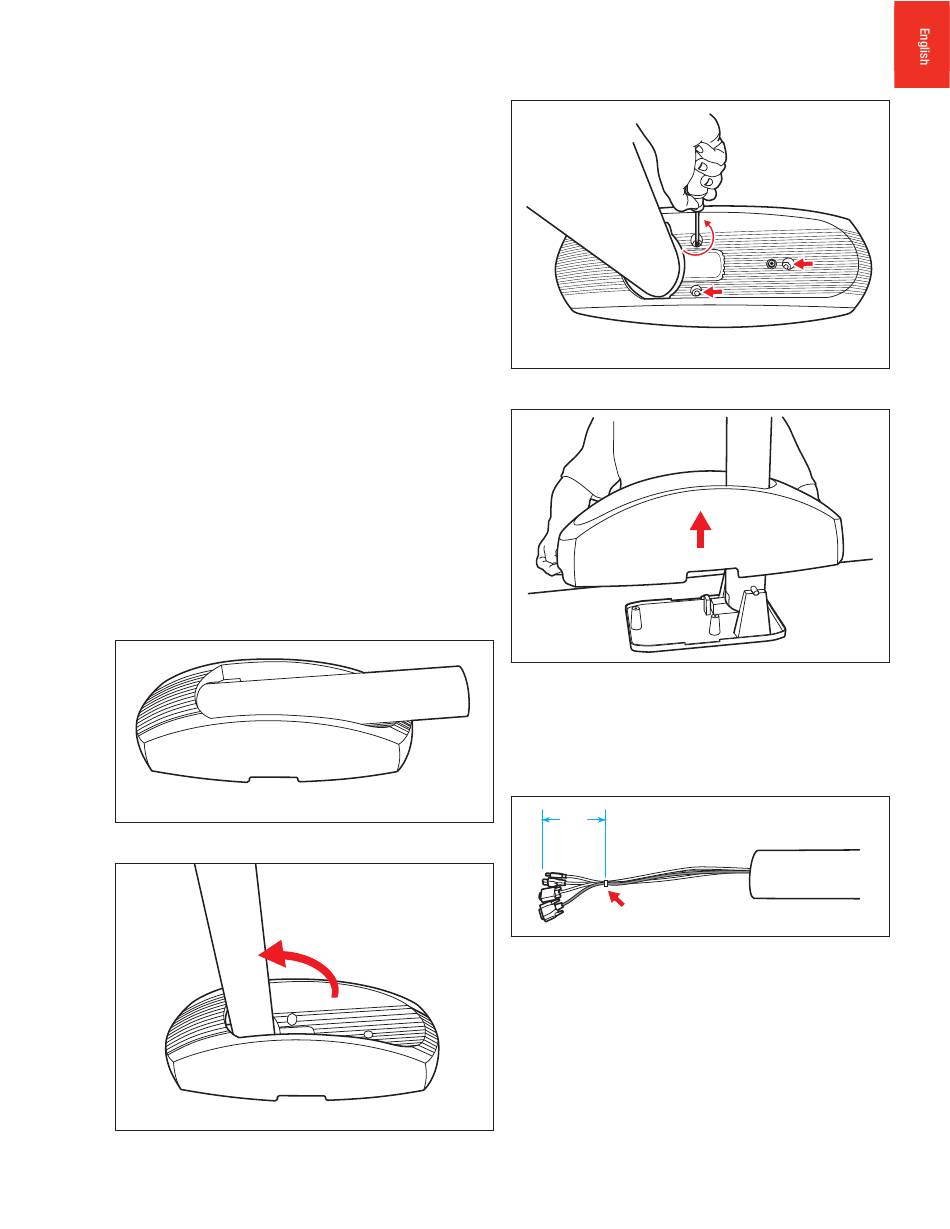

3.0 Remove the Cover
3.1 Remove the Folding Wall Mount from the packaging
and set base-down on a table.
3.2 Swing the arm up until it locks in place.
© 2009 3M. All Rights Reserved.
3.3 Using a Phillips (+) screwdriver, remove the three
screws holding the cover to the base.
3.4 Lift the cover off the base and set aside.
4.0 Route Cables
4.1 Feed the USB, VGA, and optional control cables
through the arm. Align the cable ends and secure
about 6 inches (150 mm) from the end using a
cable tie.
~6"
(150 mm)
Note: The optional control cable is shipped with the
™
3M I/O Module.
