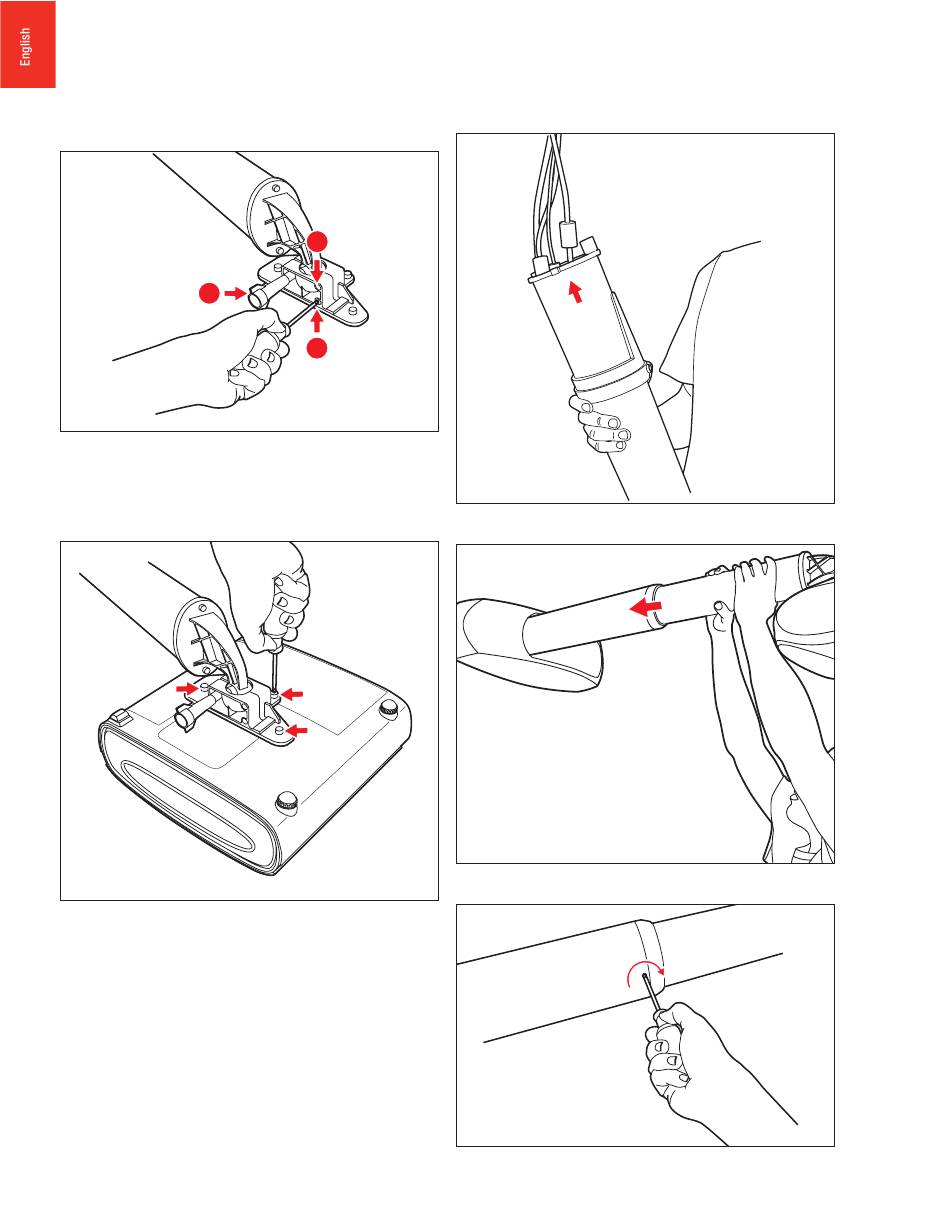

13.0 Attach Projector
13.1 Using two screws and the thumbscrew, attach the
mounting bracket to the end of the arm extension
as shown.
3
13.2 Attach the projector to the mounting bracket with
three screws.
Note: Some models will require two washers per screw to
ensure a tight fit.
14.0 Assemble Arm Extension
14.1
2
1
14.2
14.3
10
3M ™ Folding Wall Mount SCPFWMSV2
Lift the assembly and feed the bundled cables
through the open end of the arm extension.
Insert the arm extension into the arm as shown.
Install the 2 screws into the arm retainer.
