Tylo Prime+ 1814 Bedienungsanleitung Seite 6

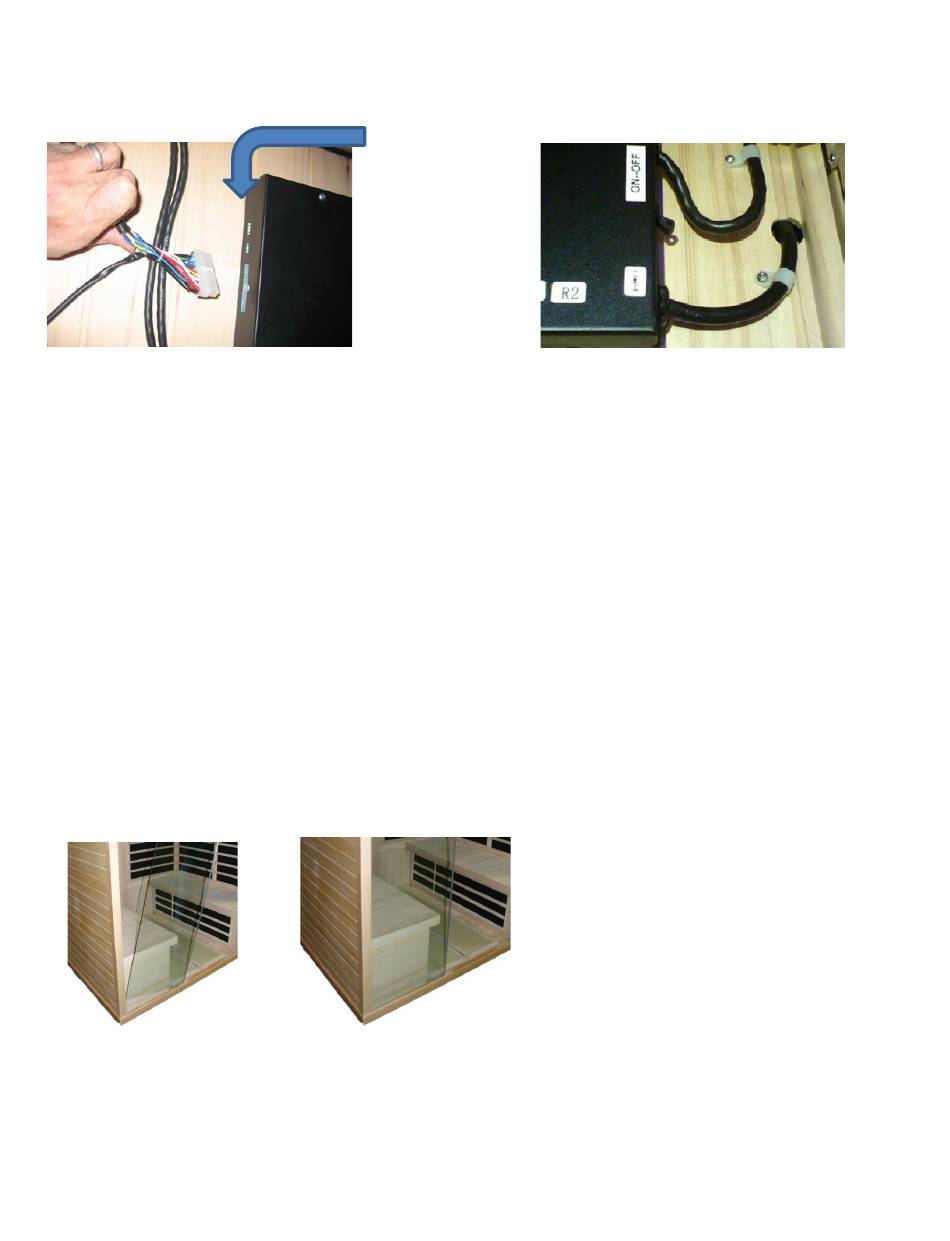

Black main junction box: (2) connections
Locate the black main junction box that is fixed to the internal floor of the sauna.
1 Insert the 24 pin, multicoloured cable plug into the left hand side of the main junction box.
2 The ON/ OFF switch is on the right hand side of the main junction box.
Set the switch as shown above to the ON (EIN) position.
3 Connect the loudspeaker input and output.
Note – Do NOT insert the 230 volt alternating current cable into the socket yet.
Bench:
• Push the bench seat down onto the right and left wall panel.
• Tilt the bench against the back panel as shown below.
• Connect the S-1 electrical connector to the S-1 junction box.
• Fix the cover of the S-1 junction box with 2 Phillips screws.
• Connect the low voltage LED connector to each bench.
Lay the bench down and push it into the right place.
•
Front wall panel:
• Insert the front left glass section into the slot provided.
(Note: The seal should be in the middle and on the inside of the sauna.)
• Two adults are required to push the right fixed component into the front right hand slot.
See point 3 -
Input/output
Page 6
