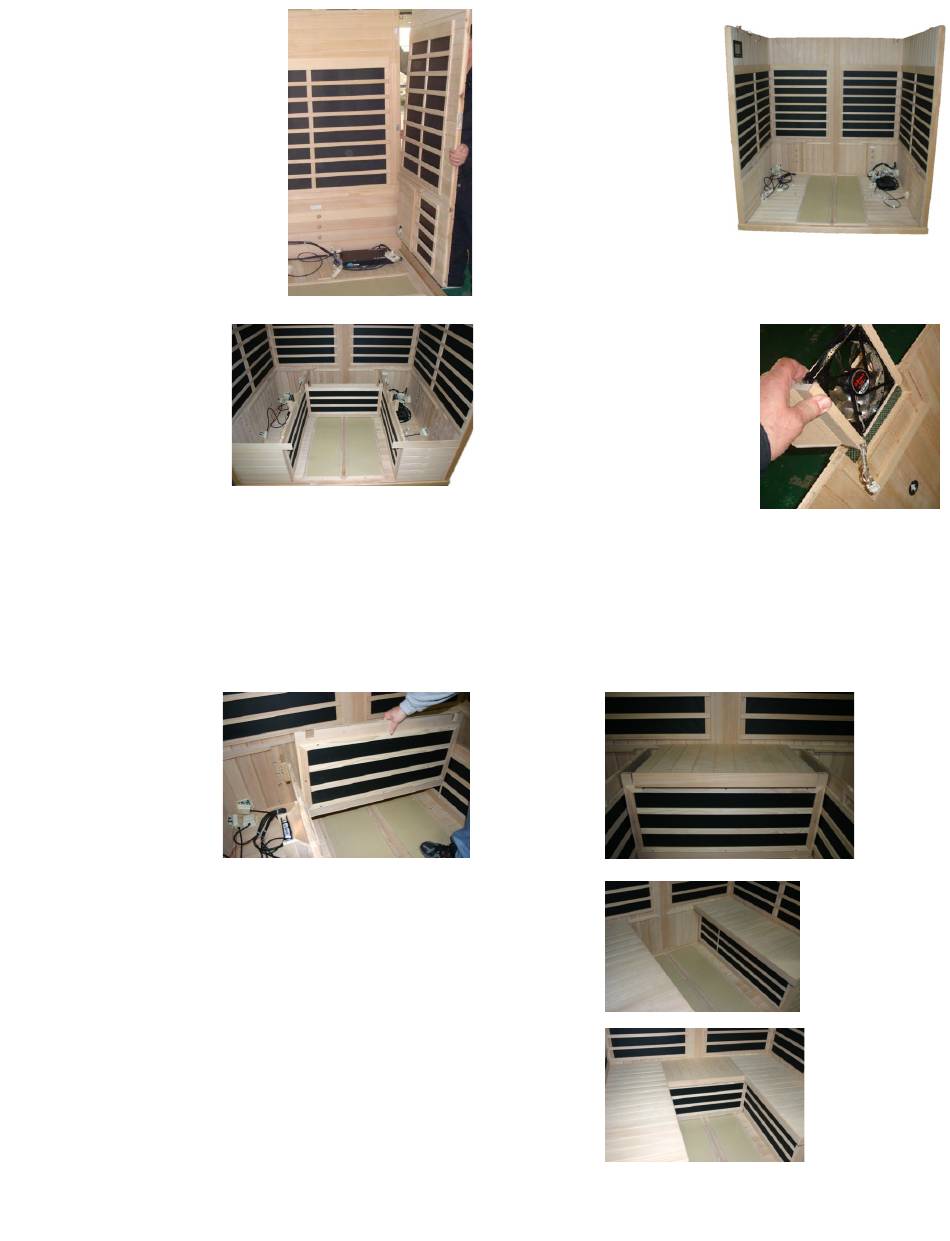

Right wall panel:
• Place the right wall
panel into the right
hand slot in the floor
panel.
• Attach the back wall
panel to the right wall
panel by lifting the
right panel and
pushing it into the
retaining bracket on
the back panel.
Bench valances:
Insert the bench
valances between the
back and side wall
panel sections.
Connections:
• Connect all connections inside the valance area.
• All letters and numbers must match. See the pictures on page 3 for an explanation of this.
• Note – this sauna model includes an optional third bench.
• Note – the 3rd bench doesn't heat up the valance or the top of the bench but offers additional
facilities for sitting or lying down if required.
• Note: When using two benches the inside
of your sauna should look like this.
• When using 3 benches the inside of your
sauna should look like this.
Left wall panel:
• Place the left
panel into the
left hand slot in
the floor panel.
• Attach the back
wall panel to the
left wall panel by
lifting the left
panel and
pushing it into
the retaining bracket on the back panel.
Slide the fan component
( 1) into the retaining
Box
device on the bench
valance.
Connect the white
connector on the black
junction box to the white
connector on the fan.
Secure both valances:
