Connection with the mains

Connect the device to the mains with the power-plug.
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum
fault current of 30 mA.
Caution: A maximum of 15 LED Panels 60 x 60cm, or 30 LED Panels 60 x 30cm may be used without a
booster.

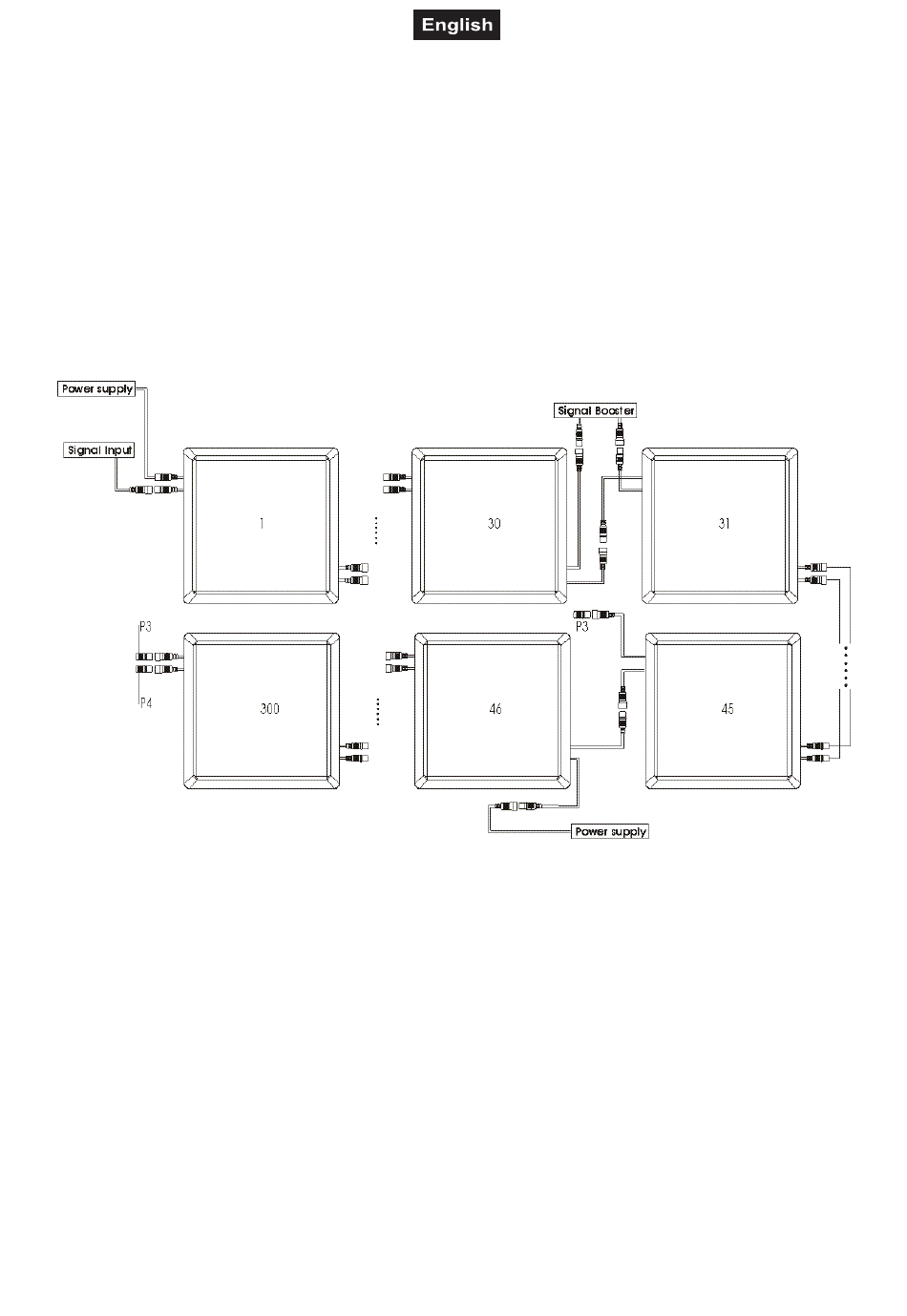

Connection of the devices

P3 = 2-pin power supply lead socket
Ω
P4 = 120 . termination plug (end piece)
Attention: A booster must be installed after every 15 LED Panels 60 x 60cm, or 30 LED Panels 60 x 30cm
for signal enforcement.

OPERATION

After you connected the effect to the mains, the EUROLITE LED SB-1 Signal Booster starts running.
