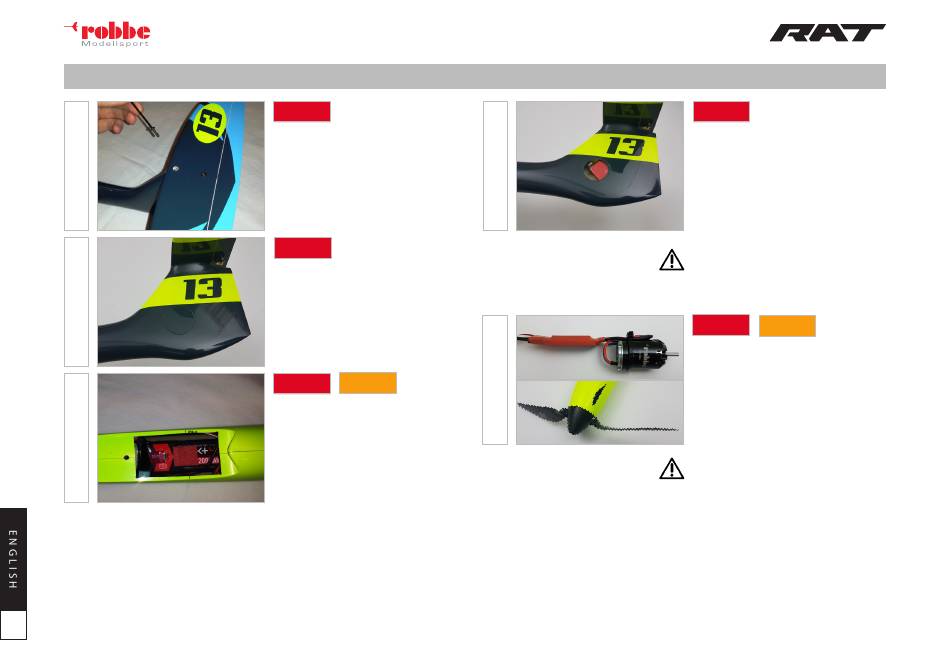

ROBBE RAT Bedienungsanleitung Seite 14

09
11
13
14
Instructions and User Manual
F U S E L A G E
ARF
Hook the linkage in the elevator. Screw the elevator
with the two countersunk screws M3x12.
Secure the rudder surface with a strip of adhesive
tape on both sides so that it is exactly in neutral
position.
ARF
Fix the slot cover with TESA film or UHU POR.
PNP
ARF
Fixieren Sie Akku und Regler im Rumpf mit Klett-
streifen. Der Empfänger wird hinten im Rumpf
(hinter dem Akku) platziert.
10
12
ARF
Push the servo in the housing as far back as pos-
sible. Then apply 5-min epoxy on the surface just
below the servo opening. Now push the servo over
the glue as far forward as possible so that the servo
horn does not touch the front side fin spar. Check
the neutral position of the rudder surface again
and then fix the servo until the glue has cured.
Make sure that the servo is perfectly glued to
the fuselage! A faulty gluing can represent a
safety risk and cause personal injury as well as
property damage, and the linkage must also
form a parallel line to the servo in order to
ensure the smoothest possible and most
precise linkage! This can significantly influence
the later flight characteristics.
ARF
PNP
Due to the short fuselage, we recommend soldering
motor and regulator cables as shown. The solder joints
are then insulated with shrink tubing and fixed in a
space-saving way with a cable tie on the motor, so that
the controller ideally lies directly behind the motor.
Thread the motor and regulator through the fuselage
and fix the motor using the enclosed M3x6 pan head
screws (use Loctite). Mount spinner and propeller.
Ensure that all parts are properly and firmly seated
rotating components! A deficient
Installation can pose a safety risk
and cause personal and property damage!
